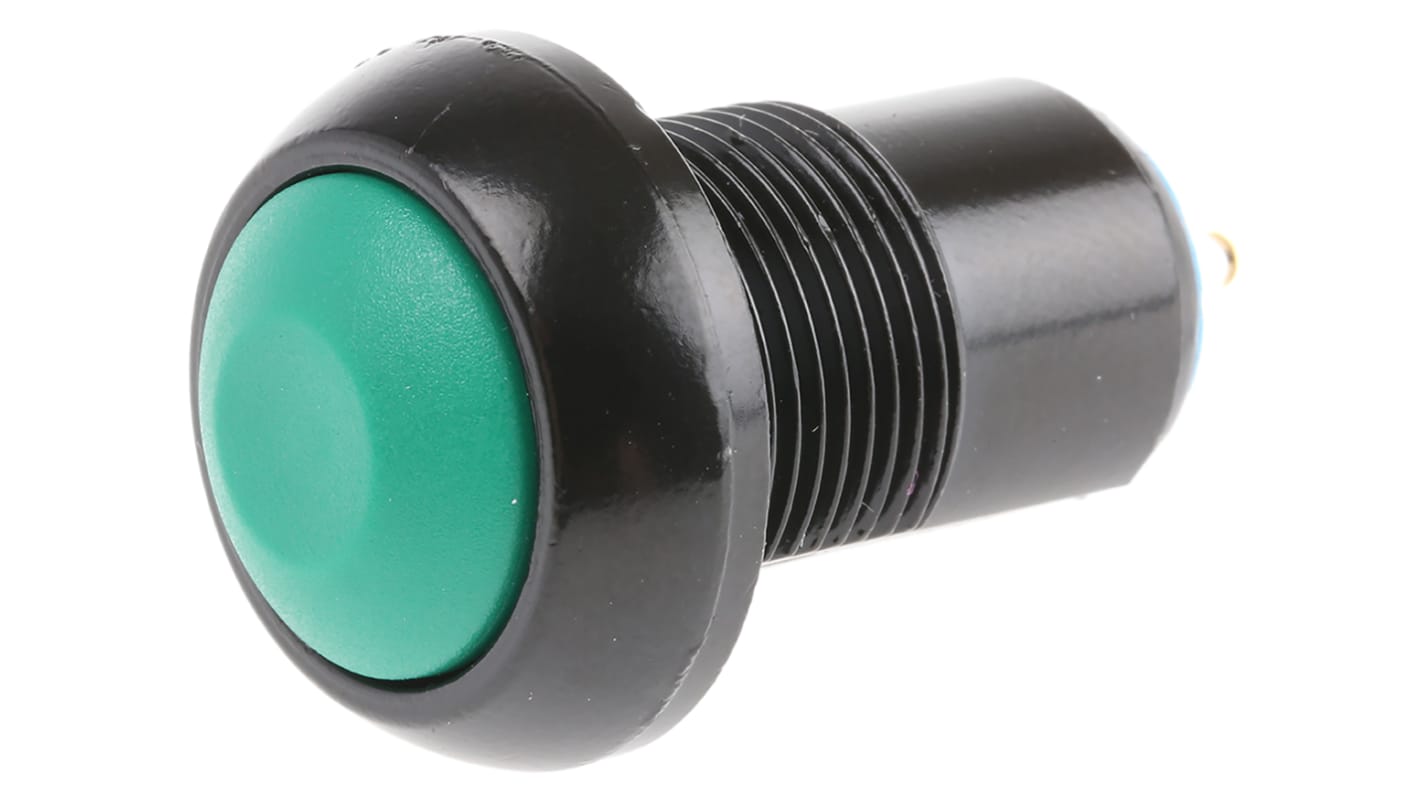

APEM IP Series Push Button Switch, Latching, Panel, 12.9 mm Cutout, SPST, IP67, 24 V dc 125 V ac
- RS Stock No.:
- 498-0821
- Distrelec Article No.:
- 135-52-858
- Mfr. Part No.:
- IPR1SAD3
- Brand:
- APEM
Bulk discount available
Subtotal (1 unit)*
£18.17
(exc. VAT)
£21.80
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 311 unit(s) ready to ship
- Plus 92 unit(s) ready to ship from another location
- Plus 200 unit(s) shipping from 15 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £18.17 |
| 10 - 49 | £16.35 |
| 50 - 99 | £13.63 |
| 100 - 249 | £12.72 |
| 250 + | £11.64 |
*price indicative
- RS Stock No.:
- 498-0821
- Distrelec Article No.:
- 135-52-858
- Mfr. Part No.:
- IPR1SAD3
- Brand:
- APEM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | APEM | |
| Product Type | Push Button Switch | |
| Actuator Colour | Green | |
| Switch Operation | Latching | |
| Illuminated | No | |
| Panel Cutout Size | 12.9 mm | |
| Series | IP | |
| Mount Type | Panel | |
| Contact Configuration | SPST | |
| Terminal Type | Solder | |
| IP Rating | IP67 | |
| Actuator Style | Plunger | |
| Contact DC Voltage | 24V dc | |
| Minimum Operating Temperature | -40°C | |
| Contact AC Voltage | 125V ac | |
| Maximum Operating Temperature | 85°C | |
| Switch Configuration | Off-On | |
| Switch Contact Current | 5 A | |
| Width | 12.00 mm | |
| Standards/Approvals | RoHS | |
| Height | 16.00mm | |
| Select all | ||
|---|---|---|
Brand APEM | ||
Product Type Push Button Switch | ||
Actuator Colour Green | ||
Switch Operation Latching | ||
Illuminated No | ||
Panel Cutout Size 12.9 mm | ||
Series IP | ||
Mount Type Panel | ||
Contact Configuration SPST | ||
Terminal Type Solder | ||
IP Rating IP67 | ||
Actuator Style Plunger | ||
Contact DC Voltage 24V dc | ||
Minimum Operating Temperature -40°C | ||
Contact AC Voltage 125V ac | ||
Maximum Operating Temperature 85°C | ||
Switch Configuration Off-On | ||
Switch Contact Current 5 A | ||
Width 12.00 mm | ||
Standards/Approvals RoHS | ||
Height 16.00mm | ||
- COO (Country of Origin):
- FR
ON/OFF latching action pushbutton switches IP 67 Series IP – lug terminals, ø 12mm bushing
For harsh environments.
Resistant to salt spray.
Excellent tactile feedback.
Available in round or square version.
Standards
EN 50102 - IEC 512-4 - IEC 512-6
