    Otto Push Button Switch, Momentary, Panel Mount, DPDT, 28V dc

    Otto
    RS Stock No.:
    433-3203
    Mfr. Part No.:
    P9-213122
    Brand:
    Otto
    View all Push Button Switches
    285 In stock - FREE next working day delivery available
    10 available from Europe for delivery within 1 working day(s).
    Add to Basket
    Units

    Added

    Price Each

    £15.62

    (exc. VAT)

    £18.74

    (inc. VAT)

    UnitsPer unit
    1 - 49£15.62
    50 - 99£14.10
    100 - 249£13.44
    250 - 499£12.98
    500 +£12.55
    RS Stock No.:
    433-3203
    Mfr. Part No.:
    P9-213122
    Brand:
    Otto

    Technical Reference


    Legislation and Compliance


    Product Details

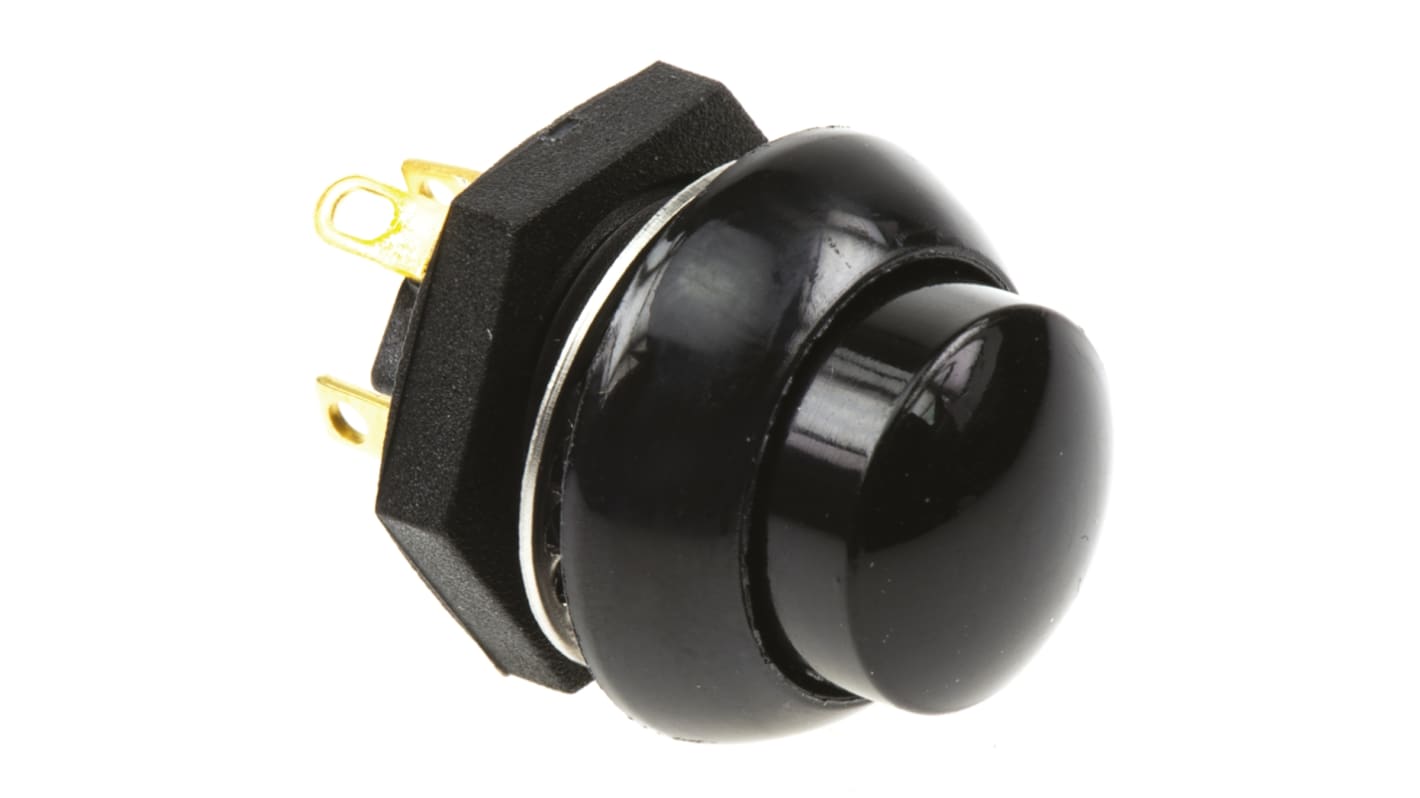

    Otto P9 Series - Black Body Push Button Switch


    Momentary action P9 series push button switches feature a contoured dome style push button in either a low button profile or a high button profile with a threaded case for hex nut mounting and a short behind panel depth of approximately 12mm. At a full rated load of 5 amps resistive or 3 amps inductive the P9 life is approximately one million mechanical operations with an electrical life of 25,000 operations. The P9 series has a low contact resistance for low level switching capability as well as being a precision designed switch for use in panels, control grips, computers, instruments, heavy equipment and other demanding applications where attractive rugged push button switches are required.

    Black bezel and body with a choice of flush and raised dome button cap styles
    Choice of button cap colours
    Sealed to IP64
    Withstands extreme shock & vibration
    Positive tactile feedback
    15/32-32 threaded body
    Moistureproof and dust tight to IP64

    Note

    For white body versions see stock number 737-3787 typically.
    For panel sealing use gasket stock number 737-3863.

    Approvals

    UL; CSA

    Specifications

    AttributeValue
    Switch OperationMomentary
    IlluminatedNo
    Mounting TypePanel Mount
    Push Button StyleDome
    Contact ConfigurationDPDT
    Push Button ColourBlack
    Contact MaterialGold Plated Silver Alloy
    Voltage Rating28V dc
    Contact Current Rating5 A @ 28 V dc
    Terminal TypeSolder
    Manufacturer Part No.P9-213122
