Schneider Electric Harmony XB4 Series Illuminated Push Button Complete Unit, Hole, 22 mm Cutout Blue, 1 NO, IP66
- RS Stock No.:
- 288-2279
- Mfr. Part No.:
- XB4BP683BM5GEX
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£251.27
(exc. VAT)
£301.52
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 1 unit(s) shipping from 19 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £251.27 |
*price indicative
- RS Stock No.:
- 288-2279
- Mfr. Part No.:
- XB4BP683BM5GEX
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Push Button Complete Unit | |
| Illuminated | Yes | |
| Series | Harmony XB4 | |
| Cutout Diameter | 22mm | |
| Mount Type | Hole | |
| Push Button Colour | Blue | |
| Contact Configuration | 1 NO | |
| Terminal Type | Screw Terminal | |
| Push Button Shape | Round | |
| IP Rating | IP66 | |
| Push Button Diameter | 22mm | |
| Minimum Operating Temperature | -20°C | |
| Illumination Voltage | 24 V ac/dc | |
| Maximum Operating Temperature | 80°C | |
| Hazardous Area Certification | ATEX | |
| Standards/Approvals | UL 60079-31, UL 60079-18, EN/IEC 60079-18:2009, CSA C22.2 Nr. 213, IEC 60079-7:2009, IEC 60079-31:2009, UL 60079-0, ANSI/ISA 12.12.01, IEC 60079-0:2009 | |
| Body Material | Chrome Plated Metal | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Push Button Complete Unit | ||
Illuminated Yes | ||
Series Harmony XB4 | ||
Cutout Diameter 22mm | ||
Mount Type Hole | ||
Push Button Colour Blue | ||
Contact Configuration 1 NO | ||
Terminal Type Screw Terminal | ||
Push Button Shape Round | ||
IP Rating IP66 | ||
Push Button Diameter 22mm | ||
Minimum Operating Temperature -20°C | ||
Illumination Voltage 24 V ac/dc | ||
Maximum Operating Temperature 80°C | ||
Hazardous Area Certification ATEX | ||
Standards/Approvals UL 60079-31, UL 60079-18, EN/IEC 60079-18:2009, CSA C22.2 Nr. 213, IEC 60079-7:2009, IEC 60079-31:2009, UL 60079-0, ANSI/ISA 12.12.01, IEC 60079-0:2009 | ||
Body Material Chrome Plated Metal | ||
- COO (Country of Origin):
- FR

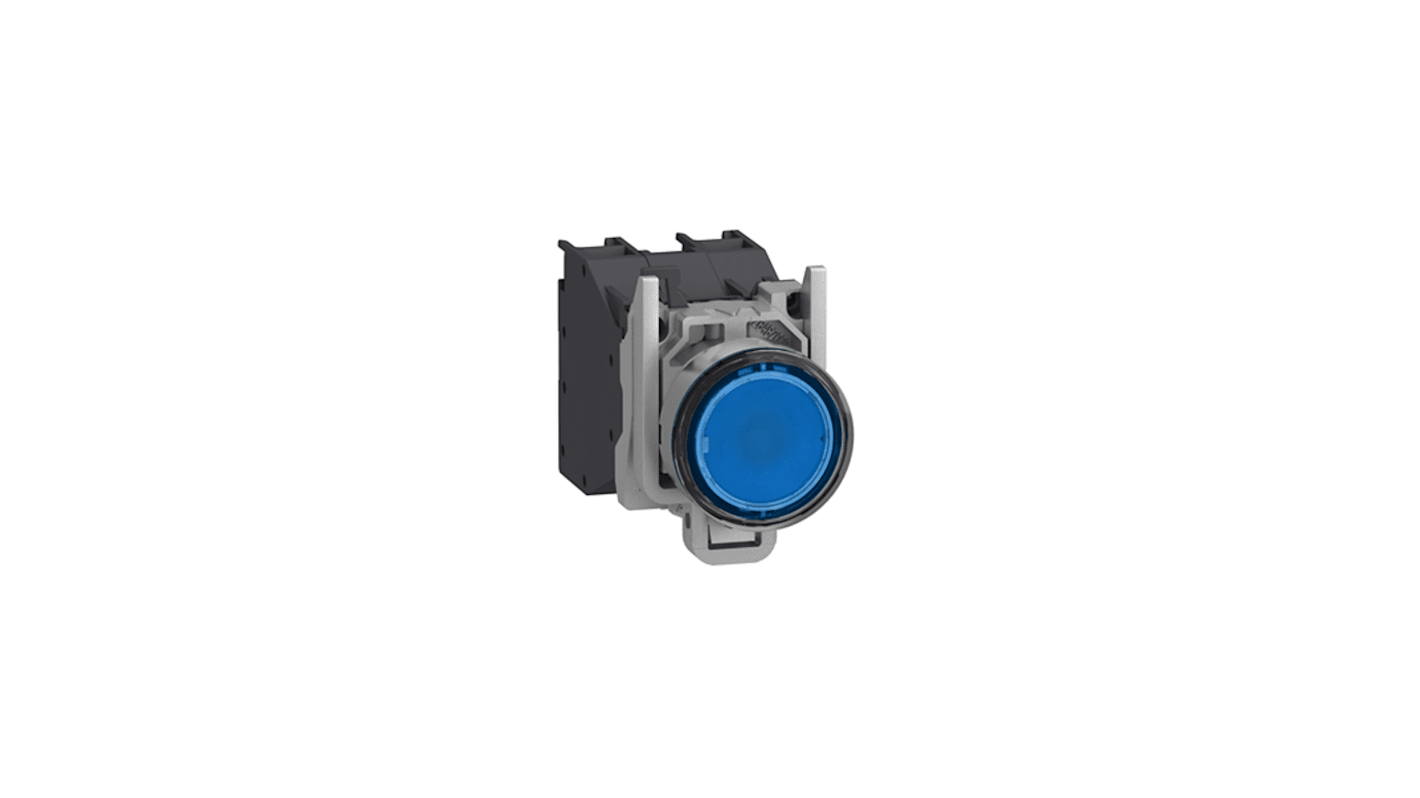

The Schneider Electric Complete illuminated push button with a blue flush design. It features a spring return mechanism, making it easy to operate. With a robust Chromium plated metal bezel and Zamak fixing collar, this push button is durable and reliable for various applications. It is designed for use in hazardous environments with its ATEX D certification. The integral LED light source ensures steady illumination, making it suitable for industrial settings.
Robust Chromium plated metal bezel for durability
Zamak fixing collar for reliable mounting
Spring return mechanism for easy operation
Atex D certified for safe use in hazardous environments
Integral LED light source for steady illumination
