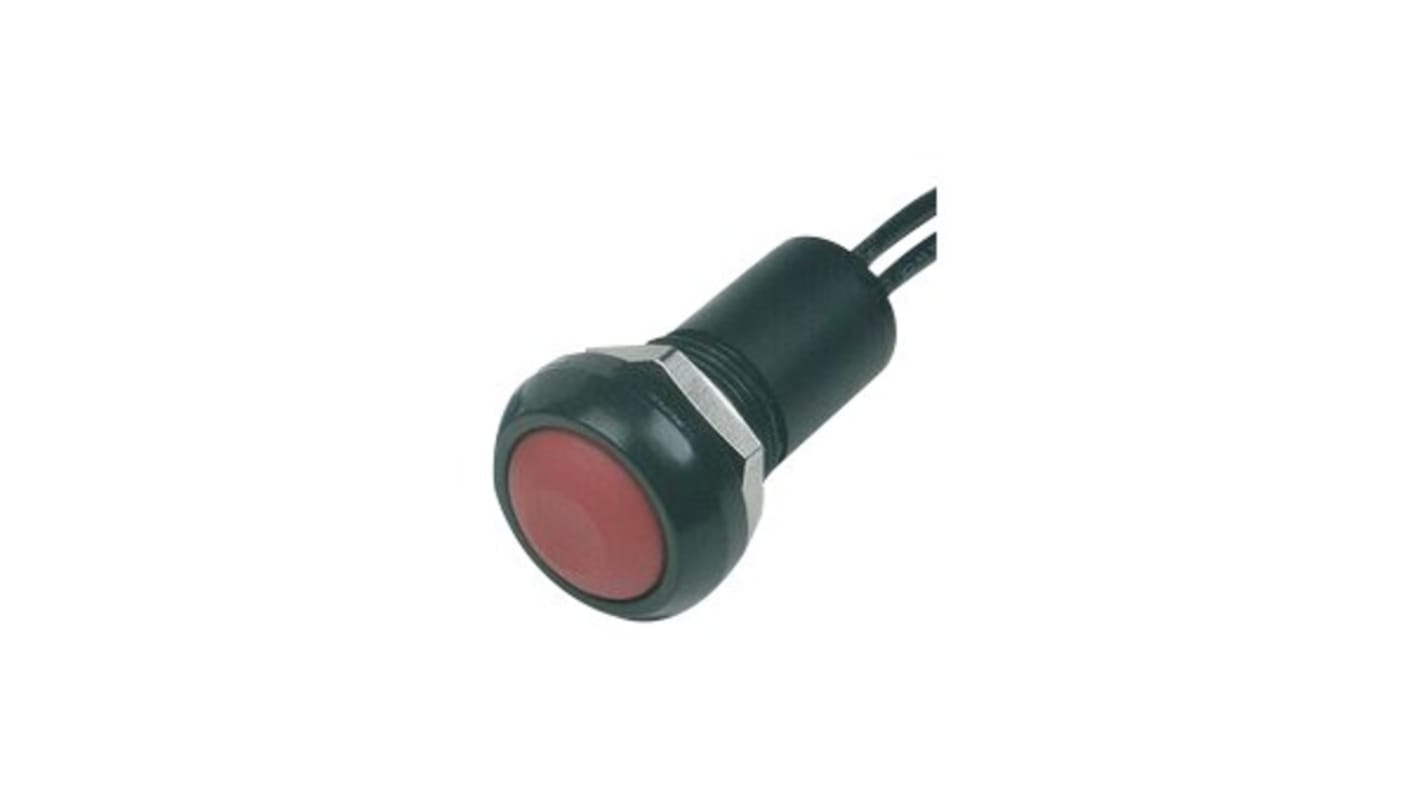

APEM IP Series Push Button Switch, Momentary, Panel, 13.6 mm Cutout, L0S: Super Red, L0Y: Yellow, L0B: Blue, L0G: Green,
- RS Stock No.:
- 287-3693
- Mfr. Part No.:
- IPR1FAD6
- Brand:
- APEM
Bulk discount available
Subtotal (1 unit)*
£21.59
(exc. VAT)
£25.91
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 76 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £21.59 |
| 10 - 24 | £20.71 |
| 25 - 49 | £19.93 |
| 50 - 99 | £19.19 |
| 100 + | £18.50 |
*price indicative
- RS Stock No.:
- 287-3693
- Mfr. Part No.:
- IPR1FAD6
- Brand:
- APEM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | APEM | |
| Actuator Colour | Red | |
| Product Type | Push Button Switch | |
| Switch Operation | Momentary | |
| Illuminated | No | |
| Panel Cutout Size | 13.6 mm | |
| Series | IP | |
| Mount Type | Panel | |
| Terminal Type | Standard | |
| LED Colour | L0S: Super Red, L0Y: Yellow, L0B: Blue, L0G: Green, L0W: White | |
| IP Rating | IP67 | |
| Contact DC Voltage | 48V | |
| Actuator Style | Round | |
| Contact AC Voltage | 48V | |
| Minimum Operating Temperature | -40°C | |
| Switch Configuration | Off-On | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | UL | |
| Switch Contact Current | 0.3 A | |
| Select all | ||
|---|---|---|
Brand APEM | ||
Actuator Colour Red | ||
Product Type Push Button Switch | ||
Switch Operation Momentary | ||
Illuminated No | ||
Panel Cutout Size 13.6 mm | ||
Series IP | ||
Mount Type Panel | ||
Terminal Type Standard | ||
LED Colour L0S: Super Red, L0Y: Yellow, L0B: Blue, L0G: Green, L0W: White | ||
IP Rating IP67 | ||
Contact DC Voltage 48V | ||
Actuator Style Round | ||
Contact AC Voltage 48V | ||
Minimum Operating Temperature -40°C | ||
Switch Configuration Off-On | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals UL | ||
Switch Contact Current 0.3 A | ||
- COO (Country of Origin):
- FR
The APEM high-quality panel switch designed for latching action, featuring an illuminated or non-illuminated compact flat round actuator for optional marking. Sealed to IP67, this switch is reliable and durable for various applications.
Distinctive latching action for secure operation
Compact flat round actuator with optional illumination for easy identification
Sealed to IP67 for protection against dust and water
High-quality construction for durability and longevity
Silver and gold plated contacts for reliable performance
