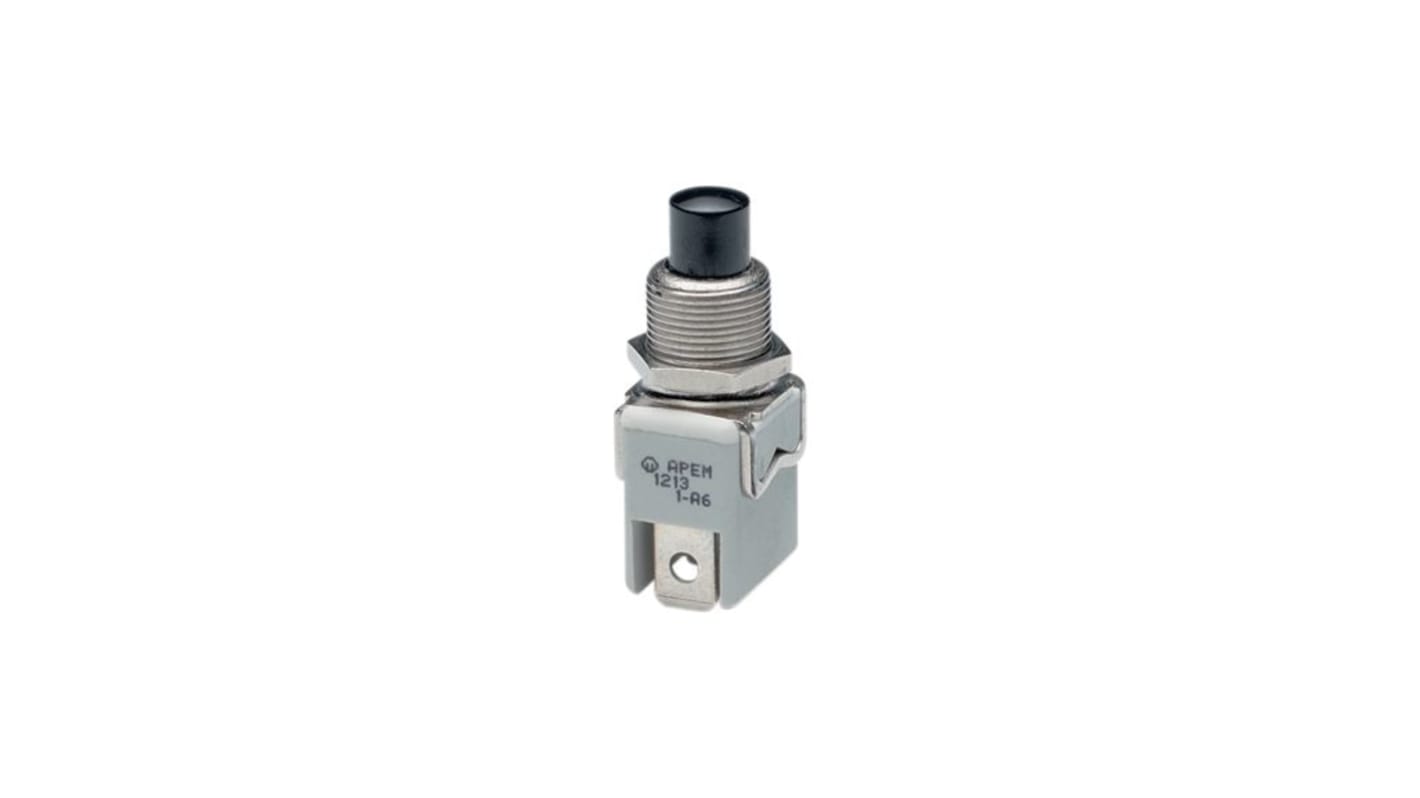

APEM 1200 Series Push Button Switch, Momentary, Panel, 12.2 mm Cutout, NO, 24 V 250 V
- RS Stock No.:
- 283-5360
- Distrelec Article No.:
- 135-09-221
- Mfr. Part No.:
- 1213A-2
- Brand:
- APEM
Subtotal (1 unit)*
£5.18
(exc. VAT)
£6.22
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 4 unit(s) shipping from 23 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £5.18 |
*price indicative
- RS Stock No.:
- 283-5360
- Distrelec Article No.:
- 135-09-221
- Mfr. Part No.:
- 1213A-2
- Brand:
- APEM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | APEM | |
| Switch Operation | Momentary | |
| Product Type | Push Button Switch | |
| Actuator Colour | Black | |
| Illuminated | No | |
| Panel Cutout Size | 12.2 mm | |
| Series | 1200 | |
| Mount Type | Panel | |
| Contact Configuration | NO | |
| Terminal Type | Blade | |
| Contact DC Voltage | 24V | |
| Actuator Style | Round | |
| Contact AC Voltage | 250V | |
| Minimum Operating Temperature | -20°C | |
| Switch Configuration | Off-On | |
| Maximum Operating Temperature | 55°C | |
| Switch Contact Current | 8 A | |
| Standards/Approvals | UL, RoHS, REACH, NF, CSA | |
| Legend | Blank | |
| Select all | ||
|---|---|---|
Brand APEM | ||
Switch Operation Momentary | ||
Product Type Push Button Switch | ||
Actuator Colour Black | ||
Illuminated No | ||
Panel Cutout Size 12.2 mm | ||
Series 1200 | ||
Mount Type Panel | ||
Contact Configuration NO | ||
Terminal Type Blade | ||
Contact DC Voltage 24V | ||
Actuator Style Round | ||
Contact AC Voltage 250V | ||
Minimum Operating Temperature -20°C | ||
Switch Configuration Off-On | ||
Maximum Operating Temperature 55°C | ||
Switch Contact Current 8 A | ||
Standards/Approvals UL, RoHS, REACH, NF, CSA | ||
Legend Blank | ||
- COO (Country of Origin):
- FR
The 1200 series momentary pushbutton switch round plunger is a reliable and efficient switch suitable for various applications. With butt action contacts and double break features, this switch is a durable option for electrical circuits. It is NF, UL, and CSA approved, ensuring safety and quality standards are met. The silver contacts offer excellent conductivity, while the polyamide case and plunger provide durability.
Butt action contacts for reliable switching performance
Silver contacts for excellent conductivity
Polyamide case and plunger for durability
High electrical ratings for versatile use
