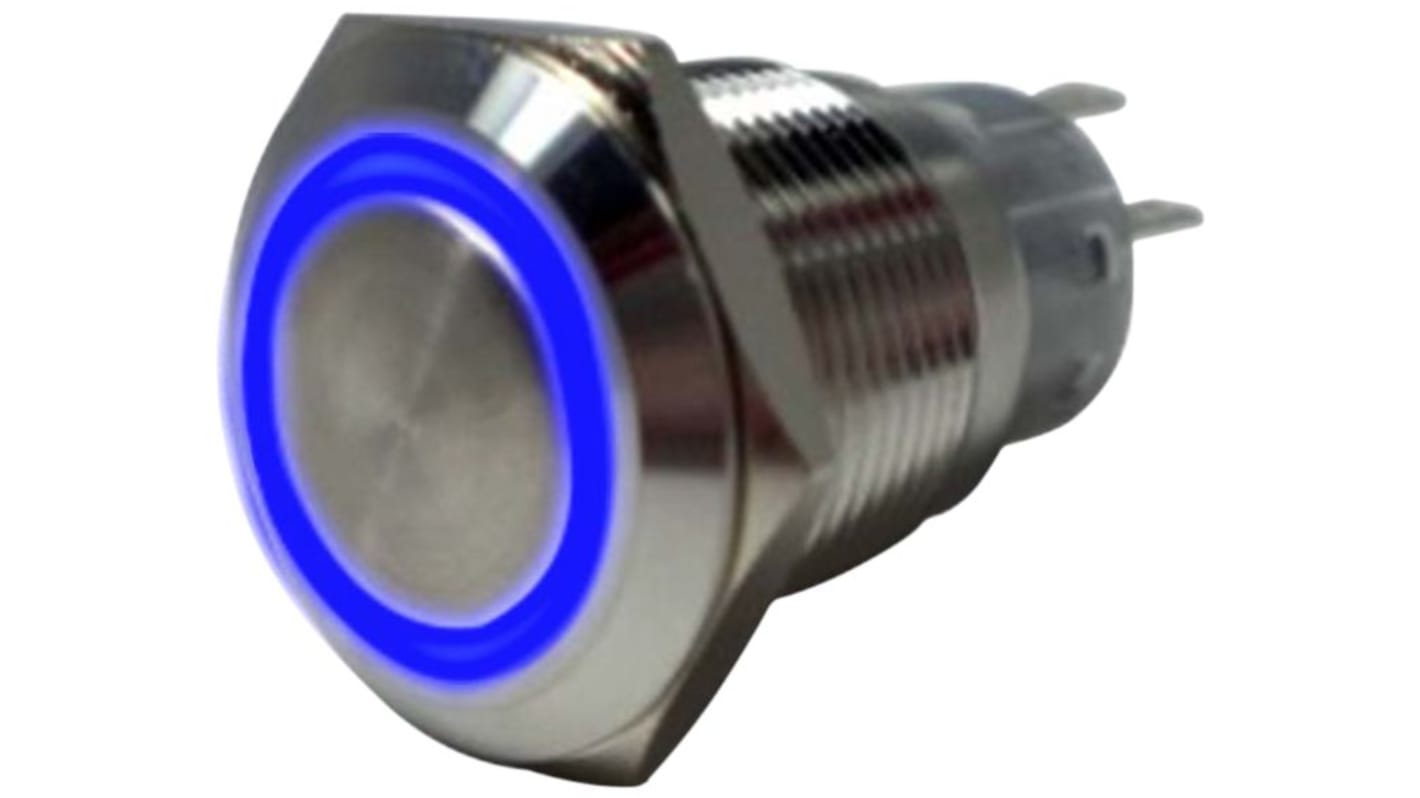

RND RND 210 Series Illuminated Vandal Proof Push Button Switch, On-On, Panel, 19 mm Cutout, 1 NO/1 NC, Blue LED, IP67
- RS Stock No.:
- 283-2554
- Distrelec Article No.:
- 301-01-427
- Mfr. Part No.:
- RND 210-00401
- Brand:
- RND
Subtotal (1 unit)*
£14.53
(exc. VAT)
£17.44
(inc. VAT)
FREE delivery for orders over £60.00
Last RS stock
- Final 188 unit(s), ready to ship from another location
Units | Per unit |
|---|---|
| 1 + | £14.53 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£17.73
(exc. VAT)
£21.28
(inc. VAT)
- RS Stock No.:
- 283-2554
- Distrelec Article No.:
- 301-01-427
- Mfr. Part No.:
- RND 210-00401
- Brand:
- RND
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RND | |
| Actuator Colour | Silver | |
| Switch Operation | On-On | |
| Product Type | Vandal Proof Push Button Switch | |
| Illuminated | Yes | |
| Series | RND 210 | |
| Panel Cutout Size | 19 mm | |
| Mount Type | Panel | |
| Contact Configuration | 1 NO/1 NC | |
| LED Colour | Blue | |
| Terminal Type | Blade | |
| IP Rating | IP67 | |
| Actuator Style | Round | |
| Contact AC Voltage | 250V ac | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 55°C | |
| Switch Configuration | On-(On) | |
| Switch Contact Current | 5A | |
| Standards/Approvals | REACH, RoHS | |
| Length | 39.5mm | |
| Height | 40mm | |
| Legend | Ring | |
| Select all | ||
|---|---|---|
Brand RND | ||
Actuator Colour Silver | ||
Switch Operation On-On | ||
Product Type Vandal Proof Push Button Switch | ||
Illuminated Yes | ||
Series RND 210 | ||
Panel Cutout Size 19 mm | ||
Mount Type Panel | ||
Contact Configuration 1 NO/1 NC | ||
LED Colour Blue | ||
Terminal Type Blade | ||
IP Rating IP67 | ||
Actuator Style Round | ||
Contact AC Voltage 250V ac | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 55°C | ||
Switch Configuration On-(On) | ||
Switch Contact Current 5A | ||
Standards/Approvals REACH, RoHS | ||
Length 39.5mm | ||
Height 40mm | ||
Legend Ring | ||
- COO (Country of Origin):
- TW
The Illuminated Anti Vandal Pushbutton Switch features a 19 mm bushing. With a contact rating of 5A at 250VAC. Its electrical life spans up to 50,000 cycles at full load. This anti vandal switch has silver alloy contacts housed in a PBT base and a nickel plated brass nut.
IP67 protection
Momentary Function type switching
