Schneider Electric Harmony Series Push Button Switch, Spring Return, Panel, 22 mm Cutout, 1 NO, IP66, IP67, 600 V dc 240
- RS Stock No.:
- 276-2546
- Mfr. Part No.:
- XB5AA51C0
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£14.02
(exc. VAT)
£16.82
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 24 unit(s) shipping from 16 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £14.02 |
*price indicative
- RS Stock No.:
- 276-2546
- Mfr. Part No.:
- XB5AA51C0
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Switch Operation | Spring Return | |
| Product Type | Push Button Switch | |
| Actuator Colour | Yellow | |
| Illuminated | No | |
| Series | Harmony | |
| Panel Cutout Size | 22 mm | |
| Mount Type | Panel | |
| Contact Configuration | 1 NO | |
| Terminal Type | Screw | |
| IP Rating | IP66, IP67 | |
| Actuator Style | Button | |
| Contact DC Voltage | 600V dc | |
| Minimum Operating Temperature | -40°C | |
| Contact AC Voltage | 240V ac | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | RoHS, REACH, CSA | |
| Length | 52mm | |
| Height | 42mm | |
| Width | 30 mm | |
| Switch Contact Current | 3 A | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Switch Operation Spring Return | ||
Product Type Push Button Switch | ||
Actuator Colour Yellow | ||
Illuminated No | ||
Series Harmony | ||
Panel Cutout Size 22 mm | ||
Mount Type Panel | ||
Contact Configuration 1 NO | ||
Terminal Type Screw | ||
IP Rating IP66, IP67 | ||
Actuator Style Button | ||
Contact DC Voltage 600V dc | ||
Minimum Operating Temperature -40°C | ||
Contact AC Voltage 240V ac | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals RoHS, REACH, CSA | ||
Length 52mm | ||
Height 42mm | ||
Width 30 mm | ||
Switch Contact Current 3 A | ||
RoHS Status: Exempt
- COO (Country of Origin):
- FR

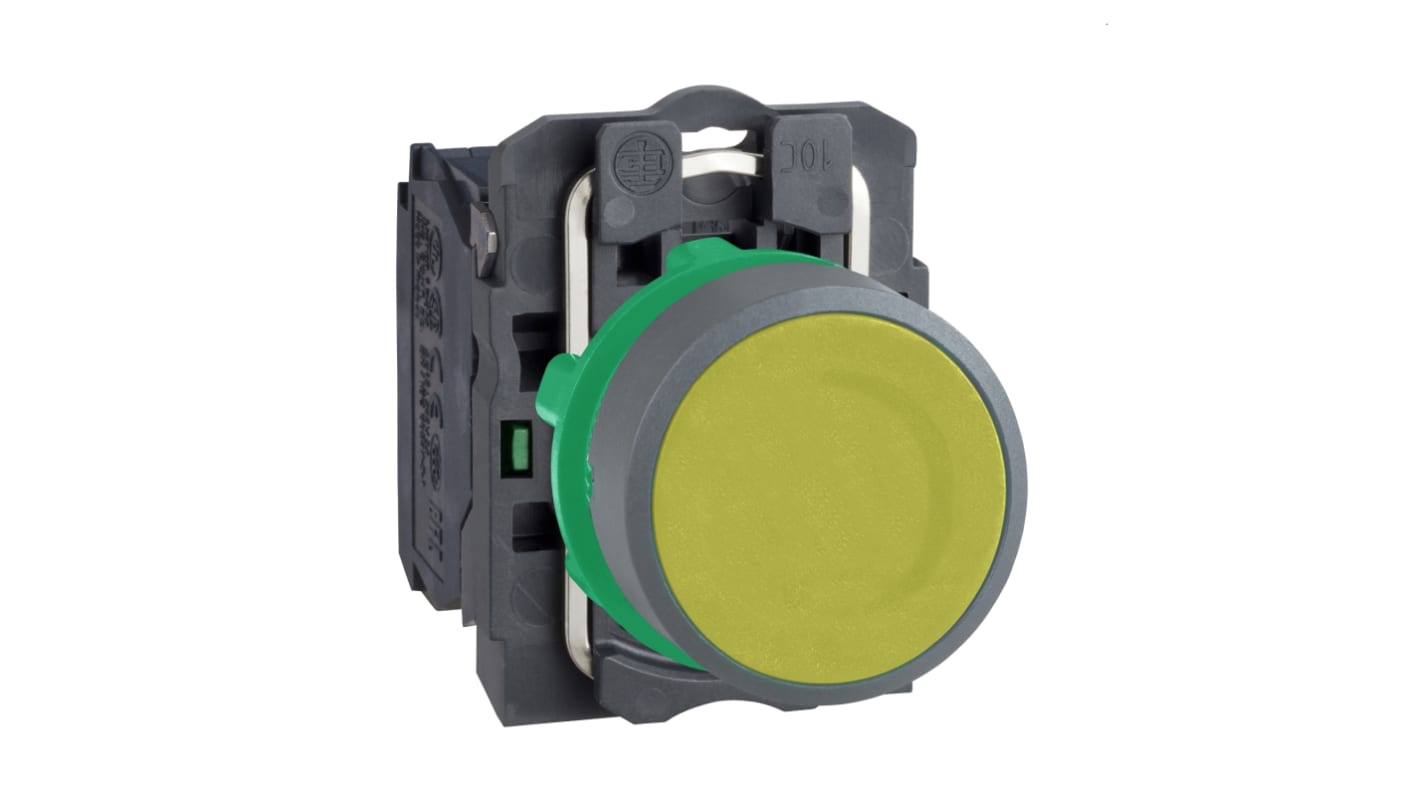

The Schneider Electric Push Button featuring a yellow flush button with a grey bezel, designed for 22mm mounting. With a spring return mechanism, it ensures precise and responsive control. Equipped with 1 normally open contact, this push button offers flexibility for various applications. The unmarked design allows for customization according to specific control needs.
Mercury free
RoHS compliant
Toxic heavy metal free
IP66 and IP67 degree of protection
