Schneider Electric XB5 Series Push Button Switch, Spring Return, Panel, 22.5 mm Cutout, SPDT, IP67, IP66, 600 V 600 V
- RS Stock No.:
- 276-2534
- Mfr. Part No.:
- XB5AA15C0
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£19.93
(exc. VAT)
£23.92
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 09 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £19.93 |
*price indicative
- RS Stock No.:
- 276-2534
- Mfr. Part No.:
- XB5AA15C0
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Switch Operation | Spring Return | |
| Product Type | Push Button Switch | |
| Illuminated | No | |
| Panel Cutout Size | 22.5 mm | |
| Series | XB5 | |
| Mount Type | Panel | |
| Contact Configuration | SPDT | |
| Terminal Type | Screw | |
| IP Rating | IP67, IP66 | |
| Contact AC Voltage | 600V | |
| Contact DC Voltage | 600V | |
| Minimum Operating Temperature | -40°C | |
| Actuator Style | Button | |
| Maximum Operating Temperature | 70°C | |
| Height | 42mm | |
| Switch Contact Current | 3 A | |
| Length | 52mm | |
| Width | 30 mm | |
| Standards/Approvals | REACH, RoHS, CSA | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Switch Operation Spring Return | ||
Product Type Push Button Switch | ||
Illuminated No | ||
Panel Cutout Size 22.5 mm | ||
Series XB5 | ||
Mount Type Panel | ||
Contact Configuration SPDT | ||
Terminal Type Screw | ||
IP Rating IP67, IP66 | ||
Contact AC Voltage 600V | ||
Contact DC Voltage 600V | ||
Minimum Operating Temperature -40°C | ||
Actuator Style Button | ||
Maximum Operating Temperature 70°C | ||
Height 42mm | ||
Switch Contact Current 3 A | ||
Length 52mm | ||
Width 30 mm | ||
Standards/Approvals REACH, RoHS, CSA | ||
RoHS Status: Exempt
- COO (Country of Origin):
- FR

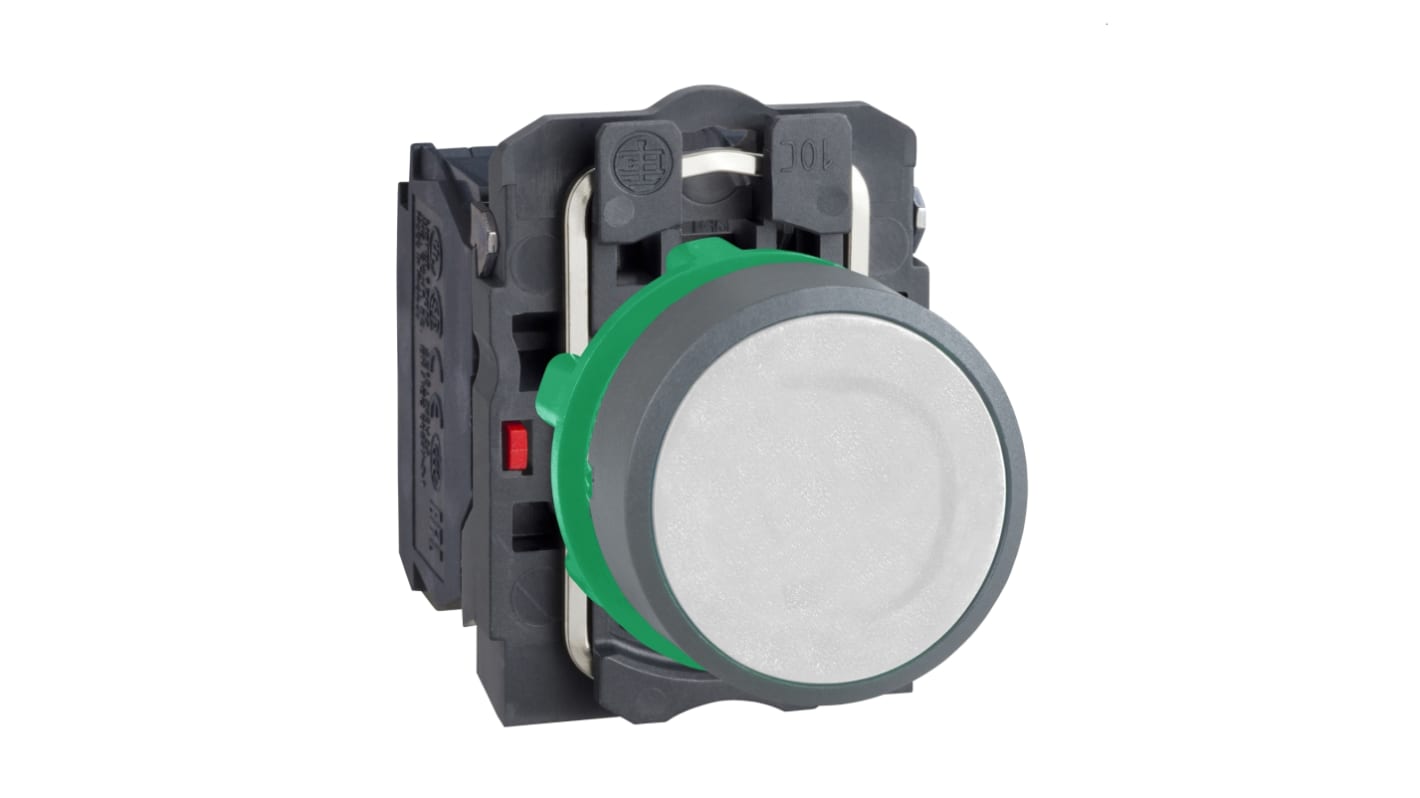

The Schneider Electric Push Button featuring a green flush button with a grey bezel, designed for 22mm mounting. With a spring return mechanism, it ensures precise and responsive control. Equipped with both 1 normally open and 1 normally closed contacts, this push button offers flexibility for various applications. The unmarked design provides customization options for specific control needs.
Mercury free
RoHS compliant
Toxic heavy metal free
IP66 and IP67 degree of protection
