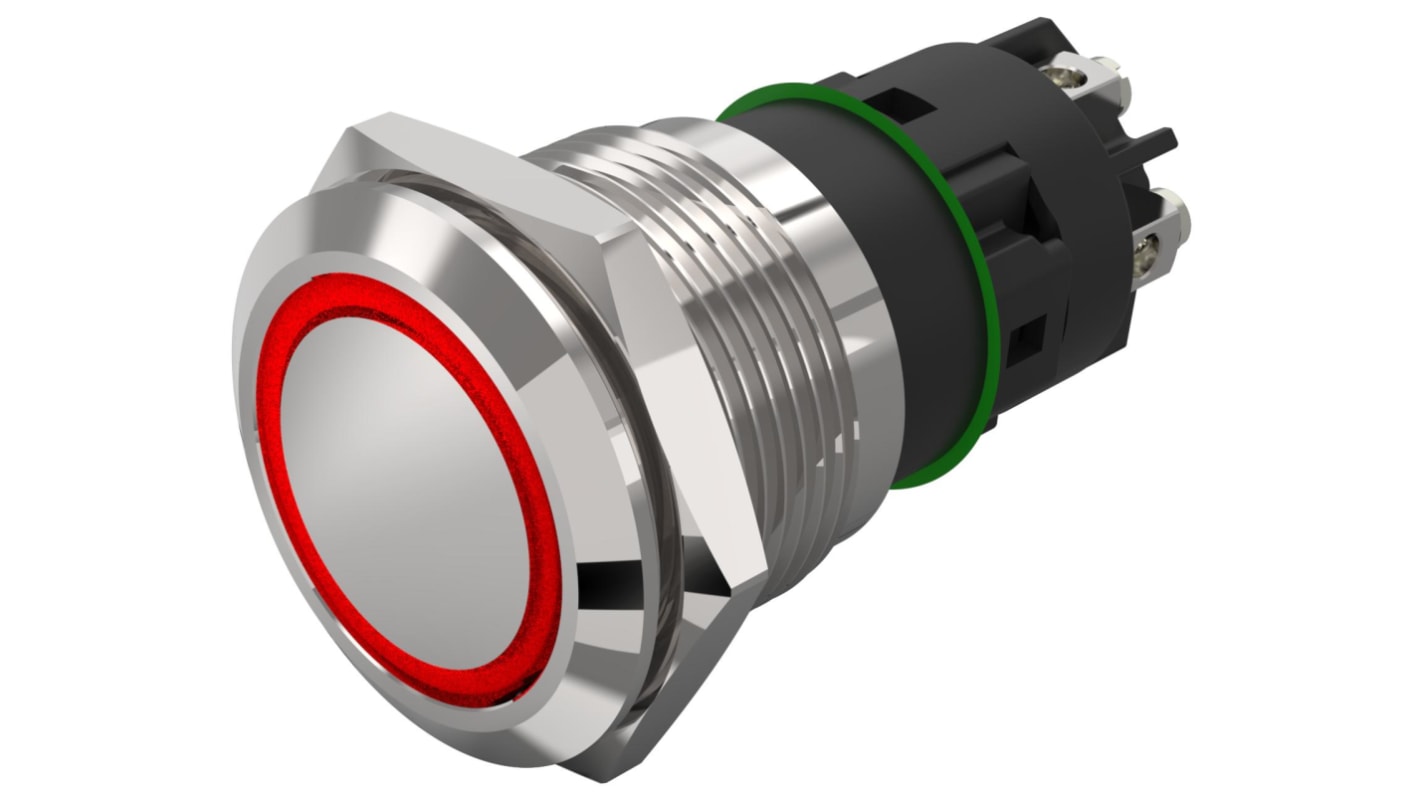

EAO 82 Series Illuminated Illuminated Push Button Switch, Momentary, Panel Mount, 19mm Cutout, SPDT, Red LED, 240V,
- RS Stock No.:
- 247-8953
- Mfr. Part No.:
- 82-5552.1113
- Brand:
- EAO
17 In stock - FREE next working day delivery available
Added
Price Each
£17.14
(exc. VAT)
£20.57
(inc. VAT)
| Units | Per unit |
| 1 - 9 | £17.14 |
| 10 - 99 | £16.73 |
| 100 + | £15.11 |
- RS Stock No.:
- 247-8953
- Mfr. Part No.:
- 82-5552.1113
- Brand:
- EAO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CH
Product Details
The EAO pushbutton has snap-action switching element system. It has operating temperature range from -30 °C to + 70 °C. It is damp heat resistant for 21 days according to IEC 60512-11.
Silver contacts
CB, CCC, C UL, and UL approved
CB, CCC, C UL, and UL approved
Specifications
Attribute | Value |
|---|---|
| Switch Operation | Momentary |
| Illuminated | Yes |
| Panel Cut Out Diameter | 19mm |
| Mounting Type | Panel Mount |
| Contact Configuration | SPDT |
| Voltage Rating | 240V |
| LED Colour | Red |
| IP Rating | IP65, IP67 |
| Push Button Material | Aluminium |
| Series | 82 |
| Contact Current Rating | 3A |
| Contact Material | Silver Alloy |
| Manufacturer Part No. | 82-5552.1113 |
| Contact DC Voltage Rating | 240V |
| Contact AC Voltage Rating | 240V |
| Case Colour | Silver |
| Maximum Operating Temperature | +70°C |
| Operating Temperature Range | -30°C to +70°C |
| Terminal Type | Screw |
| Minimum Operating Temperature | -30°C |
