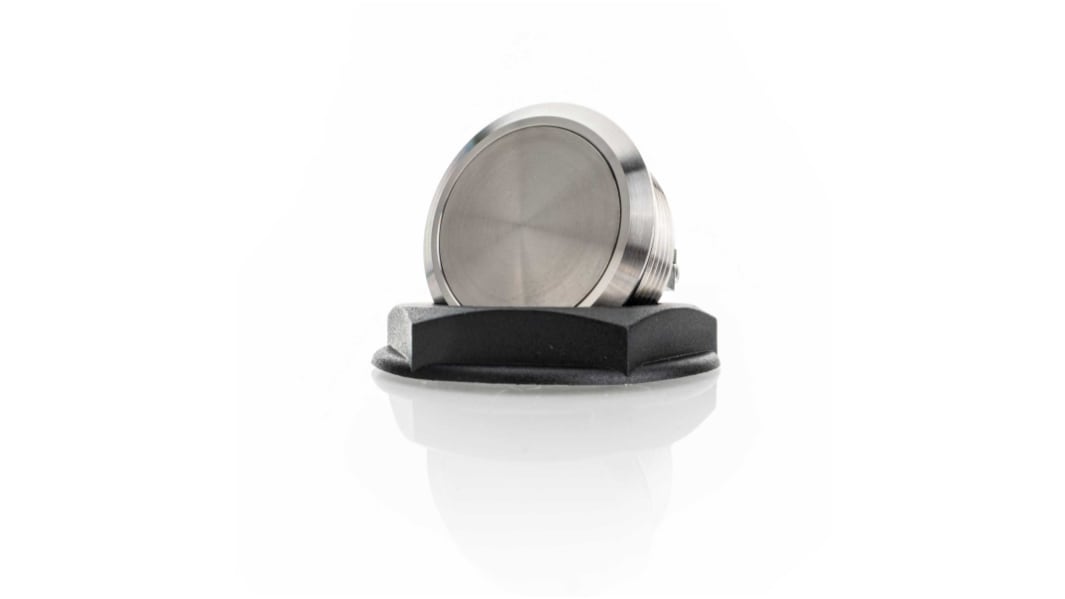

SP-NO/NC Momentary Push Button Switch, IP67, 30.1mm, Panel Mount

  • RS Stock No. 240-1231
  • Mfr. Part No. 76-9512/4044
  • Brand ITW
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): BA
Product Details

Large Actuation Area Switches

The 76–95 series are best suited to applications where vandal resistance is a necessity and have been designed to withstand a high degree of impacts. The body and buttons of the switch have been machined from hard-wearing stainless steel.

They have a panel sealed IP67 rating and come in either front mount or rear mount versions. Both types have been designed to reduce the possibility of a vandal forcing an object behind the switch to lever it from its mounting.

They are momentary action and have solder terminals at the rear of the switch. Terminals are tin plated bass with a nickel lash undercoat. The contacts are made of a fine silver material helping to prolong life and increase reliability.

IP67 sealed with microswitch action for use in harsh environments
The flush mounting with low profile and the large actuation area make this unit ideal for public usage
Momentary action n/o + n/c contacts
Contact Rating: 10A / 250Vac; 5A / 28Vdc

Specifications
Attribute Value
Switch Operation Momentary
Contact Configuration SP-NO/NC
Mounting Type Panel Mount
Panel Cut Out Size 30.1mm
Panel Cut Out Diameter 30.1mm
Contact Current Rating 10 A @ 250 V ac
Actuator Colour Silver
Case Colour Silver
Contact Material Fine Silver
Maximum Operating Temperature +105°C
Minimum Operating Temperature -30°C
IP Rating IP67
Operating Temperature Range -30 → +105°C
Actuator Type Button
Terminal Type Solder
Actuator Shape Round
648 In stock for FREE next working day delivery
Price Each
£ 17.95
(exc. VAT)
£ 21.54
(inc. VAT)
Units
Per unit
1 - 9
£17.95
10 - 14
£16.87
15 - 24
£15.62
25 +
£14.36
