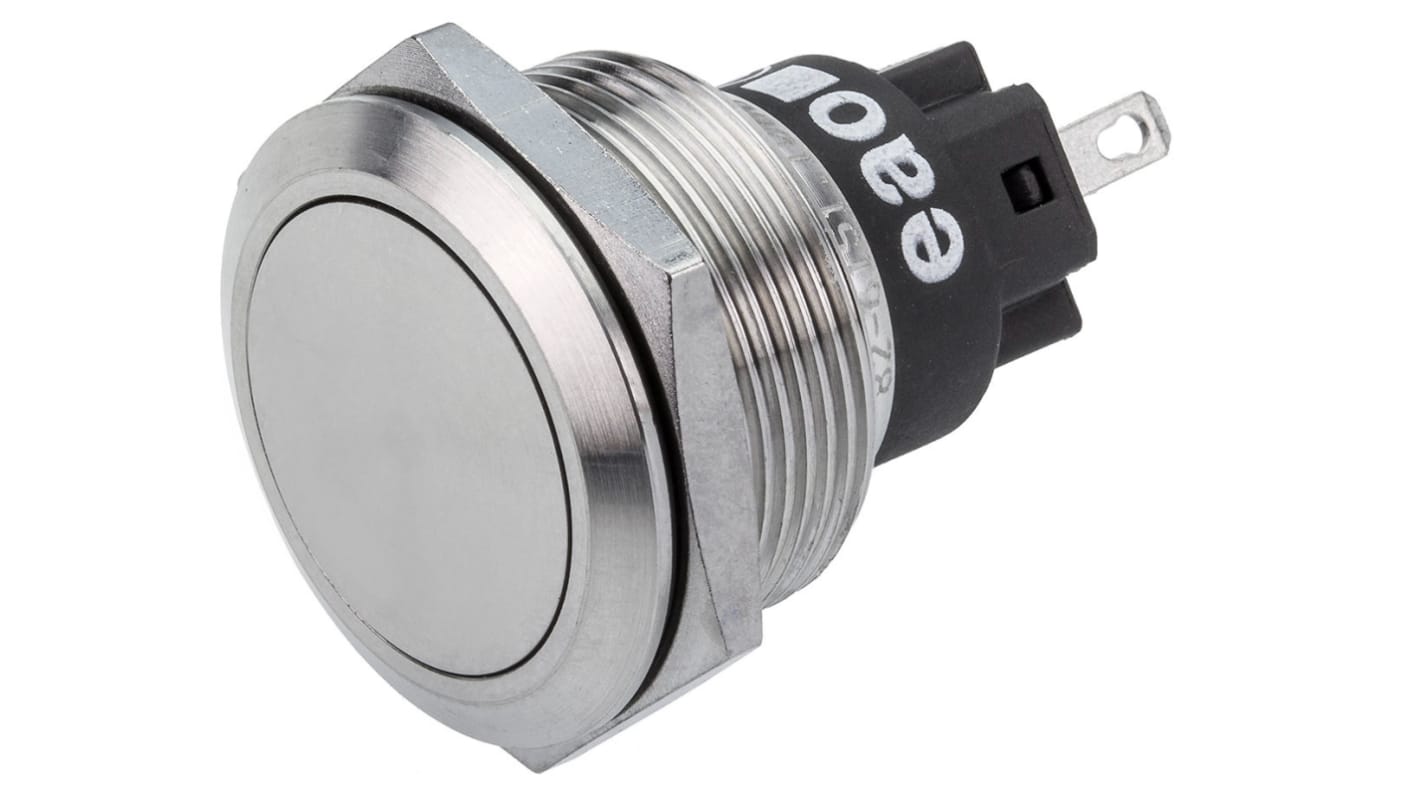

EAO 82 Series Push Button Switch, Momentary, Panel Mount, 22.3mm Cutout, SPDT, 240V, IP65, IP67
- RS Stock No.:
- 194-2086
- Mfr. Part No.:
- 82-6651.1000
- Brand:
- EAO
4 In stock - FREE next working day delivery available
5 available from Europe for delivery within 1 working day(s).
Added
Price Each
£24.32
(exc. VAT)
£29.18
(inc. VAT)
| Units | Per unit |
| 1 + | £24.32 |
- RS Stock No.:
- 194-2086
- Mfr. Part No.:
- 82-6651.1000
- Brand:
- EAO
Technical Reference
Legislation and Compliance
Product Details
Vandal-resistant: Impact resistant
Front protection
Gold-plated silver contacts available for low voltages and currents
Optional illumination and laser markings
Excellent tactile feedback
Long service life: > 1 million cycles of operation
Stainless steel anodised aluminium or brass coloured switches
16 mm, 19 mm or 22 mm mounting
Application
Exposed public areas: e.g. ticketing and vending machines
Industrial: Machinery and factory equipment
Lifting and moving: Elevators and people movers
Building management: Access control and security systems
Audio and video equipment
Medical equipment
Food Industry (corrosion and acid resistant versions available on request)
Front protection
Gold-plated silver contacts available for low voltages and currents
Optional illumination and laser markings
Excellent tactile feedback
Long service life: > 1 million cycles of operation
Stainless steel anodised aluminium or brass coloured switches
16 mm, 19 mm or 22 mm mounting
Application
Exposed public areas: e.g. ticketing and vending machines
Industrial: Machinery and factory equipment
Lifting and moving: Elevators and people movers
Building management: Access control and security systems
Audio and video equipment
Medical equipment
Food Industry (corrosion and acid resistant versions available on request)
316L Grade
Specifications
Attribute | Value |
|---|---|
| Switch Operation | Momentary |
| Illuminated | No |
| Panel Cut Out Diameter | 22.3mm |
| Mounting Type | Panel Mount |
| Push Button Colour | Silver |
| Contact Configuration | SPDT |
| Voltage Rating | 240V |
| Push Button Style | Round |
| IP Rating | IP65, IP67 |
| Series | 82 |
| Contact Current Rating | 3A |
| Contact Material | Silver Alloy |
| Case Colour | Silver |
| Contact DC Voltage Rating | 240V |
| Contact AC Voltage Rating | 240V |
| Manufacturer Part No. | 82-6651.1000 |
| Operating Temperature Range | -30°C to +70°C |
| Terminal Type | Plug In, Solder |
| Minimum Operating Temperature | -30°C |
| Maximum Operating Temperature | +70°C |
