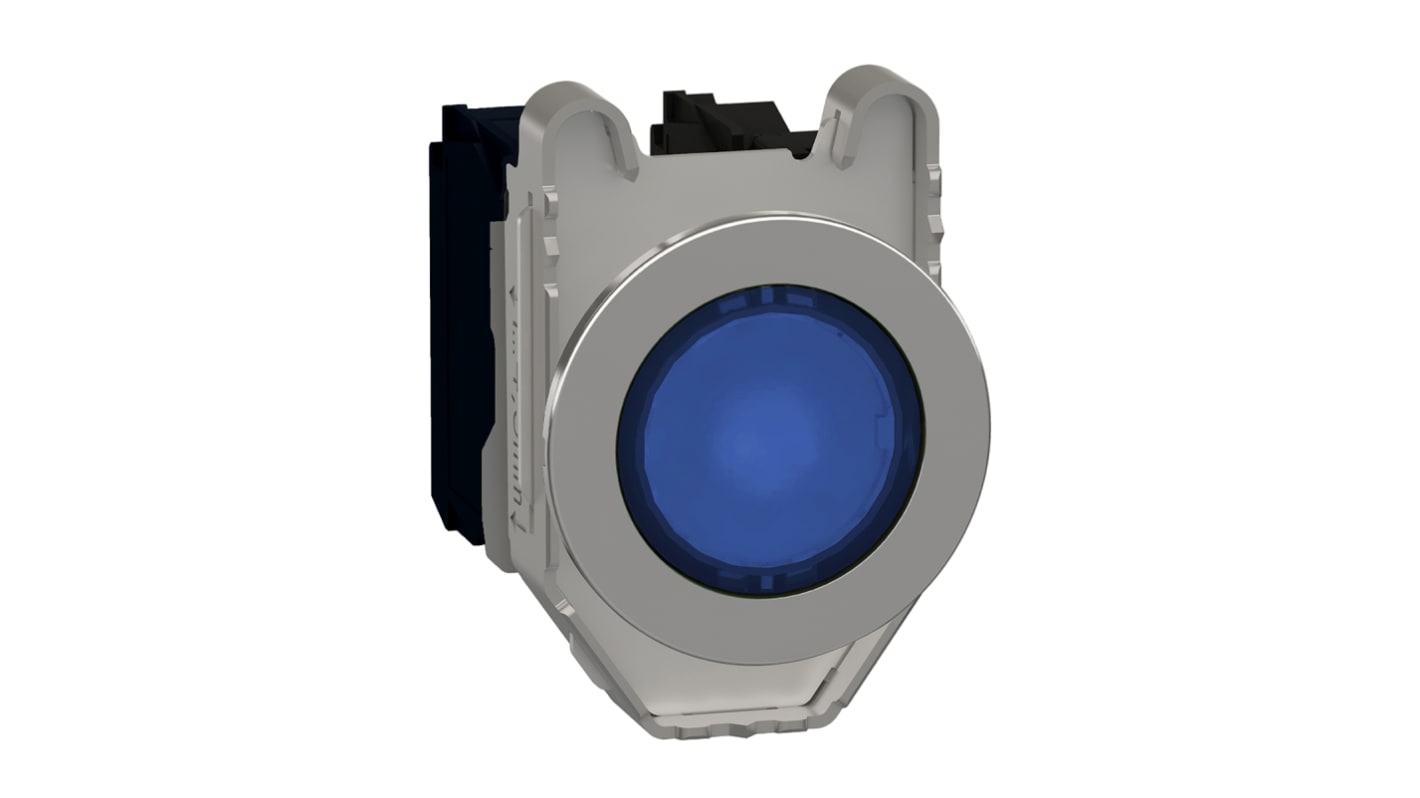

Schneider Electric XB4 Series Illuminated Push Button, Panel Mount, 30mm Cutout, SPDT
- RS Stock No.:
- 185-3741
- Mfr. Part No.:
- XB4FW36G5
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£38.43
(exc. VAT)
£46.12
(inc. VAT)
FREE delivery for orders over £50.00
- Shipping from 24 November 2025
Units | Per unit |
---|---|
1 + | £38.43 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 185-3741
- Mfr. Part No.:
- XB4FW36G5
- Brand:
- Schneider Electric
Select all | Attribute | Value |
---|---|---|
Brand | Schneider Electric | |
Illuminated | Yes | |
Panel Cut Out Diameter | 30mm | |
Series | XB4 | |
Mounting Type | Panel Mount | |
Push Button Colour | Blue | |
Contact Configuration | SPDT | |
Push Button Style | Round | |
Push Button Diameter | 36.5mm | |
Push Button Material | Metal | |
Better World Product | Yes | |
Better World Verification | Green Premium | |
Manufacturer Part No. | XB4FW36G5 | |
Maximum AC Voltage | 600V | |
Maximum Operating Temperature | +70°C | |
Maximum DC Voltage | 600V | |
Minimum Operating Temperature | -40°C | |
Body Material | Metal | |
Operating Temperature Range | -40 → + 70°C | |
Terminal Type | Screw | |
Select all | ||
---|---|---|
Brand Schneider Electric | ||
Illuminated Yes | ||
Panel Cut Out Diameter 30mm | ||
Series XB4 | ||
Mounting Type Panel Mount | ||
Push Button Colour Blue | ||
Contact Configuration SPDT | ||
Push Button Style Round | ||
Push Button Diameter 36.5mm | ||
Push Button Material Metal | ||
Better World Product Yes | ||
Better World Verification Green Premium | ||
Manufacturer Part No. XB4FW36G5 | ||
Maximum AC Voltage 600V | ||
Maximum Operating Temperature +70°C | ||
Maximum DC Voltage 600V | ||
Minimum Operating Temperature -40°C | ||
Body Material Metal | ||
Operating Temperature Range -40 → + 70°C | ||
Terminal Type Screw | ||
Schneider Electric XB4FW36G5
High vibration resistance with shake-proof terminal screws
Large set of accessories to customize your panels
Various types of connection are available: screw clamp, connector, Faston connector, spring terminal, or printed circuit board
A wide choice of contact blocks for general purpose or specific applications (low current, standard, or high power switching)
Benefits
High performance even in the most demanding environments
Attractive design, reinforced with the flush mounting kit
Flexibility and adaptability through modular design
Simplicity and speed of installation
Wide offer providing a solution for all your applications
Applications
General purpose offer covering all segments and applications Industry
Machines and control panels in packaging, material handling, material working, pumping, etc.
Ideal in extreme environments: food and beverage, automotive, and outdoor use such as mining, water treatment, etc. Building and infrastructure
Energy distribution panels, public works, restaurants, commercial buildings, airports, etc.
