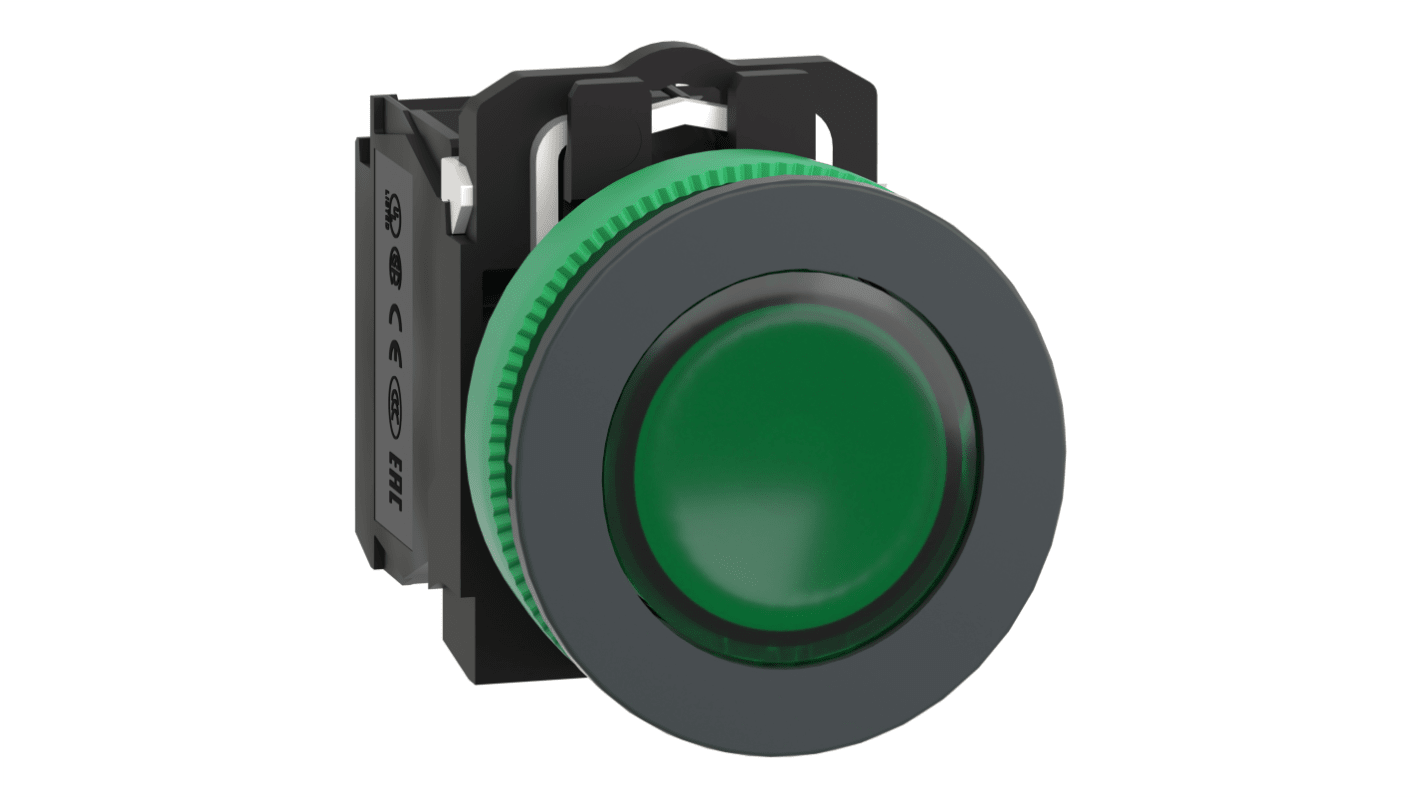

Schneider Electric XB5 Series Illuminated Push Button Switch, Spring Return, Panel, 30 mm Cutout, SPDT, Green LED 240 V

View all Push Button Switches

Subtotal (1 unit)*

£40.58

(exc. VAT)

£48.70

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 2 unit(s) ready to ship
  • Plus 2 unit(s) shipping from 10 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£40.58

*price indicative

Sponsored
Harmony XB Push Buttons
Schneider Electric Harmony XB Push Buttons
Schneider Electric's high-quality Harmony XB push buttons are a versatile and reliable choice for your control panel needs
Shop Here
RS Stock No.:
185-3556
Distrelec Article No.:
301-53-572
Mfr. Part No.:
XB5FW33M5
Brand:
Schneider Electric
Find similar products by selecting one or more attributes.
Select all

Brand

Schneider Electric

Product Type

Push Button Switch

Actuator Colour

Green

Switch Operation

Spring Return

Illuminated

Yes

Series

XB5

Panel Cutout Size

30 mm

Mount Type

Panel

Contact Configuration

SPDT

LED Colour

Green

Terminal Type

Screw

Actuator Style

Round

Contact AC Voltage

240V ac

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

70°C

Switch Configuration

1 NO/1 NC

Width

36.6mm

Length

55mm

Switch Contact Current

10A

Height

42mm

Standards/Approvals

EN/IEC 60947-1UL 508JIS C8201-5-1EN/IEC 60947-5-4EN/IEC 60947-5-1CSA C22.2 No 14JIS C8201-1ISO 22196:2011ISO 21702

Legend

Blank

COO (Country of Origin):
FR
Operating temperature from -40°C to 70°C

High chemical robustness

High vibration resistance with shake-proof terminal screws

Large set of accessories to customize your panels

Various types of connection are available: screw clamp, connector, Faston connector, spring terminal, or printed circuit board.

A wide choice of contact blocks for general purpose or specific applications (low current, standard, or high power switching)

Benefits

High performance in chemical environments (cleaning solvents, alcohol, detergent, cutting oil, milk)

Attractive and affordable flush mount versions, stylish and easy to clean

Flexibility and adaptability through modular design

Simplicity and speed of installation

Wide offer providing a solution for all of your applications

Applications

General purpose offer covering all segments and applications:Industry

Machines and control panels in packaging, material handling, pumping…

Ideal in extreme environments: food and beverage, marine, etc. Building and infrastructure

Energy distribution panels, public works, restaurants, commercial buildings, airports, etc.

Flush mounted green flush caps illum pushbutton with LED 230VAC 1NO+1NC screw
