Siemens SIRIUS ACT 3SU11 Series Illuminated Push Button, 22mm Cutout, SPST
- RS Stock No.:
- 181-2863
- Mfr. Part No.:
- 3SU1103-0AB70-1BA0
- Brand:
- Siemens
Subtotal (1 unit)*
£27.00
(exc. VAT)
£32.40
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 04 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £27.00 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 181-2863
- Mfr. Part No.:
- 3SU1103-0AB70-1BA0
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Illuminated | Yes | |
| Panel Cut Out Diameter | 22mm | |
| Series | SIRIUS ACT 3SU11 | |
| Push Button Colour | Clear | |
| Contact Configuration | SPST | |
| Push Button Style | Round | |
| Push Button Diameter | 29.45mm | |
| Push Button Material | Plastic | |
| Better World Claim | Extended product life, Low carbon manufacture | |
| Better World Product | Yes | |
| Manufacturer Part No. | 3SU1103-0AB70-1BA0 | |
| Maximum Operating Temperature | +70°C | |
| Minimum Operating Temperature | -25°C | |
| Maximum DC Voltage | 500V | |
| Operating Temperature Range | -25 → +70°C | |
| Terminal Type | Screw | |
| Body Material | Plastic | |
| Maximum AC Voltage | 500V | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Illuminated Yes | ||
Panel Cut Out Diameter 22mm | ||
Series SIRIUS ACT 3SU11 | ||
Push Button Colour Clear | ||
Contact Configuration SPST | ||
Push Button Style Round | ||
Push Button Diameter 29.45mm | ||
Push Button Material Plastic | ||
Better World Claim Extended product life, Low carbon manufacture | ||
Better World Product Yes | ||
Manufacturer Part No. 3SU1103-0AB70-1BA0 | ||
Maximum Operating Temperature +70°C | ||
Minimum Operating Temperature -25°C | ||
Maximum DC Voltage 500V | ||
Operating Temperature Range -25 → +70°C | ||
Terminal Type Screw | ||
Body Material Plastic | ||
Maximum AC Voltage 500V | ||
- COO (Country of Origin):
- DE

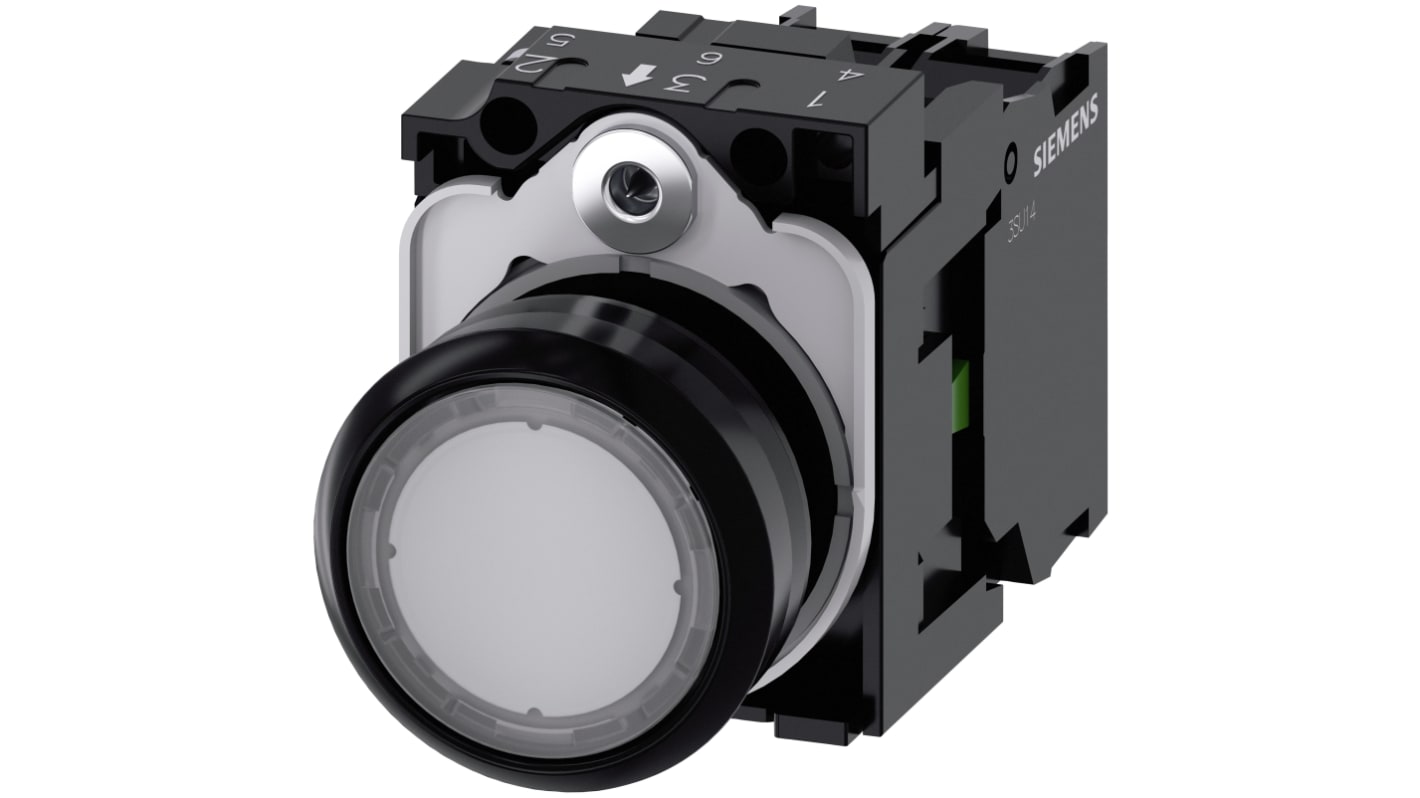

Siemens pushbutton
The Siemens SIRIUS ACT normally open (NO) chassis mount illuminated pushbutton has a 22mm cut-out diameter. Its body is made of plastic and is round in shape. It has an LED module with an integrated LED.
Features and Benefits
• 1-NO contact
• Available in clear colour
• Connection is screw terminal
• Flat style button
• Operating temperature ranges between -25°C and 70°C
• Operating voltage ranges up to 500VAC/VDC
• Switching method is momentary with a holder
• Available in clear colour
• Connection is screw terminal
• Flat style button
• Operating temperature ranges between -25°C and 70°C
• Operating voltage ranges up to 500VAC/VDC
• Switching method is momentary with a holder
Applications
• AS-interface
• Hazardous areas
• IO-link
• Marine applications
• Safety circuits
• Safety emergency stop pushbutton
• Standard industrial applications
• Hazardous areas
• IO-link
• Marine applications
• Safety circuits
• Safety emergency stop pushbutton
• Standard industrial applications
Certifications
• EC/EN 60947-1 certified
• IEC/EN 60947-5-1 certified
• IEC/EN 60947-5-5 certified
• IP20 rated
• IP66 rated
• IP67 rated
• IP69 rated
• IEC/EN 60947-5-1 certified
• IEC/EN 60947-5-5 certified
• IP20 rated
• IP66 rated
• IP67 rated
• IP69 rated
