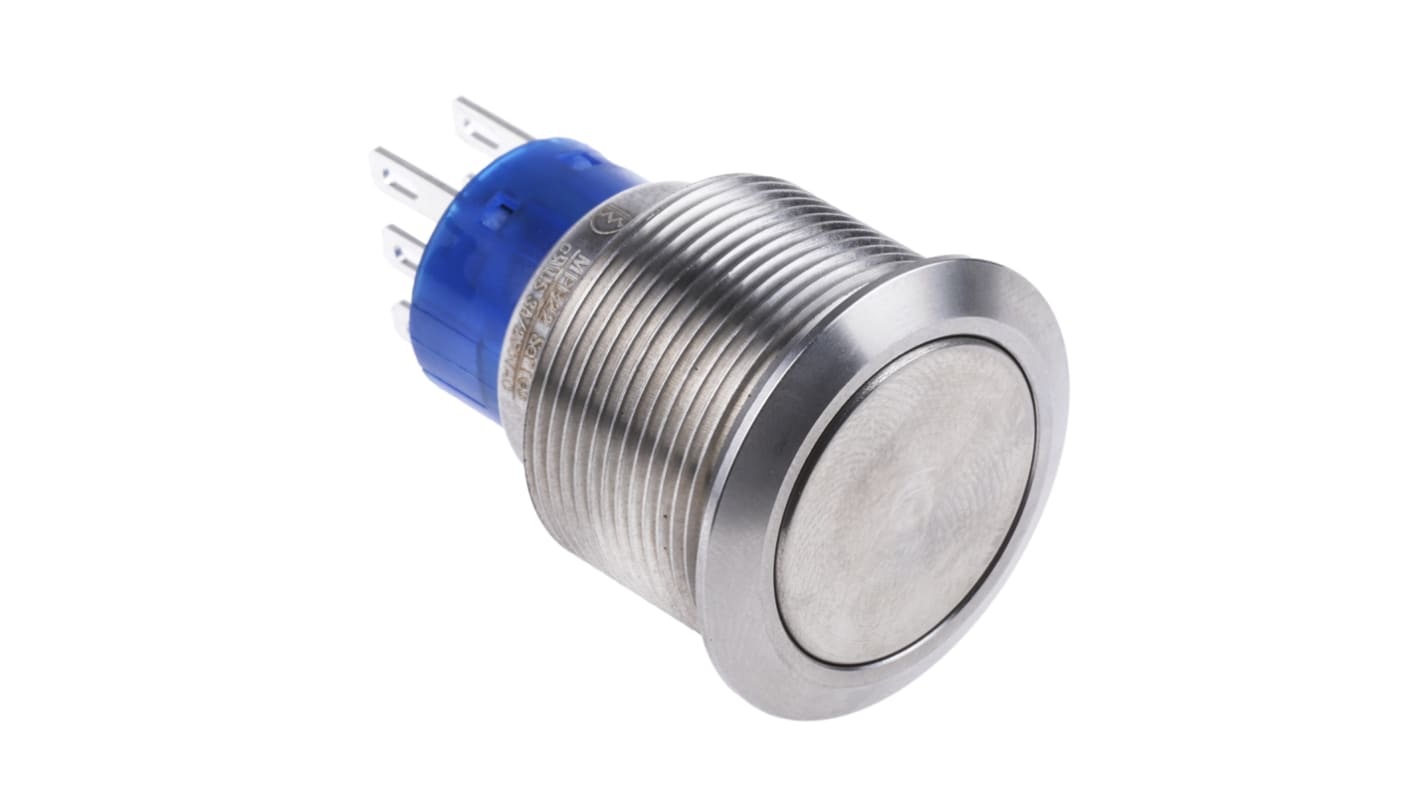

RS PRO Push Button Switch, Panel Mount, 22.2mm Cutout, DPDT, 250V ac, IP67

RS Stock No.:: 175-9711
Brand:: RS PRO

RS PRO Push Button Switch, Panel Mount, 22.2mm Cutout, DPDT, 250V ac, IP67

3 In stock - FREE next working day delivery available

Added

Price Each

£18.70

(exc. VAT)

£22.44

(inc. VAT)

Units	Per unit
1 - 49	£18.70
50 - 149	£17.58
150 - 249	£16.45
250 +	£15.71

RS Stock No.:: 175-9711
Brand:: RS PRO

Technical Reference

Legislation and Compliance

COO (Country of Origin):: TW

Product Details

Single Pole Double Throw Anti-Vandal Switches (MPB Series)

IP67 rated. Available in 16mm, 19mm, 22mm, 25mm and high current.
Along with other industrial type applications that require vandal resistance in a public setting.
With a wide variety of options, including illuminated, sealed and long life expectancy.
The distinctive of RS Pro metal switches are light weight, high strength, corrosion resistance, aesthetic, easy heat dissipation and more.

Applications

Industrial control instruments, medical equipment, security monitoring equipment, vehicle peripherals, audio-visual equipment, energy storage equipment.

Specifications

Attribute	Value
Illuminated	No
Panel Cut Out Diameter	22.2mm
Mounting Type	Panel Mount
Contact Configuration	DPDT
Voltage Rating	250V ac
Push Button Style	Round
IP Rating	IP67
Contact Current Rating	3 A, 5 A
Contact Material	Copper
Manufacturer Part No.	MPB22-A0F210-JQ
Contact AC Voltage Rating	250V
Case Colour	Natural
Terminal Type	Solder
