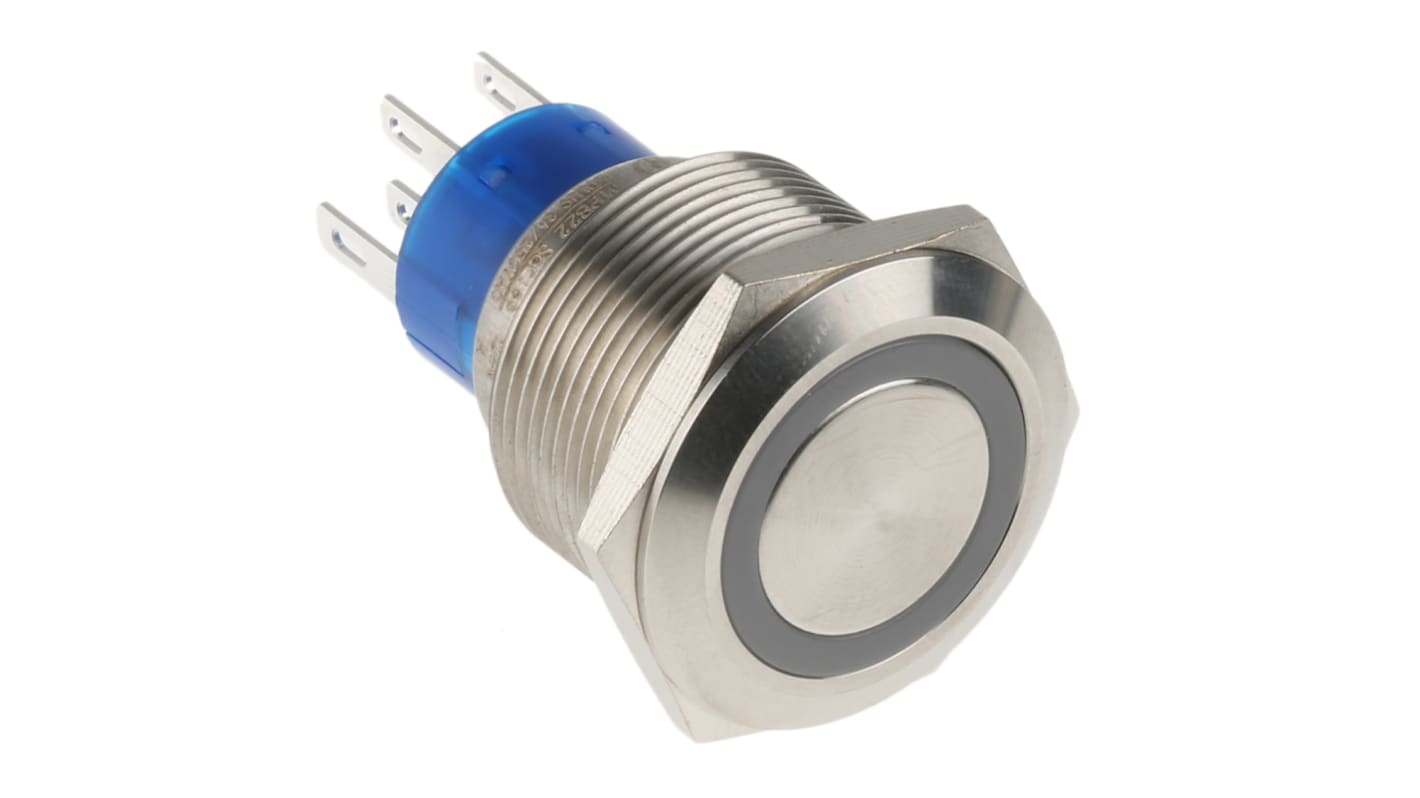

RS PRO Illuminated Push Button Switch, Momentary, Panel Mount, 22.2mm Cutout, DPDT, Red LED, 250V ac, IP67
- RS Stock No.:
- 175-9250
- Brand:
- RS PRO
Discontinued product
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 175-9250
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
Product Details
Single Pole Double Throw Anti-Vandal Switches (MPB Series)
IP67 rated. Available in 16mm, 19mm, 22mm, 25mm and high current.
Along with other industrial type applications that require vandal resistance in a public setting.
With a wide variety of options, including illuminated, sealed and long life expectancy.
The distinctive of RS Pro metal switches are light weight, high strength, corrosion resistance, aesthetic, easy heat dissipation and more.
Along with other industrial type applications that require vandal resistance in a public setting.
With a wide variety of options, including illuminated, sealed and long life expectancy.
The distinctive of RS Pro metal switches are light weight, high strength, corrosion resistance, aesthetic, easy heat dissipation and more.
Applications
Industrial control instruments, medical equipment, security monitoring equipment, vehicle peripherals, audio-visual equipment, energy storage equipment.
Specifications
Attribute | Value |
|---|---|
| Switch Operation | Momentary |
| Illuminated | Yes |
| Panel Cut Out Diameter | 22.2mm |
| Mounting Type | Panel Mount |
| Contact Configuration | DPDT |
| Voltage Rating | 250V ac |
| Push Button Style | Round |
| LED Colour | Red |
| IP Rating | IP67 |
| Contact Current Rating | 3 A, 5 A |
| Contact Material | Copper |
| Case Colour | Natural |
| Contact AC Voltage Rating | 250V |
| Manufacturer Part No. | MPB22-A0F20E-324-JQ |
| Terminal Type | Solder |
