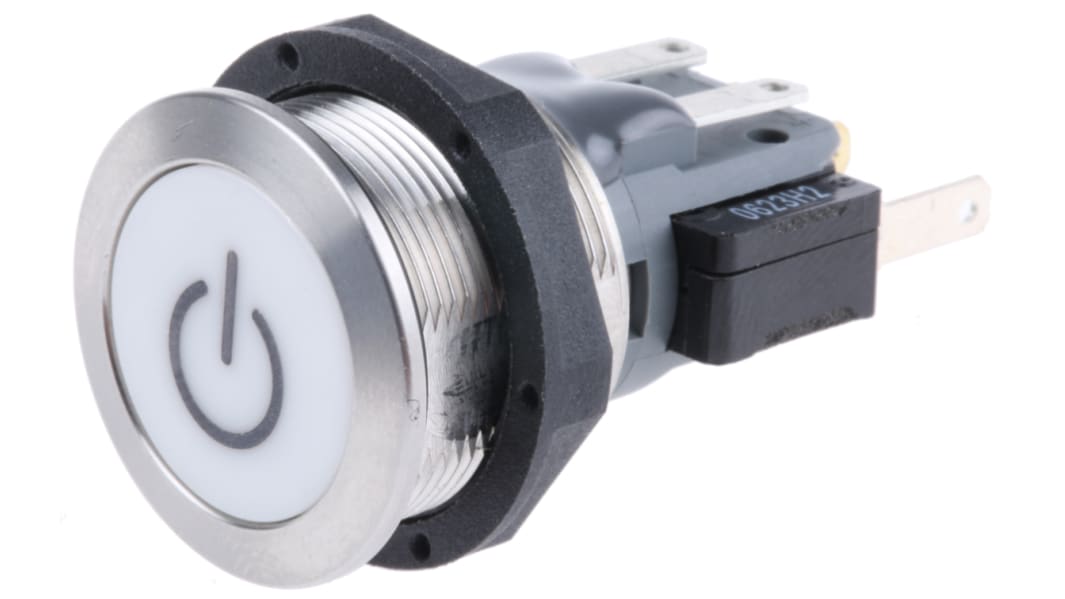

Schurter Illuminated Push Button Switch, Momentary, Panel Mount, 19mm Cutout, SPDT, Blue LED, 250V ac, IP69K
- RS Stock No.:
- 173-7952
- Mfr. Part No.:
- 1241.7026.1124074
- Brand:
- Schurter
Stock information currently inaccessible
- RS Stock No.:
- 173-7952
- Mfr. Part No.:
- 1241.7026.1124074
- Brand:
- Schurter
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schurter | |
| Switch Operation | Momentary | |
| Illuminated | Yes | |
| Panel Cut Out Diameter | 19mm | |
| Mounting Type | Panel Mount | |
| Push Button Colour | Silver | |
| Contact Configuration | SPDT | |
| Voltage Rating | 250V ac | |
| Push Button Style | Round | |
| LED Colour | Blue | |
| IP Rating | IP69K | |
| Contact Current Rating | 3 A @ 250 V ac | |
| Contact Material | Silver | |
| Case Colour | Metallic | |
| Manufacturer Part No. | 1241.7026.1124074 | |
| Legend | Power | |
| Terminal Type | Tab | |
| Select all | ||
|---|---|---|
Brand Schurter | ||
Switch Operation Momentary | ||
Illuminated Yes | ||
Panel Cut Out Diameter 19mm | ||
Mounting Type Panel Mount | ||
Push Button Colour Silver | ||
Contact Configuration SPDT | ||
Voltage Rating 250V ac | ||
Push Button Style Round | ||
LED Colour Blue | ||
IP Rating IP69K | ||
Contact Current Rating 3 A @ 250 V ac | ||
Contact Material Silver | ||
Case Colour Metallic | ||
Manufacturer Part No. 1241.7026.1124074 | ||
Legend Power | ||
Terminal Type Tab | ||
- COO (Country of Origin):
- DE
Anti-Vandal M19 & M22 Push Button Switches - MSM CS Series
Ceramic actuator resistant to scratches, abrasion, impact and chemicals
Fully illuminated
Low profile front structure (1.7 mm)
IP 69K protection class for front side of contact area
Quick connect terminals
Fully illuminated
Low profile front structure (1.7 mm)
IP 69K protection class for front side of contact area
Quick connect terminals
