Siemens SIRIUS ACT Series Push Button Complete Unit, Panel Mount, 22mm Cutout, SPST
- RS Stock No.:
- 173-6780
- Mfr. Part No.:
- 3SU1130-1BA20-1CA0
- Brand:
- Siemens
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£26.94
(exc. VAT)
£32.33
(inc. VAT)
- RS Stock No.:
- 173-6780
- Mfr. Part No.:
- 3SU1130-1BA20-1CA0
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Panel Cut Out Diameter | 22mm | |
| Series | SIRIUS ACT | |
| Mounting Type | Panel Mount | |
| Push Button Colour | Red | |
| Contact Configuration | SPST | |
| Push Button Style | Round | |
| Push Button Diameter | 40mm | |
| Push Button Material | Plastic | |
| Manufacturer Part No. | 3SU1130-1BA20-1CA0 | |
| Body Material | Plastic | |
| Maximum AC Voltage | 500V | |
| Maximum DC Voltage | 500V | |
| Maximum Operating Temperature | +70°C | |
| Minimum Operating Temperature | -25°C | |
| Terminal Type | Screw | |
Select all | ||
|---|---|---|
Brand Siemens | ||
Panel Cut Out Diameter 22mm | ||
Series SIRIUS ACT | ||
Mounting Type Panel Mount | ||
Push Button Colour Red | ||
Contact Configuration SPST | ||
Push Button Style Round | ||
Push Button Diameter 40mm | ||
Push Button Material Plastic | ||
Manufacturer Part No. 3SU1130-1BA20-1CA0 | ||
Body Material Plastic | ||
Maximum AC Voltage 500V | ||
Maximum DC Voltage 500V | ||
Maximum Operating Temperature +70°C | ||
Minimum Operating Temperature -25°C | ||
Terminal Type Screw | ||
- COO (Country of Origin):
- DE

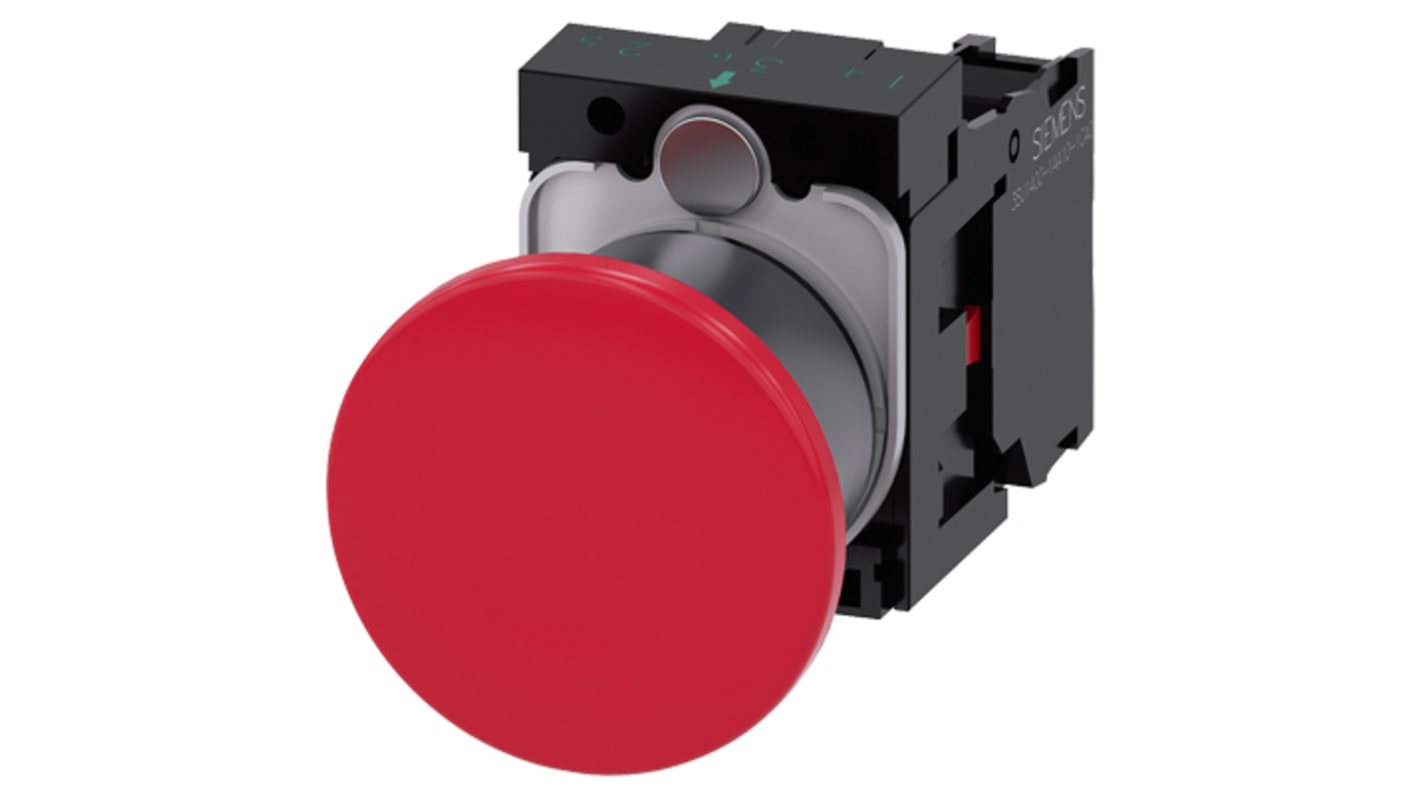

Siemens pushbutton Complete Unit
The Siemens SIRIUS ACT normally closed (NC) panel mount illuminated pushbutton has a 22mm cut-out diameter. Its body is made of plastic and is round in shape. It has an LED module with an integrated LED.
Features and Benefits
• 1-NC contact
• Available in red colour
• Available with a holder
• Connection is screw terminal
• Mushroom style button
• Operating temperature ranges between -25°C and 70°C
• Operating voltage is up to 500VAC/VDC
• Pull to unlatch for unlocking
• Switching method is latching
• Available in red colour
• Available with a holder
• Connection is screw terminal
• Mushroom style button
• Operating temperature ranges between -25°C and 70°C
• Operating voltage is up to 500VAC/VDC
• Pull to unlatch for unlocking
• Switching method is latching
Applications
• Hazardous areas
• Marine applications
• Safety emergency stop pushbutton
• Standard industrial applications
• Marine applications
• Safety emergency stop pushbutton
• Standard industrial applications
Certifications
• EC/EN 60947-1 certified
• IEC/EN 60947-5-1 certified
• IEC/EN 60947-5-5 certified
• IP20 rated
• IP66 rated
• IP67 rated
• IP69 rated
• IP69K rated
• IEC/EN 60947-5-1 certified
• IEC/EN 60947-5-5 certified
• IP20 rated
• IP66 rated
• IP67 rated
• IP69 rated
• IP69K rated
