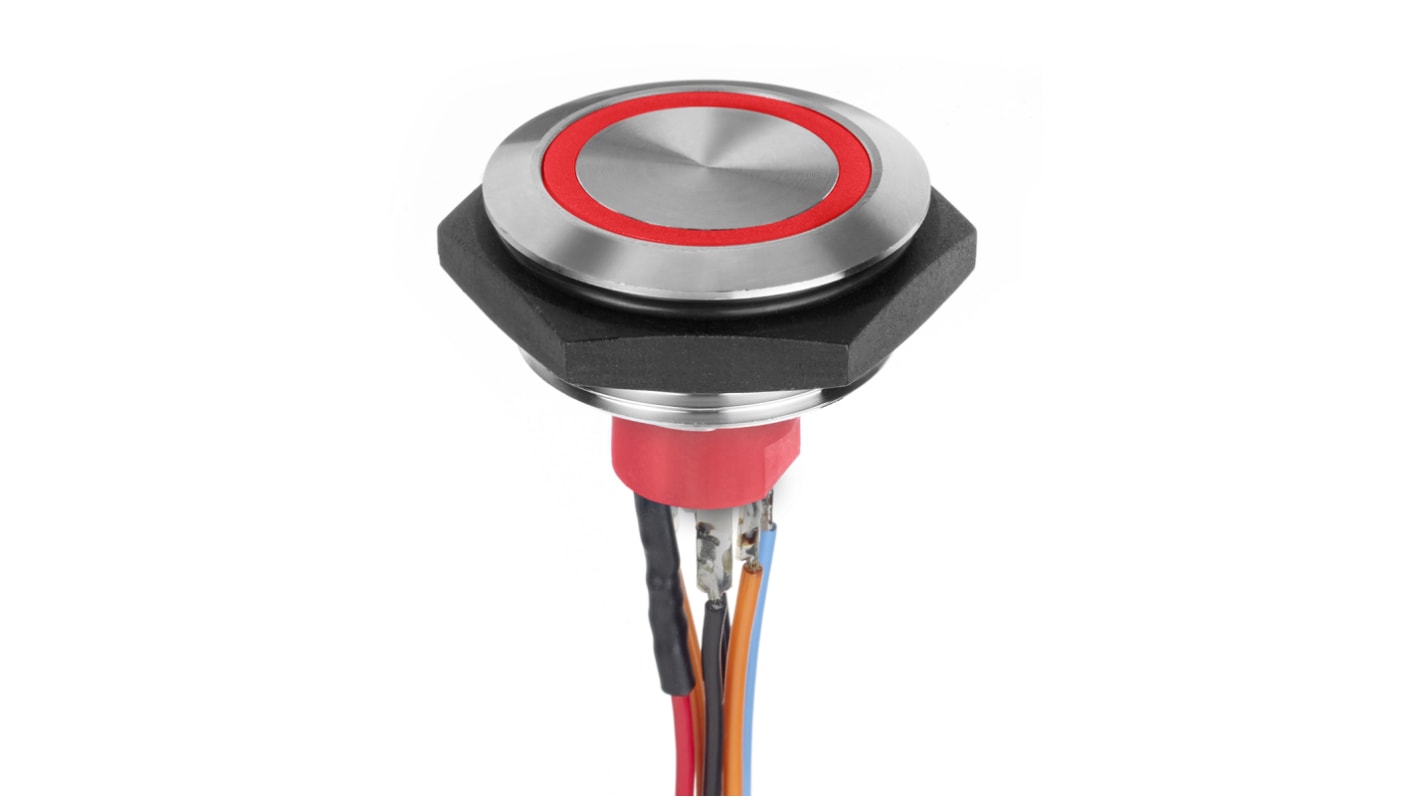

APEM Illuminated Vandal Proof Push Button Switch, Momentary, Panel Mount, 30.2mm Cutout, SPST, Red LED, 30V dc, IP67
- RS Stock No.:
- 166-0769
- Mfr. Part No.:
- AV56022000074BK
- Brand:
- APEM
Available to back order for despatch 23/09/2024
Added
Price Each
£68.40
(exc. VAT)
£82.08
(inc. VAT)
| Units | Per unit |
| 1 - 9 | £68.40 |
| 10 - 49 | £66.51 |
| 50 - 99 | £64.70 |
| 100 - 249 | £63.00 |
| 250 + | £61.39 |
- RS Stock No.:
- 166-0769
- Mfr. Part No.:
- AV56022000074BK
- Brand:
- APEM
Legislation and Compliance
- COO (Country of Origin):
- FR
Product Details
APEM expands its range of security switches with a series of larger diameter pushbuttons. The AV 30 mm NC/NO pushbuttons are easy to operate due to their large actuation surface. Their wider illuminated ring makes them highly visible on the panel.
Bushing diameter 30 mm
Momentary NC/NO
Illuminated ring, 7 different colors
Mechanical life: 1 million cycles
Momentary NC/NO
Illuminated ring, 7 different colors
Mechanical life: 1 million cycles
Specifications
Attribute | Value |
|---|---|
| Switch Operation | Momentary |
| Illuminated | Yes |
| Panel Cut Out Diameter | 30.2mm |
| Mounting Type | Panel Mount |
| Push Button Colour | Black |
| Contact Configuration | SPST |
| Voltage Rating | 30V dc |
| Push Button Style | Round |
| LED Colour | Red |
| IP Rating | IP67 |
| Contact Current Rating | 1 A |
| Contact Material | Silver |
| Manufacturer Part No. | AV56022000074BK |
| Contact DC Voltage Rating | 30V |
| Terminal Type | Solder/Quick Connect |
