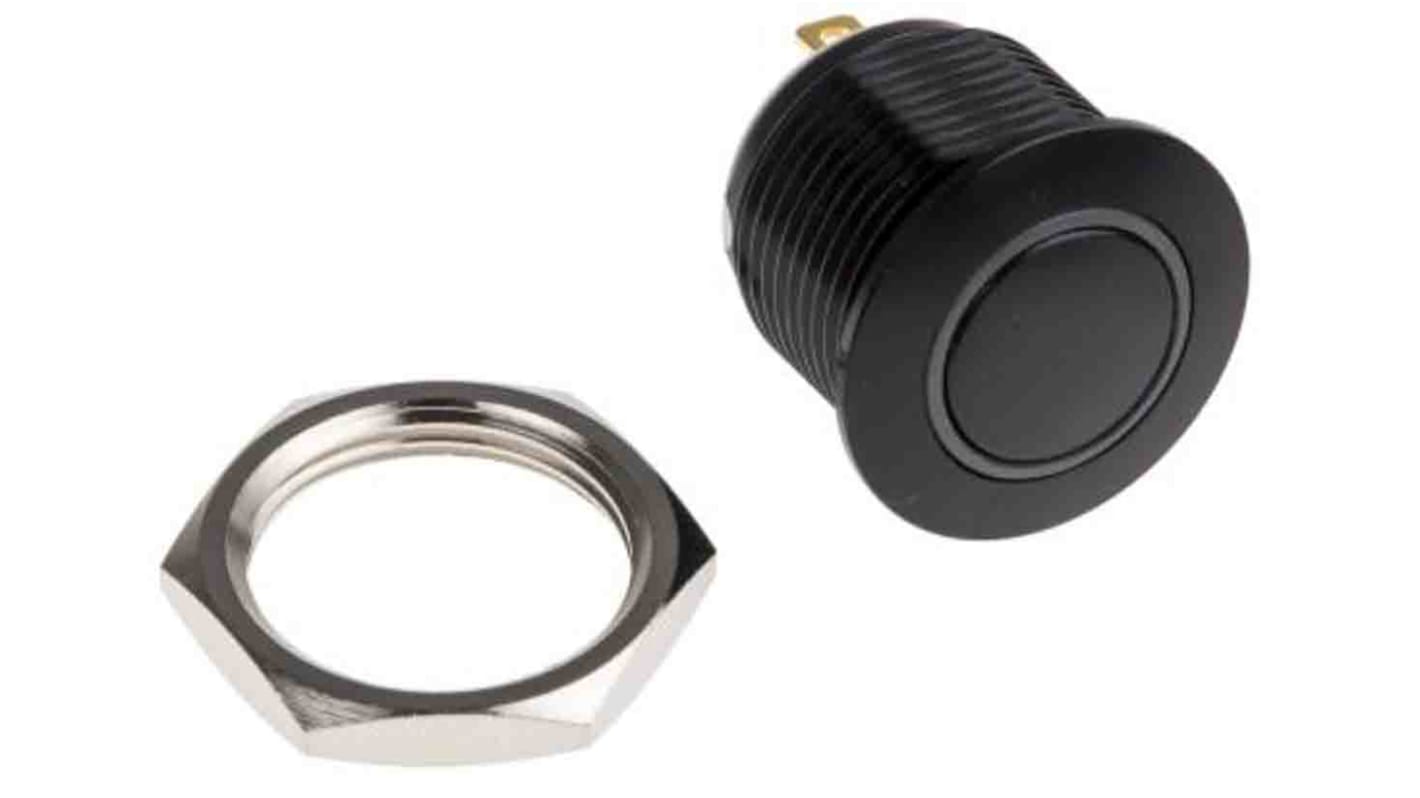

KNITTER-SWITCH Illuminated Push Button Switch, Momentary, Panel Mount, 16mm Cutout, SPST, Red LED, 36V dc, IP67
- RS Stock No.:
- 164-9920
- Mfr. Part No.:
- MAV16CBRE-3-JR-12V
- Brand:
- KNITTER-SWITCH
17 In stock - FREE next working day delivery available
Price Each
£8.94
(exc. VAT)
£10.73
(inc. VAT)
Units | Per unit |
|---|---|
| 1 + | £8.94 |
- RS Stock No.:
- 164-9920
- Mfr. Part No.:
- MAV16CBRE-3-JR-12V
- Brand:
- KNITTER-SWITCH
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
The Knitter-Switch MAV16CBRE series, single pole single throw (SPST), momentary red LED curved push button switch has 12V DC LED resistor and 16 mm panel cut out diameter with 36V DC, 2A contact rating.
Aluminium button material
Black case colour
Ring shape lens style
IP67 protection rating
Solder lugs terminals
Gold flash over silver contact
Operating temperature ranging from -20 °C to +70 °C
Black case colour
Ring shape lens style
IP67 protection rating
Solder lugs terminals
Gold flash over silver contact
Operating temperature ranging from -20 °C to +70 °C
Specifications
Attribute | Value |
|---|---|
| Switch Operation | Momentary |
| Illuminated | Yes |
| Panel Cut Out Diameter | 16mm |
| Mounting Type | Panel Mount |
| Contact Configuration | SPST |
| Voltage Rating | 36V dc |
| Push Button Style | Round |
| LED Colour | Red |
| IP Rating | IP67 |
| Contact Current Rating | 2 A |
| Contact Material | Silver Alloy |
| Manufacturer Part No. | MAV16CBRE-3-JR-12V |
| Contact DC Voltage Rating | 36V |
| Case Colour | Black |
| Terminal Type | Solder Lug |
