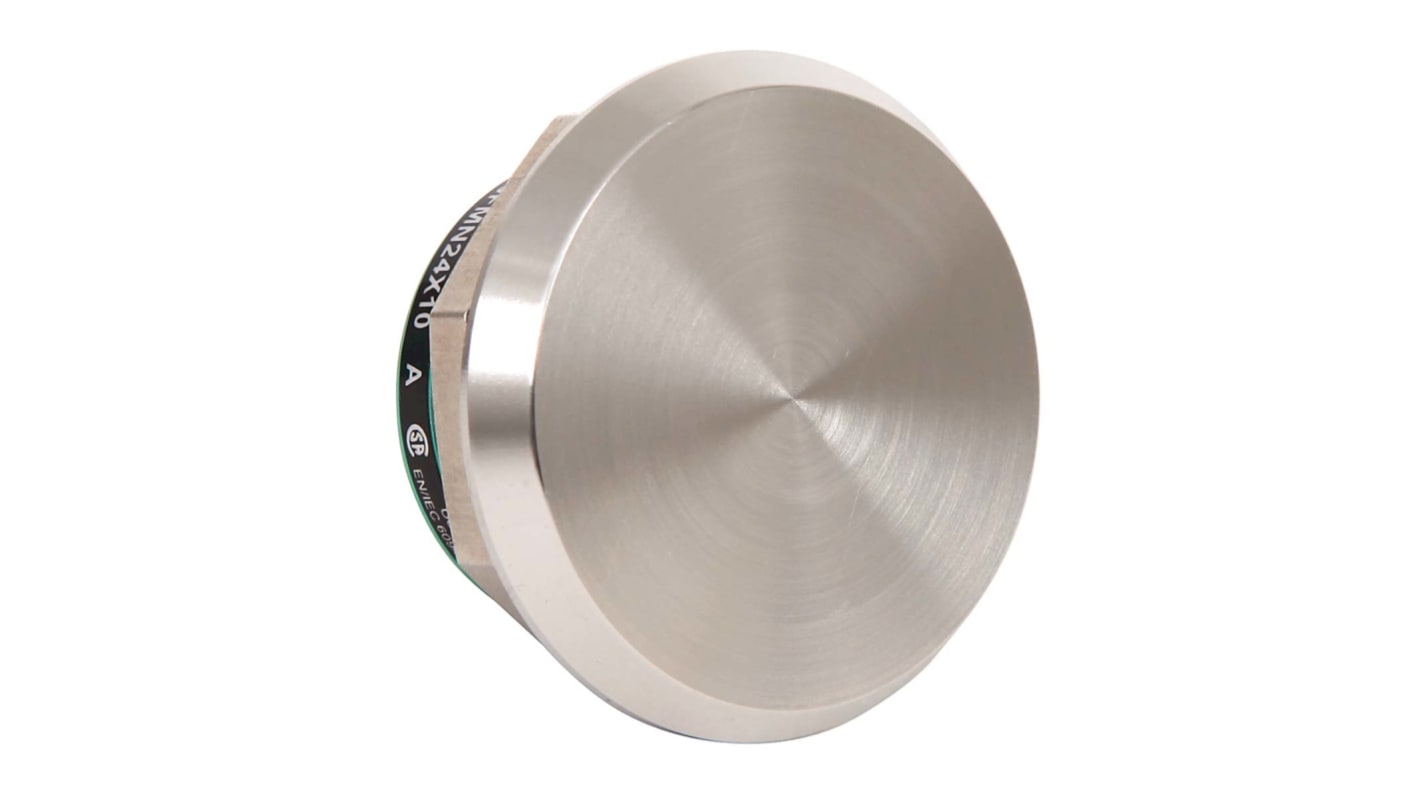

Allen Bradley 800K Series Push Button, Panel Mount, 30.5mm Cutout, SPST
- RS Stock No.:
- 134-8270
- Mfr. Part No.:
- 800K-30FMN24X10
- Brand:
- Allen Bradley
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 134-8270
- Mfr. Part No.:
- 800K-30FMN24X10
- Brand:
- Allen Bradley
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Allen Bradley | |
| Panel Cut Out Diameter | 30.5mm | |
| Series | 800K | |
| Mounting Type | Panel Mount | |
| Contact Configuration | SPST | |
| Push Button Style | Round | |
| Push Button Diameter | 30.5mm | |
| Push Button Material | Stainless Steel | |
| Manufacturer Part No. | 800K-30FMN24X10 | |
| Minimum Operating Temperature | -25°C | |
| Maximum DC Voltage | 12V | |
| Maximum Operating Temperature | +70°C | |
| Maximum AC Voltage | 12V | |
| Body Material | Polyamide | |
| Terminal Type | Screw | |
Select all | ||
|---|---|---|
Brand Allen Bradley | ||
Panel Cut Out Diameter 30.5mm | ||
Series 800K | ||
Mounting Type Panel Mount | ||
Contact Configuration SPST | ||
Push Button Style Round | ||
Push Button Diameter 30.5mm | ||
Push Button Material Stainless Steel | ||
Manufacturer Part No. 800K-30FMN24X10 | ||
Minimum Operating Temperature -25°C | ||
Maximum DC Voltage 12V | ||
Maximum Operating Temperature +70°C | ||
Maximum AC Voltage 12V | ||
Body Material Polyamide | ||
Terminal Type Screw | ||
- COO (Country of Origin):
- FR
Piezo Push Buttons 30.5mm Mounting
800K series piezoelectric push buttons features a robust 316 stainless steel body that achieves an IP69K rating. The piezoelectric circuit detects pressure on the surface of the button to provide a momentary actuation signal with no moving parts.
30.5 mm mounting hole
IP69K rated
316 stainless steel
Fully potted
24V DC
IP69K rated
316 stainless steel
Fully potted
24V DC
Allen Bradley Push Button, 30.5mm Diameter, Stainless Steel- 800K-30FMN24X10
Choose this push button from Rockwell Automation's Allen Bradley range to control the action of industrial equipment. It's made from corrosion-resistant stainless steel for durability, so it can withstand the impacts and harsh conditions associated with industrial workplaces. The surface is crevice-free, which enables thorough cleaning as there are fewer places to trap contaminants. For this reason, the button is a smart choice for use in environments where regular sanitisation procedures are essential. There's minimal chance of mechanical failure thanks to the button's piezoelectric circuit technology, which works without moving parts.
• Lifespan of 50 million cycles for peace of mind
• Panel-mount style for straightforward installation
• Safely operates between -25°C and +70°C, so you can use it in demanding conditions
• NO configuration for energy efficiency
• Widely compatible thanks to a maximum voltage rating of 24V DC
• Panel-mount style for straightforward installation
• Safely operates between -25°C and +70°C, so you can use it in demanding conditions
• NO configuration for energy efficiency
• Widely compatible thanks to a maximum voltage rating of 24V DC
Standards and Certifications
• ECOLAB chemical resistance
• UL508
• EN IEC 60947
• CSA
• UL508
• EN IEC 60947
• CSA
Does this device have an IP rating?
Yes, its stainless steel housing is IP69K-rated. This means it's protected against high-pressure and high-temperature washdowns for safe use in industrial environments.
800K Series Pushbuttons and Indicators
