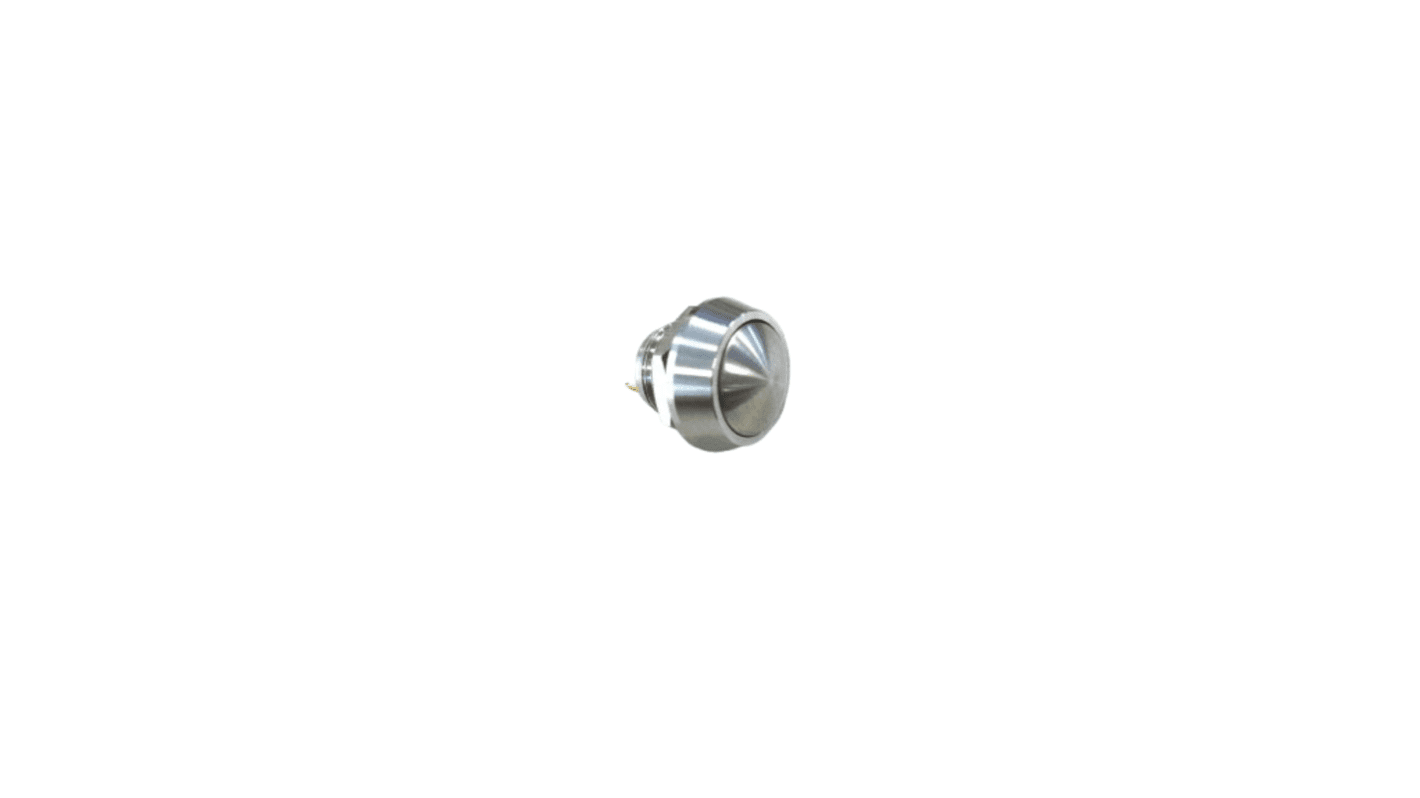

Bulgin MMP0120 Series Push Button Switch, Momentary, Panel Mount, 12mm Cutout, SPST, 36V dc, IP67

View all Push Button Switches
Bulk discount available

Subtotal (1 unit)*

£12.35

(exc. VAT)

£14.82

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 86 unit(s) ready to ship
  • Plus 5 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 9£12.35
10 - 24£11.76
25 - 49£11.16
50 - 99£10.63
100 +£10.39

*price indicative

RS Stock No.:
127-8499
Distrelec Article No.:
303-88-949
Mfr. Part No.:
MMP0120/NNBS
Brand:
Bulgin
Find similar products by selecting one or more attributes.
Select all

Brand

Bulgin

Switch Operation

Momentary

Illuminated

No

Series

MMP0120

Panel Cut Out Diameter

12mm

Mounting Type

Panel Mount

Push Button Colour

Silver

Contact Configuration

SPST

Voltage Rating

36V dc

Push Button Style

Round

IP Rating

IP67

Push Button Diameter

12.6mm

Contact Current Rating

2 A

Contact Material

Silver Alloy

Legend

(Blank)

Contact AC Voltage Rating

36V

Contact DC Voltage Rating

36V

Manufacturer Part No.

MMP0120/NNBS

Maximum Operating Temperature

+55°C

Terminal Type

Screw

Maximum AC Voltage

36V

Operating Temperature Range

-25 → +55°C

Minimum Operating Temperature

-25°C

Maximum DC Voltage

36V

COO (Country of Origin):
CN

Vandal Resistant Pushbutton Switches - MMP0120 Series


Features and Benefits

• 12mm diameter, raised domed profile
• Front Panel Sealed to IP65, some variants also available to IP67 (part codes containing 67)
• Illuminated versions
• Choice of Termination, depending on part code suffix: S - Screw Terminals, P - 2mm x 0.5mm Pin Terminals
• Choice of body material and button material, depending on part code:
- Stainless Steel body and button: /SSS
- Nickel Plated Brass body and button: /NNB
- Black Anodized Aluminium body: /A with PBT button in a choice of colour: RD - Red, GN - Green, BL - Blue, BK - Black

Bulgin MMP0120 Series Push Button Switch, 12mm Panel Cut Out Diameter, 2A Contact Current Rating - MMP0120/NNBS


This push button switch is a durable electrical component designed for panel mounting applications. With a 12mm diameter and a sleek silver finish, it offers aesthetic appeal while ensuring reliable performance. Its momentary operation provides an efficient solution for various automation and control tasks, operating within a temperature range of -25°C to +55°C.

Features & Benefits


• Momentary switch enhances control in automation tasks
• Silver alloy contacts ensure reliable electrical conduction
• Lightweight design facilitates easy installation in panels
• 2A contact current rating supports high current requirements
• Panel mount configuration streamlines integration into systems

Applications


• Used for controlling machinery in industrial environments
• Ideal for requiring a momentary action switch
• Effective in electronic devices requiring reliable user input

What is the operational temperature range for this product?


The operational temperature range extends from -25°C to +55°C, making it suitable for various environments.

How does the IP67 rating benefit installation in outdoor applications?


The IP67 rating ensures protection against dust and immersion in water, enabling reliable operation in harsh outdoor conditions.

What type of electrical connections does this switch utilise?


It features screw terminal connections, providing secure and straightforward wiring during installation.

How does the momentary action of this switch function in practical applications?


The momentary action allows the switch to remain active only when pressed, making it ideal for temporary control tasks.

How many mechanical operations can I expect this switch to endure?


This switch is rated for a minimum of 500,000 mechanical operations, ensuring long-lasting performance in demanding situations.
