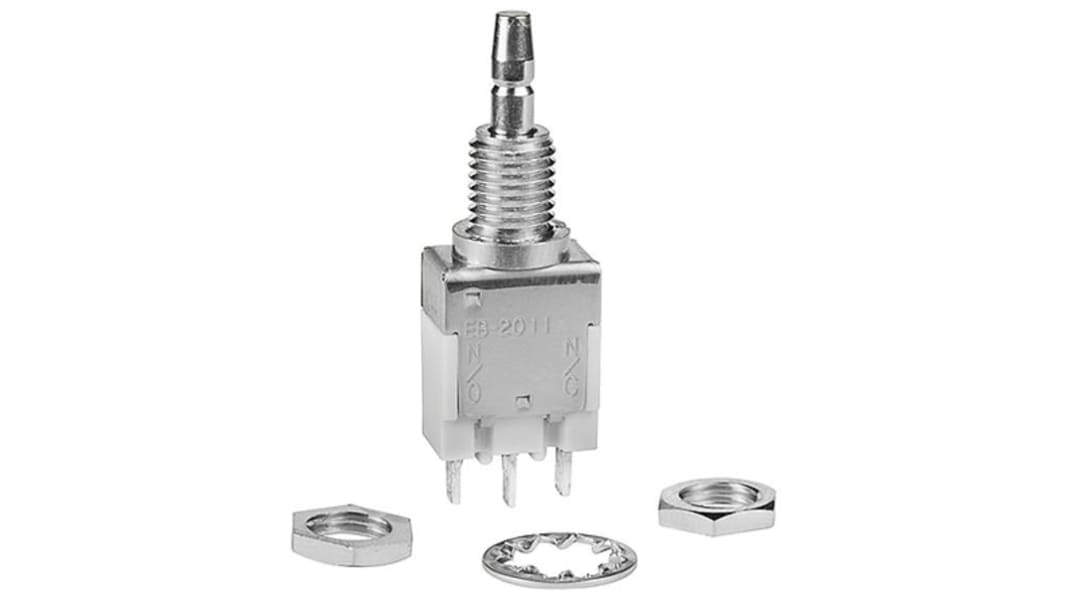

NKK Switches EB Series Push Button Switch, Momentary, Bush, 6.35 mm Cutout, SPDT, 28 V dc 125 V ac
- RS Stock No.:
- 125-1696
- Mfr. Part No.:
- EB2011
- Brand:
- NKK Switches
Bulk discount available
Subtotal (1 unit)*
£5.12
(exc. VAT)
£6.14
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 7 unit(s) ready to ship
- Plus 240 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £5.12 |
| 5 - 19 | £4.85 |
| 20 - 99 | £4.62 |
| 100 + | £4.47 |
*price indicative
- RS Stock No.:
- 125-1696
- Mfr. Part No.:
- EB2011
- Brand:
- NKK Switches
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NKK Switches | |
| Product Type | Push Button Switch | |
| Switch Operation | Momentary | |
| Illuminated | No | |
| Panel Cutout Size | 6.35 mm | |
| Series | EB | |
| Mount Type | Bush | |
| Contact Configuration | SPDT | |
| Terminal Type | Solder Lug | |
| Minimum Operating Temperature | -10°C | |
| Actuator Style | Round | |
| Contact DC Voltage | 28V dc | |
| Contact AC Voltage | 125V ac | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | UL, RoHS, CSA | |
| Switch Contact Current | 3 A | |
| Select all | ||
|---|---|---|
Brand NKK Switches | ||
Product Type Push Button Switch | ||
Switch Operation Momentary | ||
Illuminated No | ||
Panel Cutout Size 6.35 mm | ||
Series EB | ||
Mount Type Bush | ||
Contact Configuration SPDT | ||
Terminal Type Solder Lug | ||
Minimum Operating Temperature -10°C | ||
Actuator Style Round | ||
Contact DC Voltage 28V dc | ||
Contact AC Voltage 125V ac | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals UL, RoHS, CSA | ||
Switch Contact Current 3 A | ||
- COO (Country of Origin):
- CN
NKK Light Touch Miniature Pushbutton Switches EB Series
EB Series pushbuttons come with power and logic level capabilities designed for various applications.
Features and Benefits
Light touch actuation
High torque bushing
Stainless steel frame - Corrosion resistant
Heat resistant resin case
High insulating barriers
1,500V dielectric strength between contacts and case
Epoxy sealed terminals
NKK Pushbutton Switches
Standards
UL94V-0 Case, UL File No. E44145, CSA File No. 023535_0_000
