EAO 82 Series Push Button Switch, Momentary, Panel, 22 mm Cutout, SPDT, IP65, IP67, 240 V dc 240 V ac
- RS Stock No.:
- 124-4500
- Distrelec Article No.:
- 303-16-471
- Mfr. Part No.:
- 82-6161.1000
- Brand:
- EAO
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£19.51
(exc. VAT)
£23.41
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 84 unit(s) shipping from 24 August 2026
- Plus 23 unit(s) shipping from 24 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £19.51 |
| 10 - 24 | £18.47 |
| 25 - 49 | £17.59 |
| 50 - 149 | £16.72 |
| 150 + | £15.88 |
*price indicative
- RS Stock No.:
- 124-4500
- Distrelec Article No.:
- 303-16-471
- Mfr. Part No.:
- 82-6161.1000
- Brand:
- EAO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EAO | |
| Actuator Colour | Silver | |
| Product Type | Push Button Switch | |
| Switch Operation | Momentary | |
| Illuminated | No | |
| Panel Cutout Size | 22 mm | |
| Series | 82 | |
| Mount Type | Panel | |
| Contact Configuration | SPDT | |
| IP Rating | IP65, IP67 | |
| Actuator Style | Round | |
| Minimum Operating Temperature | -30°C | |
| Contact AC Voltage | 240V ac | |
| Contact DC Voltage | 240V dc | |
| Maximum Operating Temperature | 70°C | |
| Length | 36.3mm | |
| Switch Contact Current | 3A | |
| Standards/Approvals | RoHS | |
| Legend | Blank | |
| Select all | ||
|---|---|---|
Brand EAO | ||
Actuator Colour Silver | ||
Product Type Push Button Switch | ||
Switch Operation Momentary | ||
Illuminated No | ||
Panel Cutout Size 22 mm | ||
Series 82 | ||
Mount Type Panel | ||
Contact Configuration SPDT | ||
IP Rating IP65, IP67 | ||
Actuator Style Round | ||
Minimum Operating Temperature -30°C | ||
Contact AC Voltage 240V ac | ||
Contact DC Voltage 240V dc | ||
Maximum Operating Temperature 70°C | ||
Length 36.3mm | ||
Switch Contact Current 3A | ||
Standards/Approvals RoHS | ||
Legend Blank | ||
- COO (Country of Origin):
- CH

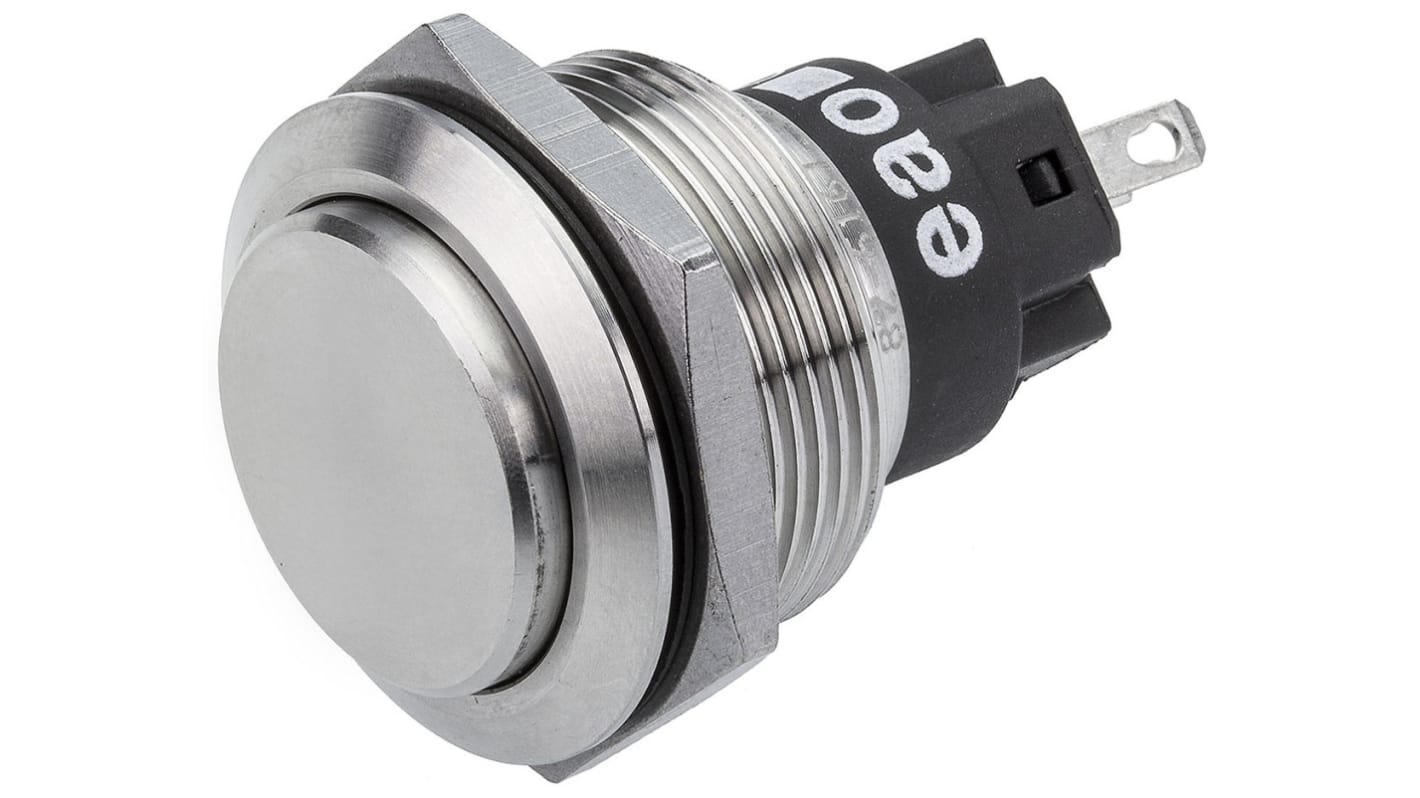

EAO Push Button Switch, Stainless Steel Housing Material, 3A Current Rating - 82 Series - 82-6161.1000
Put your machine in action using this push button switch from EAO. When you press it, the contacts change state and send a signal to the circuits to turn on or off. Its momentary switching action means it remains on as long as you keep your finger on the bezel, so you'll find it a handy companion for temporarily activating your electronics. Impacts and corrosion have got nothing on this unit thanks to its tough stainless steel housing.
Features & Benefits
• Durable silver alloy contacts are highly conductive and corrosion-resistant for a reliable connection
• Wide operating temperature range between -30°C and +70°C to withstand demanding environments
• Snap-action switching element for rapid results
• Flush mounting design helps reduce the risk of accidental activation
• Plug-in terminal for convenient mounting
Applications
• Control panels
• Medical devices
• Consumer electronics
• Security systems
• Transport and logistics
Where should I mount this push button?
You can install this push button by inserting it into an opening in your control panel. Its industry-standard cut-out diameter of 22.3mm means it'll easily fit into your existing panel.
