EAO Series 09 Series Push Button Switch, Momentary, Panel, 30 mm Cutout, 1 NO, IP67 48 V ac
- RS Stock No.:
- 665-230
- Mfr. Part No.:
- 09-RS.1101.0900.M006
- Brand:
- EAO
Subtotal (1 unit)*
£25.06
(exc. VAT)
£30.07
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 11 unit(s) ready to ship
- Plus 4 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £25.06 |
*price indicative
- RS Stock No.:
- 665-230
- Mfr. Part No.:
- 09-RS.1101.0900.M006
- Brand:
- EAO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EAO | |
| Actuator Colour | Black | |
| Product Type | Push Button Switch | |
| Switch Operation | Momentary | |
| Illuminated | No | |
| Series | Series 09 | |
| Panel Cutout Size | 30 mm | |
| Mount Type | Panel | |
| Contact Configuration | 1 NO | |
| IP Rating | IP67 | |
| Minimum Operating Temperature | -20°C | |
| Contact AC Voltage | 48V ac | |
| Maximum Operating Temperature | 100°C | |
| Standards/Approvals | CE, RoHS, REACH | |
| Select all | ||
|---|---|---|
Brand EAO | ||
Actuator Colour Black | ||
Product Type Push Button Switch | ||
Switch Operation Momentary | ||
Illuminated No | ||
Series Series 09 | ||
Panel Cutout Size 30 mm | ||
Mount Type Panel | ||
Contact Configuration 1 NO | ||
IP Rating IP67 | ||
Minimum Operating Temperature -20°C | ||
Contact AC Voltage 48V ac | ||
Maximum Operating Temperature 100°C | ||
Standards/Approvals CE, RoHS, REACH | ||
- COO (Country of Origin):
- DE

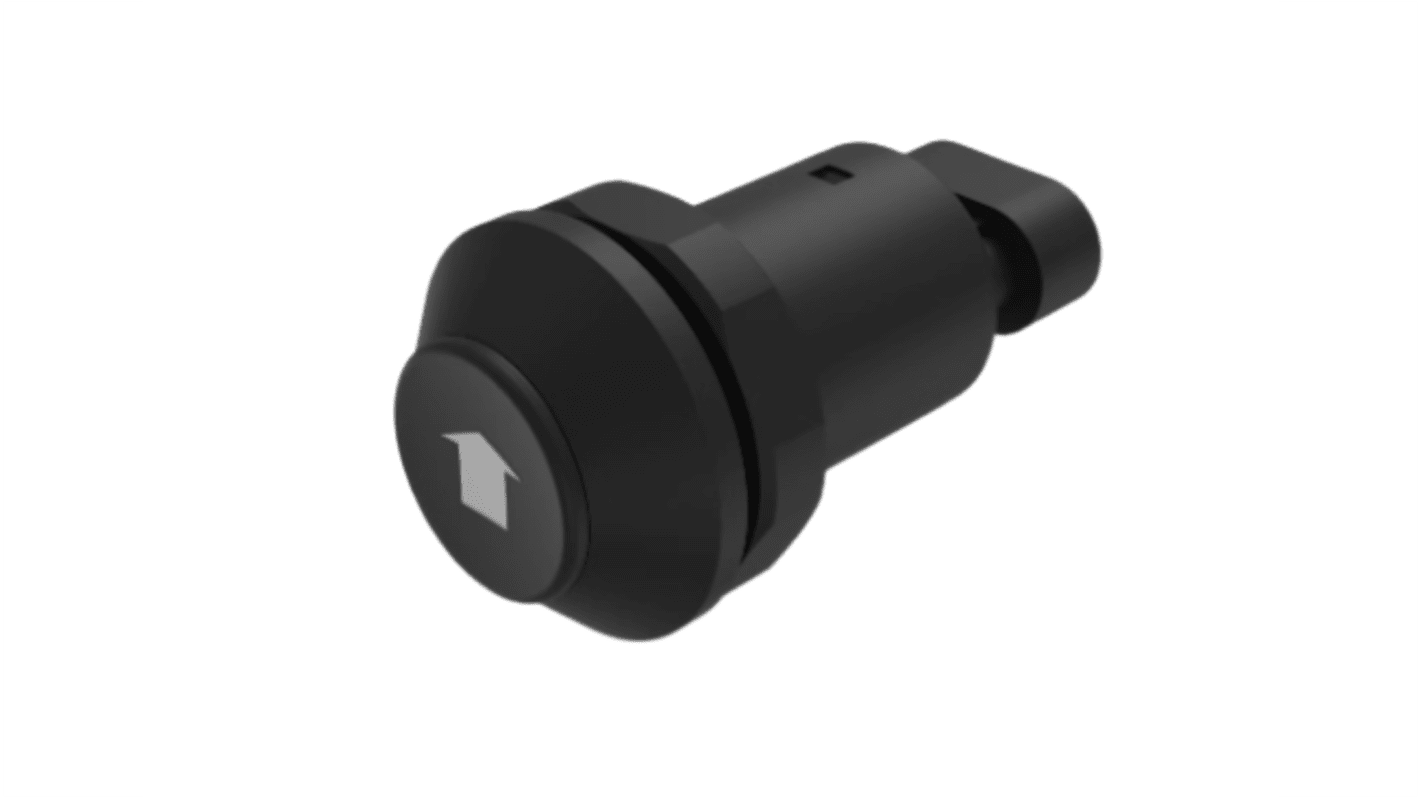

The EAO Rugged Outdoor Switch is a momentary switch designed for tough environments, operating at 48 V DC with 0.5 A and a voltage range of 12 to 48 V DC. It features a single normally open (NO) contact and comes with a 1.5 Series AMP Superseal 3 pin connector, round in shape and made from durable plastic. The switch is black and marked with an arrow symbol, providing clear directional indication for signalling or control purposes in industrial or outdoor settings where visibility, reliability, and ruggedness are essential.
IP67 protection according to ISO 20653
REACH and RoHS compliant
Vibration resistance
Climate resistance
