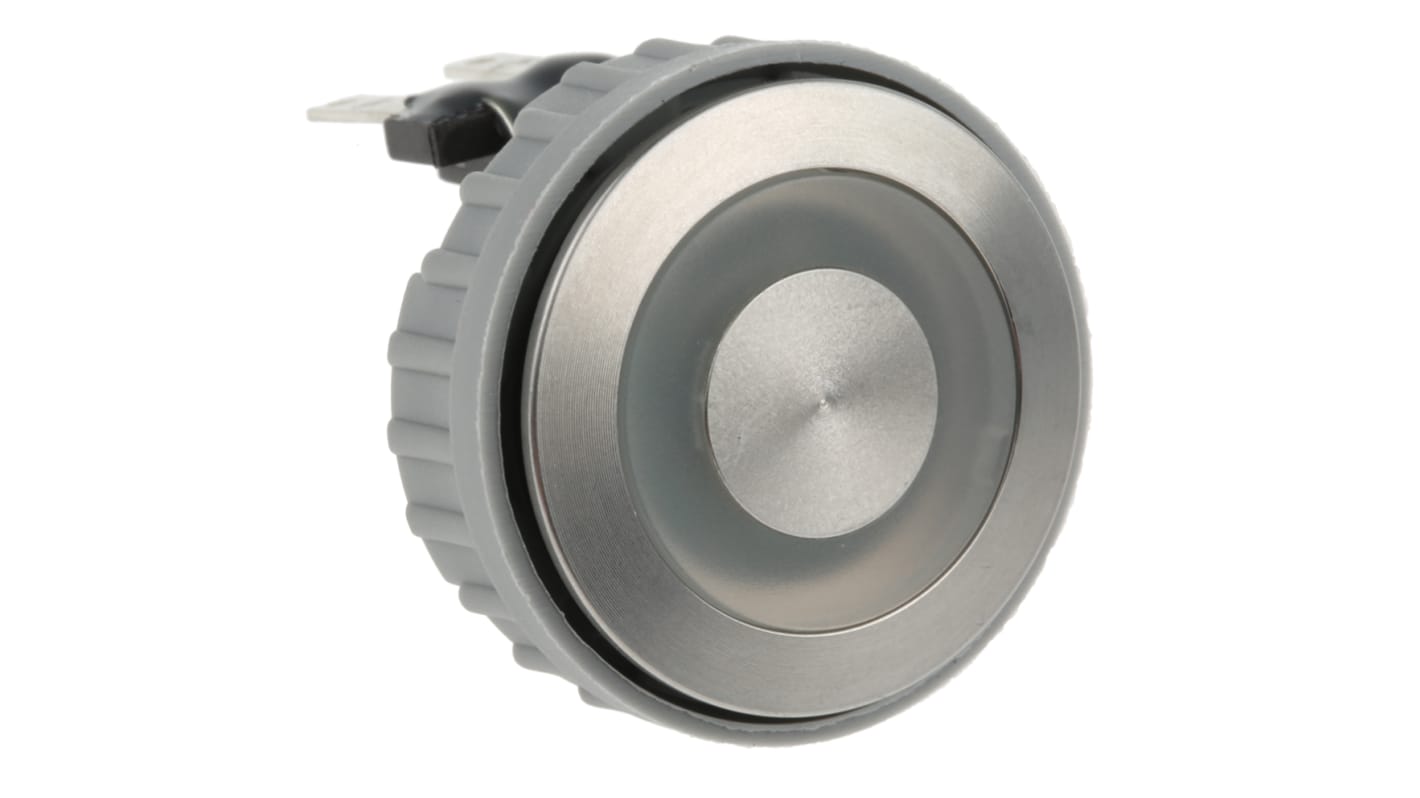

Schurter Single Pole Double Throw (SPDT) Momentary Green LED Push Button Switch, Screw Mount, 125/250V ac

  • RS Stock No. 436-923
  • Mfr. Part No. 1241.6934.1122000
  • Brand Schurter
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CH
Product Details

Anti-Vandal M19 & M22 Push Button Switches - MSM Series (Double Pole)

Robust pushbutton switch suitable for use in harsh environments - IK07 shock resistance (DIN EN 50102)
Stainless steel housing and momentary actuator - IP40 DPDT microswitch
Designed with two separate switching contacts - can be configured as normally open, normally closed or change-over
Can be used in applications where an additional second contact is required, e.g. emergency switching
Actuator with 5N operating force and 1mm travel - protrudes 1.7mm above panel
Quick connect terminals
Long life - up to 1,500,000 mechanical operations
Non illuminated or red, green or blue LED ring illuminated (requires 24Vdc supply & series resistor) versions available in 19 or 22mm Ø panel cut outs

Approvals

ENEC, UL, CSA

//media.rs-online.com/t_line/L0436878-01.gif
Specifications
Attribute Value
Switch Operation Momentary
Mounting Type Screw Mount
Illuminated Yes
Contact Configuration Single Pole Double Throw (SPDT)
Panel Cut Out Diameter 22mm
LED Colour Green
Actuator Colour Green
Voltage Rating 125/250V ac
Contact Current Rating 10 A @ 250 V ac
Actuator Shape Round
Terminal Type Tab
24 In stock for FREE next working day delivery
Price Each
£ 38.76
(exc. VAT)
£ 46.51
(inc. VAT)
Units
Per unit
1 - 4
£38.76
5 +
£36.83
