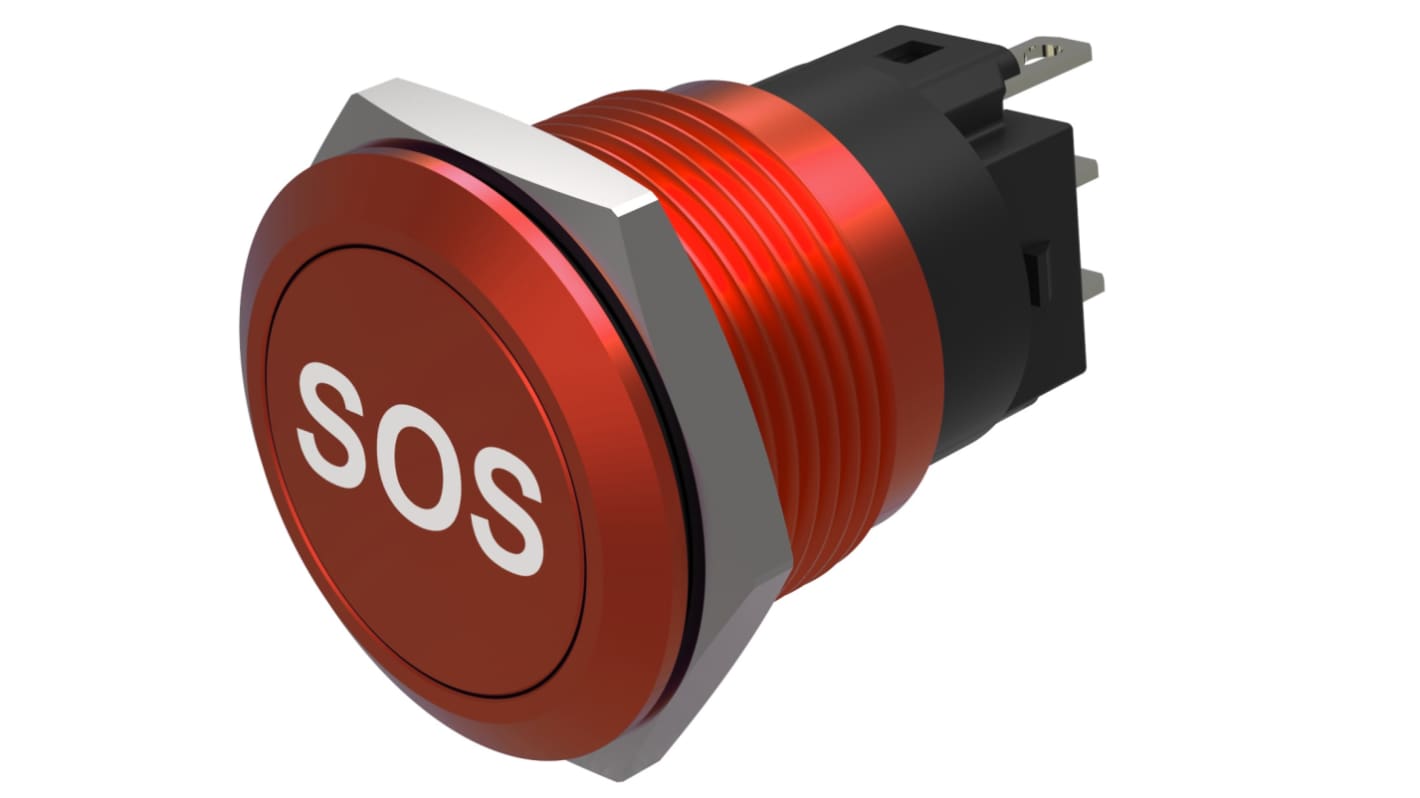

EAO Series 82 Series Push Button Switch, Momentary, 19 mm Cutout, SPST, Red LED, IP65, IP67
- RS Stock No.:
- 427-579
- Mfr. Part No.:
- 82-5751.1000.B015
- Brand:
- EAO
Subtotal (1 unit)*
£35.42
(exc. VAT)
£42.50
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £35.42 |
*price indicative
- RS Stock No.:
- 427-579
- Mfr. Part No.:
- 82-5751.1000.B015
- Brand:
- EAO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EAO | |
| Switch Operation | Momentary | |
| Actuator Colour | Red | |
| Product Type | Push Button Switch | |
| Illuminated | No | |
| Series | Series 82 | |
| Panel Cutout Size | 19 mm | |
| Contact Configuration | SPST | |
| Terminal Type | Solder | |
| LED Colour | Red | |
| IP Rating | IP65, IP67 | |
| Minimum Operating Temperature | -30°C | |
| Switch Configuration | Momentary | |
| Maximum Operating Temperature | 70°C | |
| Height | 22mm | |
| Length | 35.5mm | |
| Standards/Approvals | CB, CCC, cUL, UL | |
| Width | 22 mm | |
| Legend | SOS | |
| Select all | ||
|---|---|---|
Brand EAO | ||
Switch Operation Momentary | ||
Actuator Colour Red | ||
Product Type Push Button Switch | ||
Illuminated No | ||
Series Series 82 | ||
Panel Cutout Size 19 mm | ||
Contact Configuration SPST | ||
Terminal Type Solder | ||
LED Colour Red | ||
IP Rating IP65, IP67 | ||
Minimum Operating Temperature -30°C | ||
Switch Configuration Momentary | ||
Maximum Operating Temperature 70°C | ||
Height 22mm | ||
Length 35.5mm | ||
Standards/Approvals CB, CCC, cUL, UL | ||
Width 22 mm | ||
Legend SOS | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CH
The EAO push button with momentary action and vandal-resistant is impact-resistant to IK10 and offers front protection up to IP67. Gold contacts are available for low voltages and currents, with optional illumination and laser markings. It provides excellent tactile feedback and boasts a long service life of over 1 million cycles of operation.
Stainless steel, anodized aluminum, or brass colored switches
Mounting 19 mm
