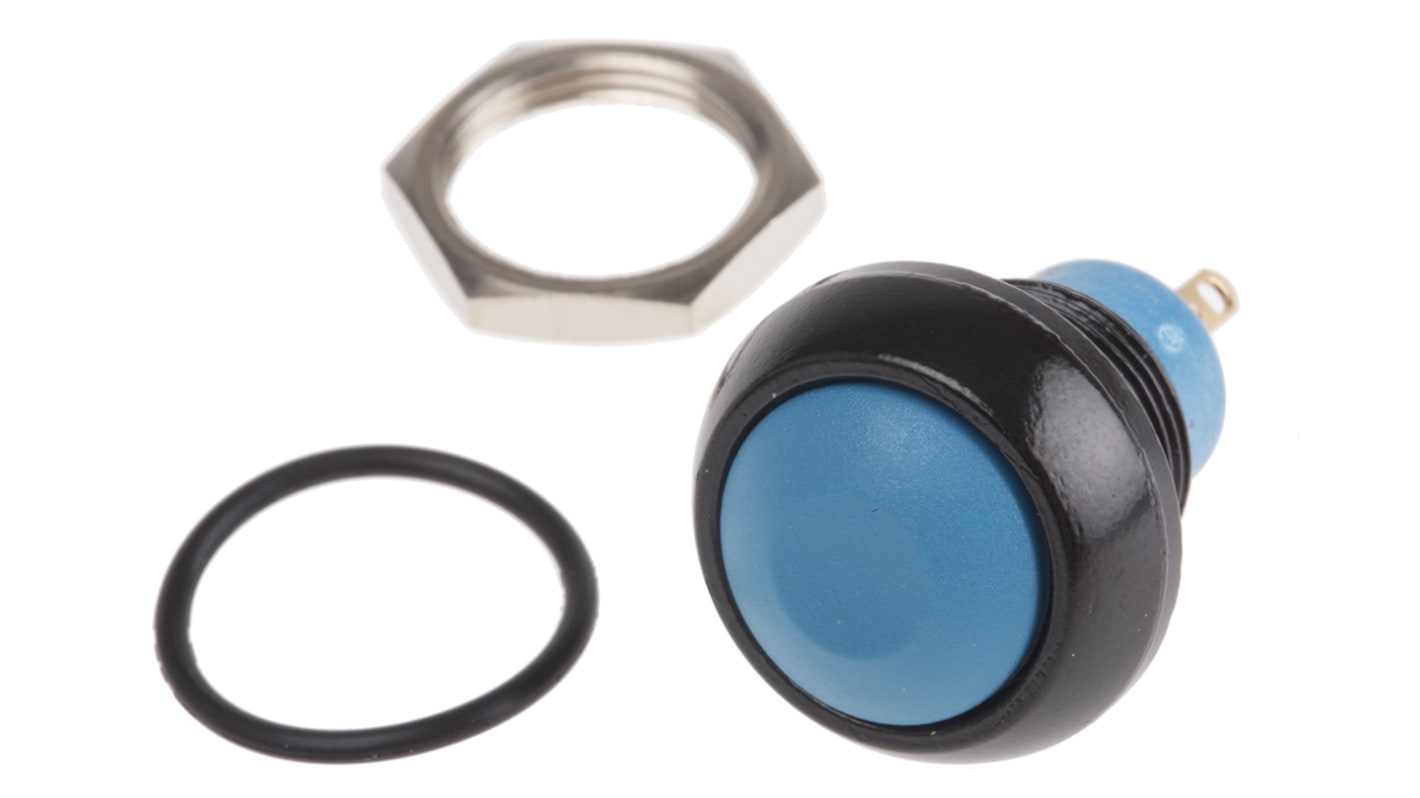

APEM IP Series Push Button Switch, Momentary, Panel, 13.6 mm Cutout, SPST, IP67, 28 V dc 250 V ac
- RS Stock No.:
- 224-760
- Distrelec Article No.:
- 135-53-335
- Mfr. Part No.:
- IPR3SAD1
- Brand:
- APEM
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£14.35
(exc. VAT)
£17.22
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 144 unit(s) shipping from 01 June 2026
- Plus 79 unit(s) shipping from 01 June 2026
- Plus 450 unit(s) shipping from 09 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £14.35 |
| 10 - 49 | £12.92 |
| 50 - 99 | £10.77 |
| 100 - 249 | £10.06 |
| 250 + | £9.18 |
*price indicative
- RS Stock No.:
- 224-760
- Distrelec Article No.:
- 135-53-335
- Mfr. Part No.:
- IPR3SAD1
- Brand:
- APEM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | APEM | |
| Actuator Colour | Blue | |
| Switch Operation | Momentary | |
| Product Type | Push Button Switch | |
| Illuminated | No | |
| Panel Cutout Size | 13.6 mm | |
| Series | IP | |
| Mount Type | Panel | |
| Contact Configuration | SPST | |
| Terminal Type | Solder | |
| IP Rating | IP67 | |
| Minimum Operating Temperature | -40°C | |
| Contact DC Voltage | 28V dc | |
| Contact AC Voltage | 250V ac | |
| Actuator Style | Dome | |
| Switch Configuration | SP (NO) | |
| Maximum Operating Temperature | 85°C | |
| Switch Contact Current | 5A | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand APEM | ||
Actuator Colour Blue | ||
Switch Operation Momentary | ||
Product Type Push Button Switch | ||
Illuminated No | ||
Panel Cutout Size 13.6 mm | ||
Series IP | ||
Mount Type Panel | ||
Contact Configuration SPST | ||
Terminal Type Solder | ||
IP Rating IP67 | ||
Minimum Operating Temperature -40°C | ||
Contact DC Voltage 28V dc | ||
Contact AC Voltage 250V ac | ||
Actuator Style Dome | ||
Switch Configuration SP (NO) | ||
Maximum Operating Temperature 85°C | ||
Switch Contact Current 5A | ||
Standards/Approvals RoHS | ||
- COO (Country of Origin):
- FR
Momentary pushbutton switches IP 67 Series IP – lug terminals, ø 12mm bushing
For harsh environments.
Resistant to salt spray.
Very robust: IK06.
Excellent touch feedback.
Available in round or square version.
Standards
EN 50102 - IEC 512-4 - IEC 512-6
