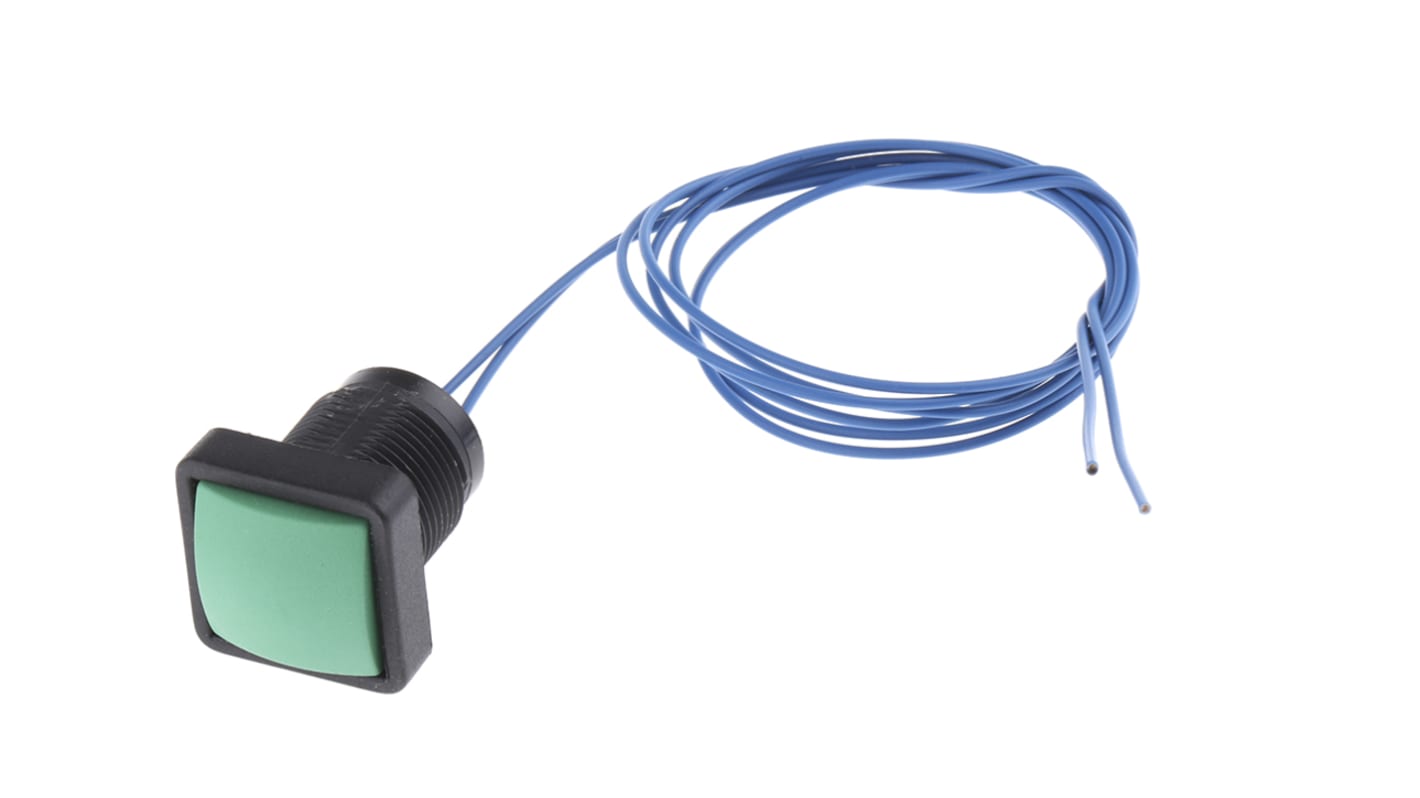

ITW Switches 49-59 Series Push Button Switch, Momentary, Panel Mount, 16mm Cutout, SPST, Clear LED, 250V ac, IP67
- RS Stock No.:
- 198-309
- Mfr. Part No.:
- 49-59213
- Brand:
- ITW Switches
104 In stock - FREE next working day delivery available
Added
Price Each
£10.40
(exc. VAT)
£12.48
(inc. VAT)
Units | Per unit |
1 - 9 | £10.40 |
10 - 49 | £9.57 |
50 - 99 | £8.84 |
100 - 249 | £8.11 |
250 + | £6.77 |
- RS Stock No.:
- 198-309
- Mfr. Part No.:
- 49-59213
- Brand:
- ITW Switches
Technical Reference
Legislation and Compliance
Product Details
Push-button Switches, Min Sealed, Flying Leads
These 49-59 series are a range of momentary action push button switches from ITW, that can be used across a number of industries and applications such as:-
• Communications
• Data Processing
• Military Environments
• Instrumentation
• Transport Controls
• Environmentally demanding keypads
• Data Processing
• Military Environments
• Instrumentation
• Transport Controls
• Environmentally demanding keypads
Features and Benefits
• Fully sealed up to IP67 with insulated flying leads, 500mm in length. (IP67 - totally protected against dust and protected against the effects of temporary immersion between 15cm and 1m. Duration of test 30 minutes).
• Panel sealed IP67 version which is terminated by a series 16 microswitch. (IP67 - totally protected against dust and protected against the effects of temporary immersion between 15cm and 1m. Duration of test 30 minutes).
• Switches fit the industrial standard, a diameter of 16mm panel cut out.
• Can be used over a wide temperature range.
• Series are available as either round, round with illumination (flying leads only) or square bezels, all with 6 button custom colours.
• The body and button are made from polybutylene terephthalate (PBT) a hard wearing thermoplastic engineered polymer thats widely used as an insulator across the electronics industry.
• Panel sealed IP67 version which is terminated by a series 16 microswitch. (IP67 - totally protected against dust and protected against the effects of temporary immersion between 15cm and 1m. Duration of test 30 minutes).
• Switches fit the industrial standard, a diameter of 16mm panel cut out.
• Can be used over a wide temperature range.
• Series are available as either round, round with illumination (flying leads only) or square bezels, all with 6 button custom colours.
• The body and button are made from polybutylene terephthalate (PBT) a hard wearing thermoplastic engineered polymer thats widely used as an insulator across the electronics industry.
Specifications
Attribute | Value |
---|---|
Switch Operation | Momentary |
Illuminated | No |
Panel Cut Out Diameter | 16mm |
Mounting Type | Panel Mount |
Push Button Colour | Green |
Contact Configuration | SPST |
Voltage Rating | 250V ac |
Push Button Style | Round |
LED Colour | Clear |
IP Rating | IP67 |
Series | 49-59 |
Contact Current Rating | 10 A @ 250 V ac |
Contact Material | Gold Plated |
Contact DC Voltage Rating | 50V |
Case Colour | Black |
Contact AC Voltage Rating | 250V |
Manufacturer Part No. | 49-59213 |
Minimum Operating Temperature | -35°C |
Maximum Operating Temperature | +85°C |
Terminal Type | Wire Lead |
Operating Temperature Range | -35 → +85°C |
