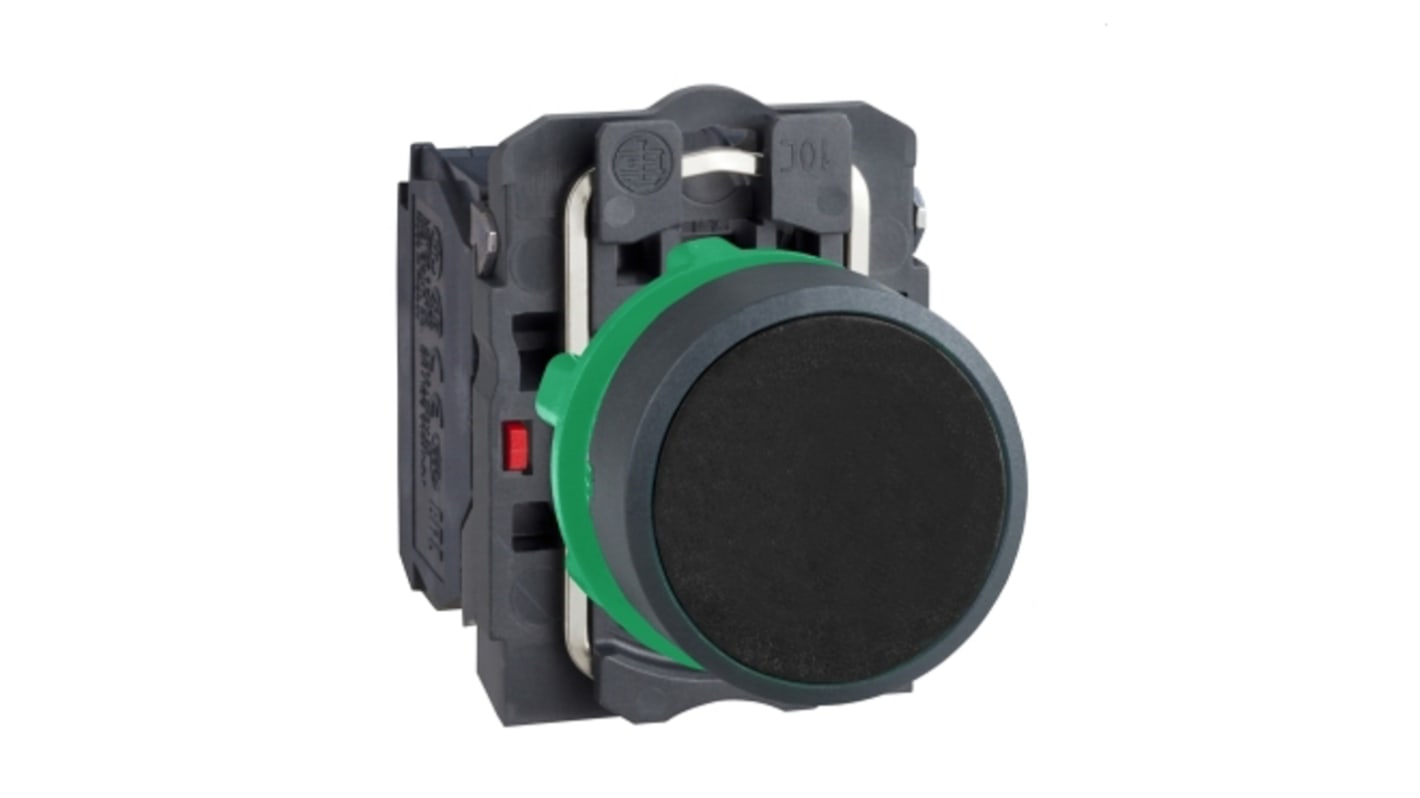

Schneider Electric Harmony Series Push Button, Slow Brake, Panel Mount, 22mm Cutout, SPDT, 600V, IP66, IP67, IP69(IP69K)
- RS Stock No.:
- 178-550
- Mfr. Part No.:
- XB5AA25
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£18.24
(exc. VAT)
£21.89
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 16 unit(s) ready to ship
- Plus 13 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £18.24 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 178-550
- Mfr. Part No.:
- XB5AA25
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Switch Operation | Slow Brake | |
| Illuminated | No | |
| Panel Cut Out Diameter | 22mm | |
| Series | Harmony | |
| Mounting Type | Panel Mount | |
| Push Button Colour | Black | |
| Contact Configuration | SPDT | |
| Voltage Rating | 600V | |
| Push Button Style | Round | |
| IP Rating | IP66, IP67, IP69(IP69K) | |
| Push Button Material | Plastic (Bezel) | |
| Contact Current Rating | 3A | |
| Better World Verification | Green Premium | |
| Contact Material | Silver Alloy | |
| Better World Product | Yes | |
| Manufacturer Part No. | XB5AA25 | |
| Maximum Operating Temperature | +70°C | |
| Maximum DC Voltage | 600V | |
| Operating Temperature Range | -40 → +70°C | |
| Terminal Type | Screw | |
| Maximum AC Voltage | 600V | |
| Minimum Operating Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Switch Operation Slow Brake | ||
Illuminated No | ||
Panel Cut Out Diameter 22mm | ||
Series Harmony | ||
Mounting Type Panel Mount | ||
Push Button Colour Black | ||
Contact Configuration SPDT | ||
Voltage Rating 600V | ||
Push Button Style Round | ||
IP Rating IP66, IP67, IP69(IP69K) | ||
Push Button Material Plastic (Bezel) | ||
Contact Current Rating 3A | ||
Better World Verification Green Premium | ||
Contact Material Silver Alloy | ||
Better World Product Yes | ||
Manufacturer Part No. XB5AA25 | ||
Maximum Operating Temperature +70°C | ||
Maximum DC Voltage 600V | ||
Operating Temperature Range -40 → +70°C | ||
Terminal Type Screw | ||
Maximum AC Voltage 600V | ||
Minimum Operating Temperature -40°C | ||
RoHS Status: Exempt
Schneider Electric Harmony XB5 Series Push Button, 22mm Panel Cut Out Diameter, SPDT Contact Configuration - XB5AA25
This push button switch serves as a versatile component for panel mounting applications in industrial environments. Its sturdy construction and performance make it suitable for diverse automation tasks, ensuring effective operation across electrical and mechanical sectors.
Features & Benefits
• Black flush design for seamless integration into panels
• Spring return functionality allows for immediate reset
• SPDT contact configuration enables flexible circuit control
• High voltage capability of 600V ensures compatibility with various systems
• Mechanical durability of 10,000,000 cycles supports extended use
• Screw terminals facilitate easy and secure connections
• Spring return functionality allows for immediate reset
• SPDT contact configuration enables flexible circuit control
• High voltage capability of 600V ensures compatibility with various systems
• Mechanical durability of 10,000,000 cycles supports extended use
• Screw terminals facilitate easy and secure connections
Applications
• Used in control panels for machinery operation
• Suitable for automation systems requiring dependable switching
• Effective in alarm systems for signalling purposes
• Employed in electronic equipment for circuit management
• Ideal for industrial environments with high endurance demands
• Suitable for automation systems requiring dependable switching
• Effective in alarm systems for signalling purposes
• Employed in electronic equipment for circuit management
• Ideal for industrial environments with high endurance demands
Is this switch compatible with various automation systems?
Yes, it is designed for a broad range of industrial automation applications, making it quite versatile.
What type of connections does it support?
It utilises screw clamp terminals for secure and reliable wiring.
How do I ensure proper installation?
Adhere to the provided guidelines and ensure that all connections are securely tightened to avoid issues.
What is the operational temperature range?
It operates efficiently within a temperature range of -25°C and +70°C.
Can it withstand high-pressure cleaning?
Yes, it possesses a high-pressure washer resistance rating, making it suitable for challenging environments.
