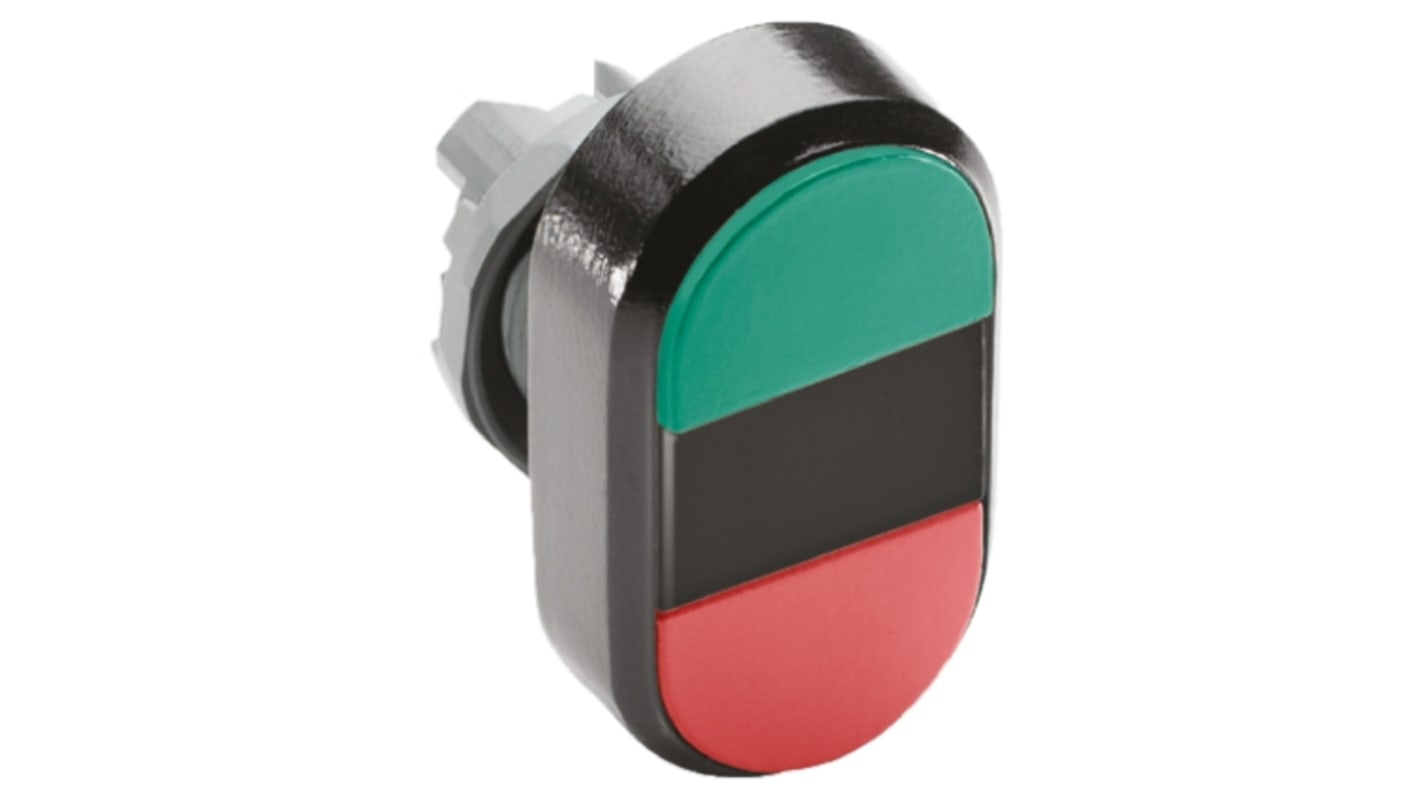

ABB ABB Modular Series Green, Red Momentary Push Button Head, 22 mm Cutout, IP66
- RS Stock No.:
- 757-8819
- Mfr. Part No.:
- 1SFA611130R1106 MPD1-11B
- Brand:
- ABB
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£15.57
(exc. VAT)
£18.68
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 6 unit(s) shipping from 22 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £15.57 |
| 5 - 9 | £14.79 |
| 10 - 24 | £14.02 |
| 25 - 49 | £13.25 |
| 50 + | £12.44 |
*price indicative
- RS Stock No.:
- 757-8819
- Mfr. Part No.:
- 1SFA611130R1106 MPD1-11B
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Product Type | Push Button Head | |
| Series | ABB Modular | |
| Cutout Diameter | 22mm | |
| Push Button Colour | Green, Red | |
| Push Button Shape | Round | |
| Push Button Actuation | Momentary | |
| Push Button Style | Round | |
| Push Button Material | Black Plastic | |
| IP Rating | IP66 | |
| Push Button Marking | Unmarked | |
| Push Button Diameter | 22mm | |
| Body/Fixing Collar Included | No | |
| Standards/Approvals | CSA C22.2 No 14, DIN 40050-9, EN 50013, IEC60947-5-5, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60947-5-5, UL 508 | |
| Hazardous Area Certification | No | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Product Type Push Button Head | ||
Series ABB Modular | ||
Cutout Diameter 22mm | ||
Push Button Colour Green, Red | ||
Push Button Shape Round | ||
Push Button Actuation Momentary | ||
Push Button Style Round | ||
Push Button Material Black Plastic | ||
IP Rating IP66 | ||
Push Button Marking Unmarked | ||
Push Button Diameter 22mm | ||
Body/Fixing Collar Included No | ||
Standards/Approvals CSA C22.2 No 14, DIN 40050-9, EN 50013, IEC60947-5-5, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60947-5-5, UL 508 | ||
Hazardous Area Certification No | ||
ABB Modular Series Push Button Head, 22mm Cutout Diameter, IP66 - 1SFA611130R1106 MPD1-11B
This push-button head is a front-panel actuator designed for control and signalling roles in industrial installations. It provides a momentary push action in a compact, round form compatible with standard 22mm cutouts and is intended for use where splash and dust protection is required. The unit is supplied as the head only and is available in green and red finishes to visually distinguish control functions.
Features and Benefits:
• IP66 enclosure rating ensures protection against strong jets of water • Momentary actuation delivers immediate, temporary contact signalling • Complies with IEC/EN 60947-5-1 for industrial control compatibility • Black plastic construction offers chemical resistance and electrical insulation • Round 22mm diameter fits common panel apertures for straightforward replacement
Applications
• Suitable for operator control panels in automated machinery • Ideal for emergency-stop indicator or start/reset interfaces • Used with modular switch blocks for machinery control assemblies • Can be used for retrofit replacements on 22mm actuator panels
What environmental resistance does it provide for washdown areas?
The front actuator meets IP66, protecting internal contacts from powerful water jets and ingress of dust, allowing use in areas requiring regular cleaning.
Which approvals indicate suitability for industrial electrical systems?
It adheres to recognised international standards including IEC/EN 60947-5-1 and related control-device norms, supporting integration into regulated control architectures.
How does the momentary action affect control logic?
The momentary push returns to its resting position immediately after release, producing short-duration contact closure suitable for pulsed inputs, start commands, or interlock signalling.
Can the head be identified by colour for different control roles?
Yes, the two available colours provide a straightforward Visual method for differentiating functions such as start/stop or status indication without additional labelling.
