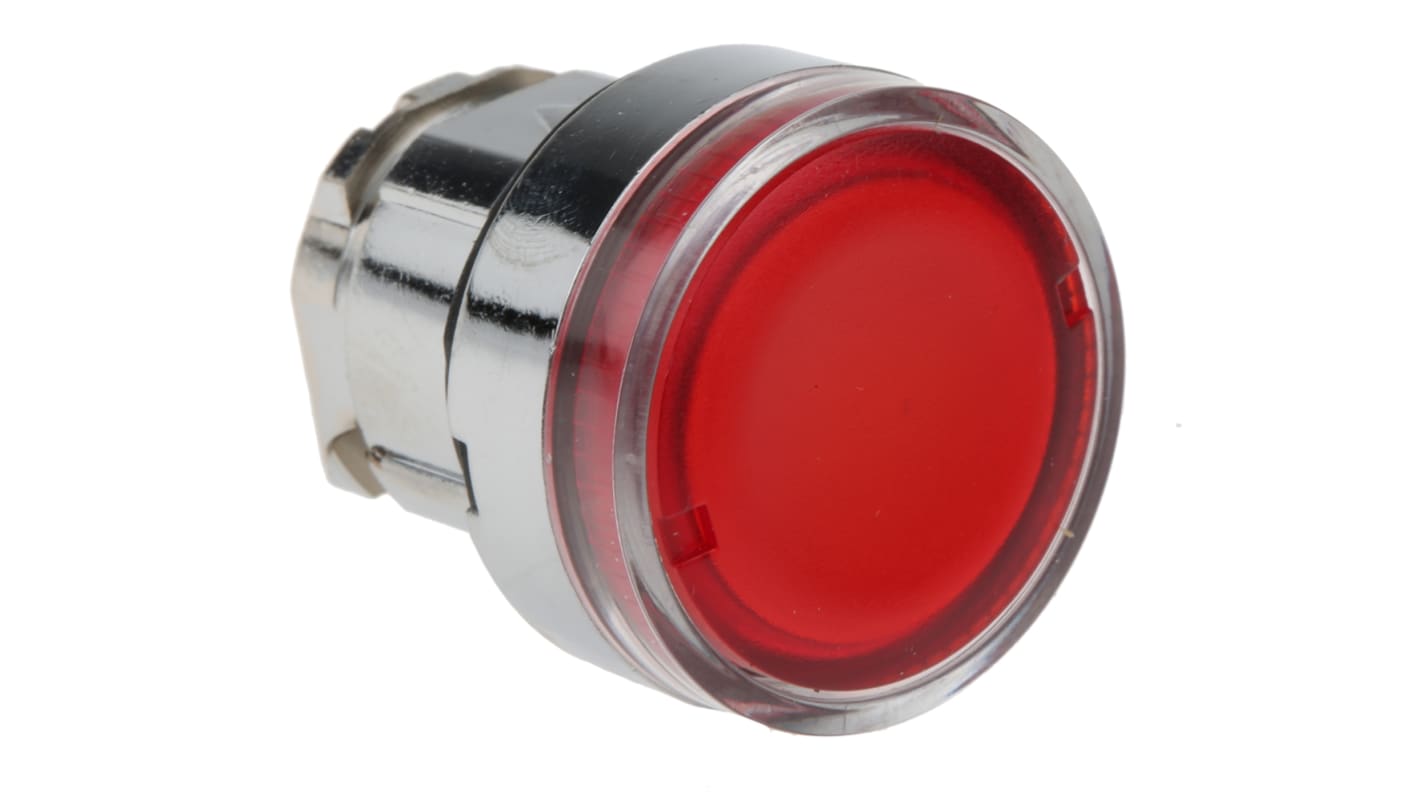

Schneider Electric Harmony XB4 Series Red Illuminated Spring Return Push Button Head, 22mm Cutout, IP66, IP67, IP69,
- RS Stock No.:
- 331-0063
- Distrelec Article No.:
- 303-02-679
- Mfr. Part No.:
- ZB4BW34
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£9.21
(exc. VAT)
£11.05
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 136 unit(s) ready to ship
- Plus 125 unit(s) ready to ship from another location
- Plus 255 unit(s) shipping from 31 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £9.21 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 331-0063
- Distrelec Article No.:
- 303-02-679
- Mfr. Part No.:
- ZB4BW34
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Series | Harmony XB4 | |
| Cutout Diameter | 22mm | |
| Push Button Colour | Red | |
| Push Button Shape | Round | |
| Push Button Actuation | Spring Return | |
| Push Button Style | Round | |
| Push Button Material | Metal | |
| IP Rating | IP66, IP67, IP69, IP69K | |
| Push Button Marking | Unmarked | |
| Push Button Diameter | 28.5mm | |
| Body/Fixing Collar Included | Yes | |
| Better World Verification | Green Premium | |
| Illuminated | Yes | |
| Better World Product | Yes | |
| Maximum Operating Temperature | +70°C | |
| Mounting Type | Panel Mount | |
| Terminal Type | Screw Clamp | |
| Minimum Operating Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Series Harmony XB4 | ||
Cutout Diameter 22mm | ||
Push Button Colour Red | ||
Push Button Shape Round | ||
Push Button Actuation Spring Return | ||
Push Button Style Round | ||
Push Button Material Metal | ||
IP Rating IP66, IP67, IP69, IP69K | ||
Push Button Marking Unmarked | ||
Push Button Diameter 28.5mm | ||
Body/Fixing Collar Included Yes | ||
Better World Verification Green Premium | ||
Illuminated Yes | ||
Better World Product Yes | ||
Maximum Operating Temperature +70°C | ||
Mounting Type Panel Mount | ||
Terminal Type Screw Clamp | ||
Minimum Operating Temperature -40°C | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CZ
Schneider Electric Harmony XB4 Series Push Button Head, 22mm Cutout Diameter, Red - ZB4BW34
This push button head is part of the illuminated range, designed for reliable operation in demanding environments. With a 22mm diameter and a striking red colour, this metal push button is equipped with a spring return mechanism, ensuring quick and effective actuation. It is capable of withstanding extreme temperatures ranging from -40 °C to +70 °C and is suitable for panel mount applications.
Features & Benefits
• IP66, IP67, IP69K rating offers protection against dust and water
• Robust metal construction ensures durability in harsh conditions
• Illuminated design enhances visibility in low-light environments
• Spring return mechanism allows for immediate reset after actuation
• Screw clamp terminal facilitates easy and secure connections
• Mechanical durability rated at 10 million cycles for longevity
• Robust metal construction ensures durability in harsh conditions
• Illuminated design enhances visibility in low-light environments
• Spring return mechanism allows for immediate reset after actuation
• Screw clamp terminal facilitates easy and secure connections
• Mechanical durability rated at 10 million cycles for longevity
Applications
• Used with BA9s bulbs for optimal illumination
• Ideal for control panels in automated systems
• Utilised in industrial machinery requiring reliable operation
• Suitable for environments exposed to high-pressure cleaning
• Perfect for signalling in emergency or critical
• Ideal for control panels in automated systems
• Utilised in industrial machinery requiring reliable operation
• Suitable for environments exposed to high-pressure cleaning
• Perfect for signalling in emergency or critical
What makes this head suitable for high-pressure environments?
The robust design features an IP69K rating, ensuring protection against high-pressure water jets, making it ideal for use in environments where cleanliness and durability are essential.
How will the spring return function enhance usability?
The spring return mechanism ensures that the button quickly resets to its original position after being pressed, allowing for efficient operation in quick-response scenarios.
What type of installation is recommended for this push button?
It is designed for panel mount installations, making it easy to integrate into existing control systems or new setups within various equipment.
Can this push button operate effectively in extreme temperatures?
Yes, it can function reliably within a temperature range of -40 °C to +70 °C, making it versatile for diverse operational environments.
