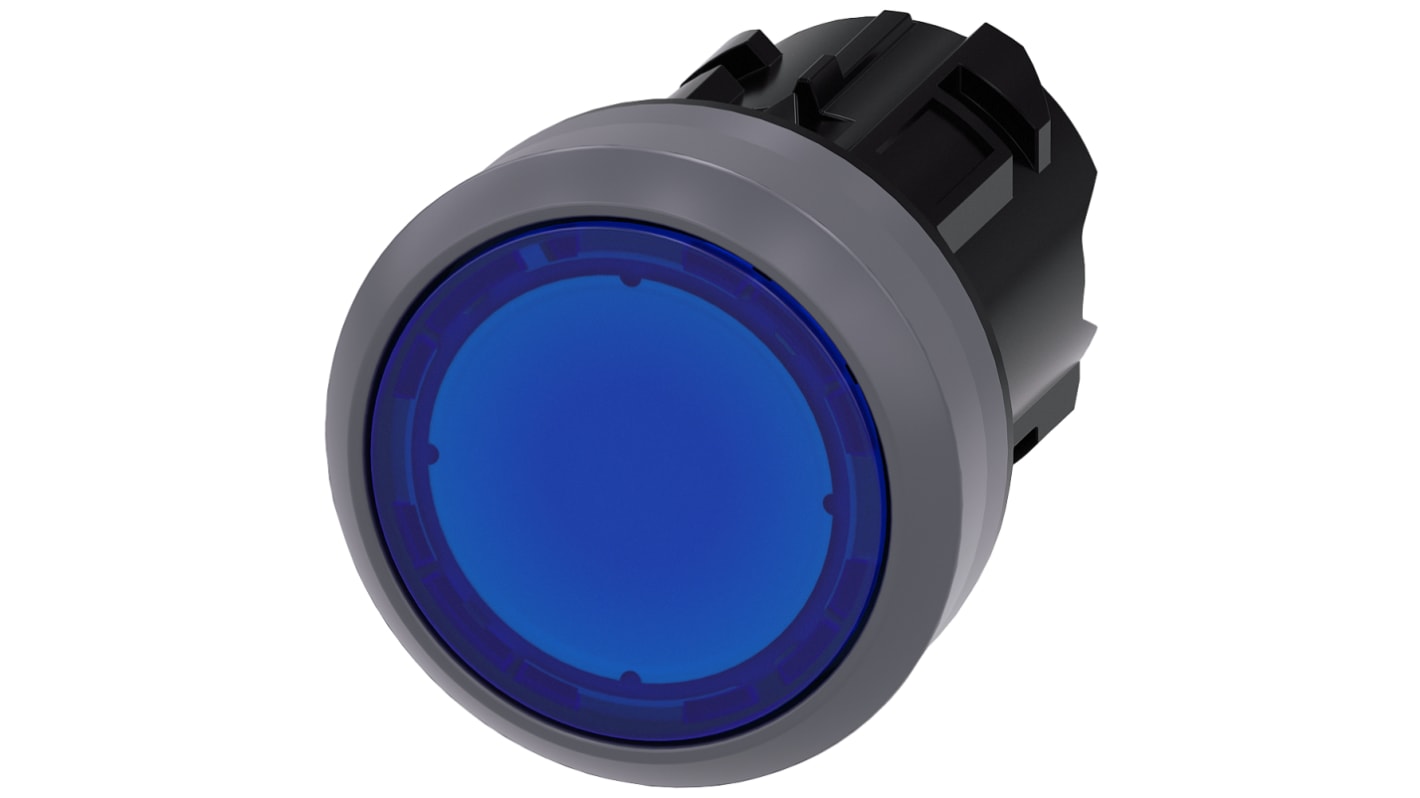

Flat Blue Push Button - Latching, SIRIUS ACT Series, 22mm Cutout, Round

  • RS Stock No. 193-2998
  • Mfr. Part No. 3SU1031-0AA50-0AA0
  • Brand Siemens
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic.
An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.
Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.
As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.
The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.
Note: Single device, please order holders and modules separately.

Illuminated pushbutton, 22 mm, round, plastic with metal front ring, blue, pushbutton, flat, latching, Push-to-release mechanism

Specifications
Attribute Value
Series SIRIUS ACT
Cutout Diameter 22mm
Push Button Colour Blue
Push Button Shape Round
Push Button Actuation Latching
Push Button Style Flat
Push Button Material Plastic
IP Rating IP66, IP67, IP69(IP69K)
Push Button Diameter 29.5mm
Available to back order for despatch 26/10/2020, delivery within 2 working days
Price Each
£ 11.33
(exc. VAT)
£ 13.60
(inc. VAT)
Units
Per unit
1 +
£11.33
Not available for guaranteed pre 9am/10am delivery
