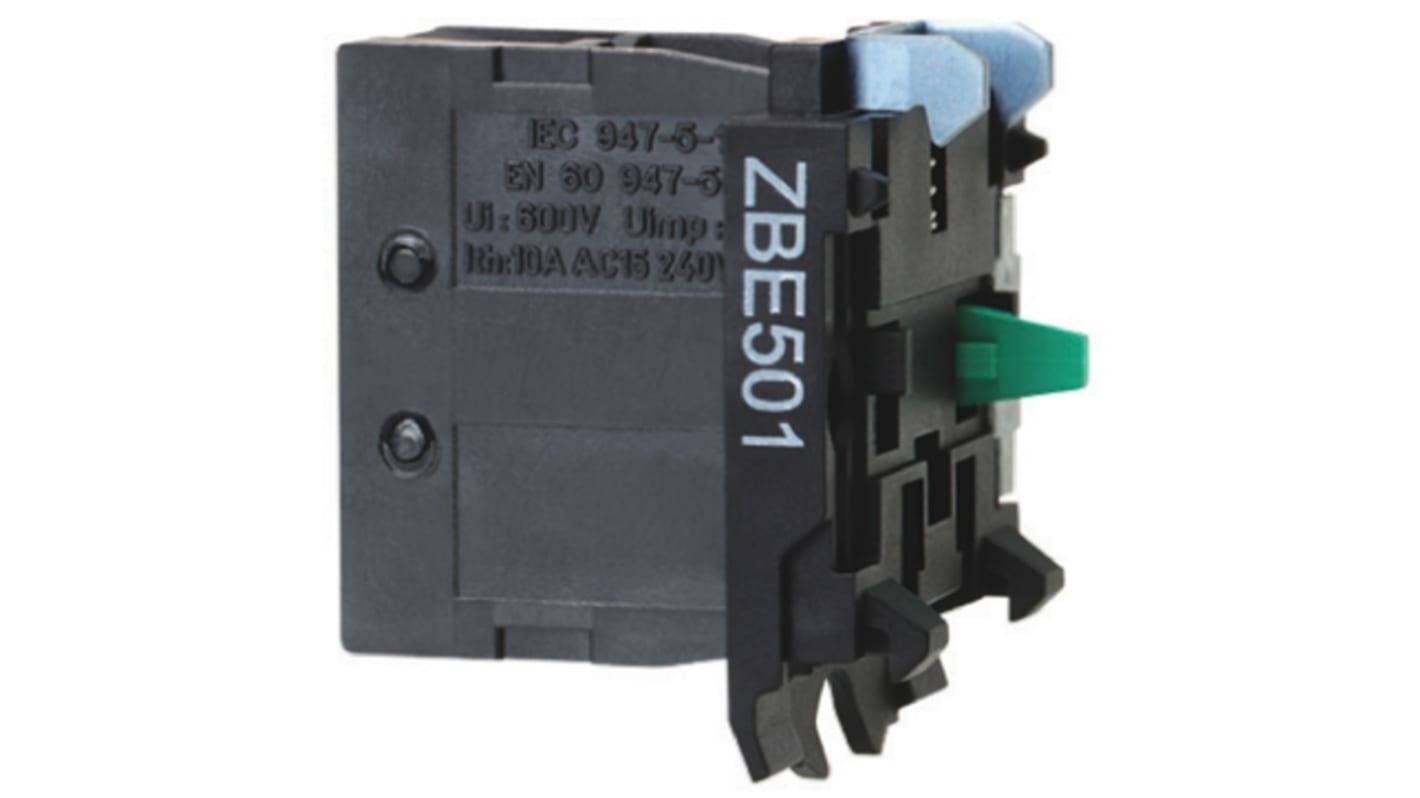

Schneider Electric Harmony Series Contact Block, 30V, 1 NO
- RS Stock No.:
- 724-9561
- Mfr. Part No.:
- ZBE501
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£10.82
(exc. VAT)
£12.98
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 22 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £10.82 |
*price indicative
Our Better World range features products that make it easy for you to make a greener product choice you can trust.
- RS Stock No.:
- 724-9561
- Mfr. Part No.:
- ZBE501
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Block Type | Contact Block | |
| Product Type | Contact Block | |
| Voltage | 30V | |
| Series | Harmony | |
| Contact Configuration | 1 NO | |
| Terminal Type | Screw | |
| Body/Fixing Collar Included | No | |
| Current Rating | 10A | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | IEC 60529, IEC 60068-2-6, IEC 60068-2-27, EN/IEC 60947-5-1, EN 60947-1 | |
| Better World Product | Yes | |
| Better World Claim | Designed for Disassembly | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Block Type Contact Block | ||
Product Type Contact Block | ||
Voltage 30V | ||
Series Harmony | ||
Contact Configuration 1 NO | ||
Terminal Type Screw | ||
Body/Fixing Collar Included No | ||
Current Rating 10A | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals IEC 60529, IEC 60068-2-6, IEC 60068-2-27, EN/IEC 60947-5-1, EN 60947-1 | ||
Better World Product Yes | ||
Better World Claim Designed for Disassembly | ||
RoHS Status: Exempt
- COO (Country of Origin):
- FR
High Power Switching Contact Blocks
Direct assembly on the base plate
Note
It is not possible to fit an additionnal contact block on the back of these contact blocks or to use these contacts with light blocks.
