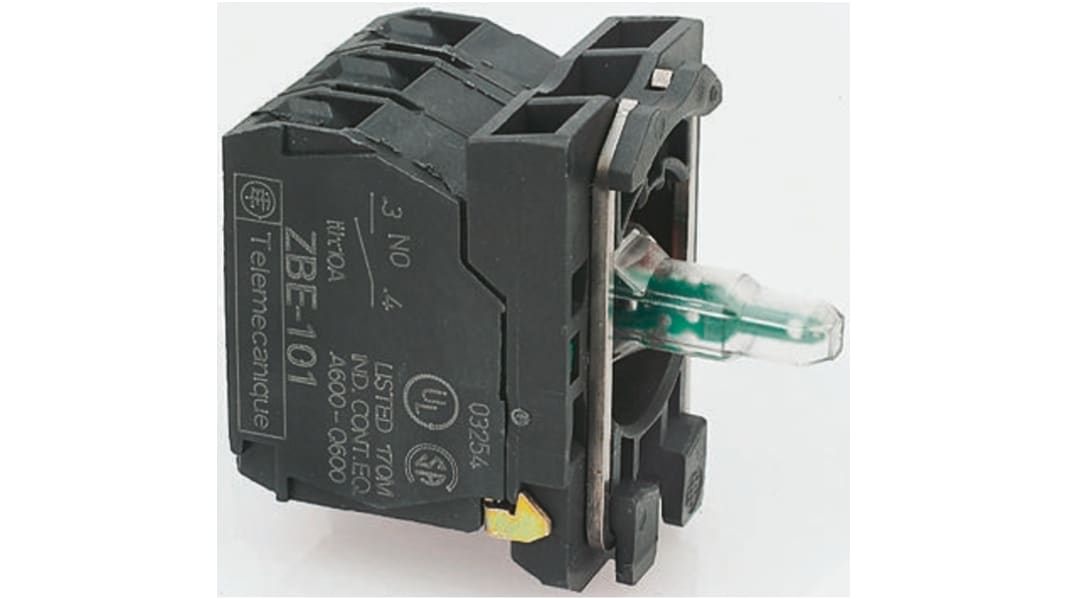

Schneider Electric Harmony Series Contact & Light Block, 1 NO/1 NC
- RS Stock No.:
- 422-8656
- Mfr. Part No.:
- ZB5AW065
- Brand:
- Schneider Electric
Image representative of range
Subtotal (1 unit)*
£18.16
(exc. VAT)
£21.79
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 1 unit(s) shipping from 20 April 2026
- Plus 5 unit(s) shipping from 20 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £18.16 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 422-8656
- Mfr. Part No.:
- ZB5AW065
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Block Type | Contact & Light Block | |
| Product Type | Contact & Light Block | |
| Series | Harmony | |
| Contact Configuration | 1 NO/1 NC | |
| Illumination Type | Incandescent | |
| Terminal Type | Screw | |
| Body/Fixing Collar Included | Yes | |
| Current Rating | 10A | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 70°C | |
| Width | 30mm | |
| Height | 42mm | |
| Length | 32mm | |
| Standards/Approvals | JIS, CSA, UL, IEC, RoHS | |
| Better World Product | Yes | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Block Type Contact & Light Block | ||
Product Type Contact & Light Block | ||
Series Harmony | ||
Contact Configuration 1 NO/1 NC | ||
Illumination Type Incandescent | ||
Terminal Type Screw | ||
Body/Fixing Collar Included Yes | ||
Current Rating 10A | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 70°C | ||
Width 30mm | ||
Height 42mm | ||
Length 32mm | ||
Standards/Approvals JIS, CSA, UL, IEC, RoHS | ||
Better World Product Yes | ||
RoHS Status: Exempt
- COO (Country of Origin):
- FR
Illuminated Head Pushbutton Bodies
Body/contact assemblies and light blocks with intergral LED
Approvals
UL, CSA
Standards
IEC, JIS
