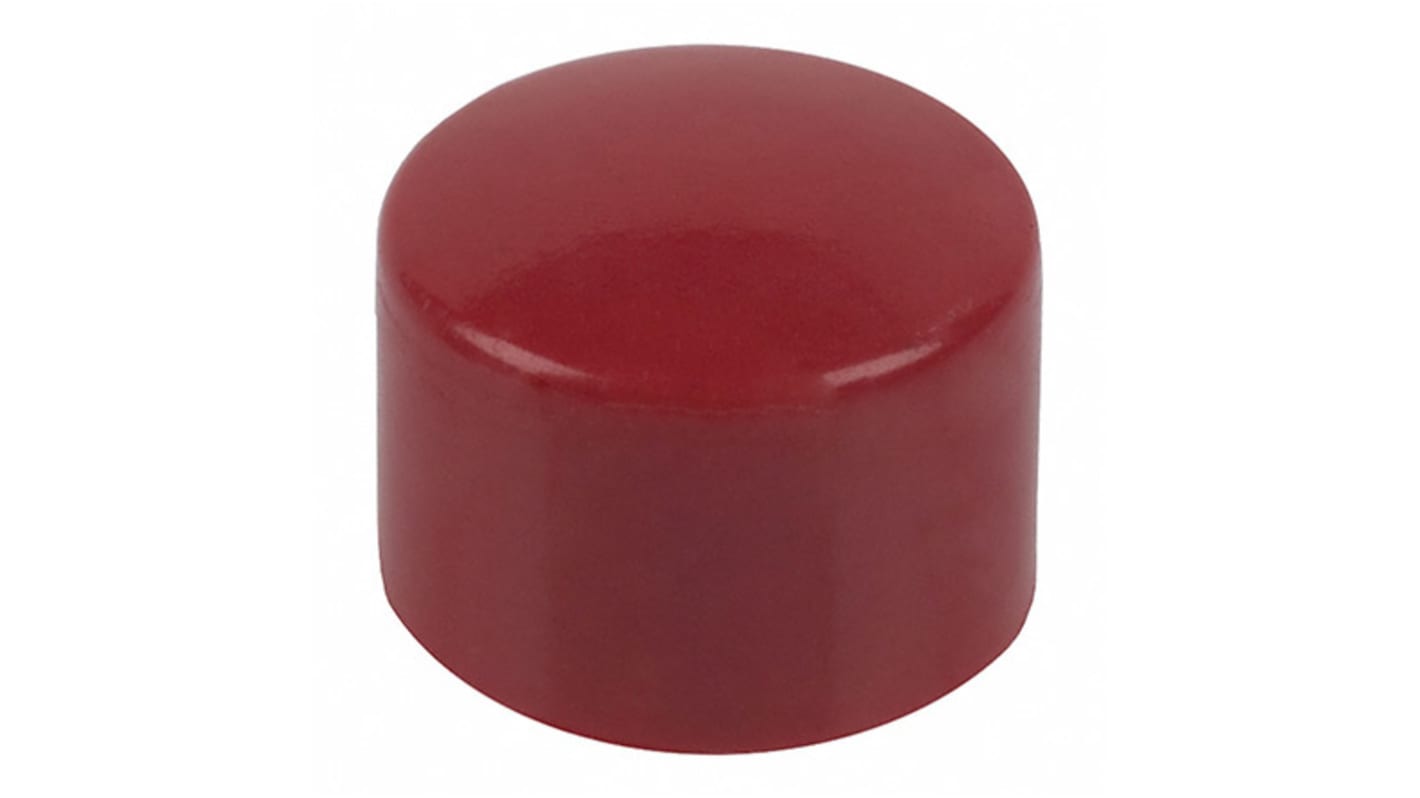

Red Push Button Cap, for use with 30 Series, 39 Series, Push Button Cap

  • RS Stock No. 878-0791
  • Mfr. Part No. 30B1012-5
  • Brand Grayhill
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): US
Product Details

30 Series Butt Contact Pushbutton Switches

The 30 series is a reliable, economical range of pushbuttons with a variety of options to choose from. They are SPST and feature a contact rating of between 1 and 5 amps. Users can select from both normally open or normally closed versions and various actuator styles. These include standard, with sealed bushing and button, with over travel, with positive feel and push-pull. All options are panel mount.

Features:
Large selection
Economical
Sealed bushing and pushbutton options
Operating temperature: -40 to +85 °C
Solder lug terminals

Grayhill Pushbutton Switches

Specifications
Attribute Value
Accessory Type Push Button Cap
For Use With 30 Series, 39 Series
Cap Colour Red
Dimensions 6.4 (Dia.) x 4.8mm
Available to back order for despatch when stock is available
Price Each (In a Pack of 50)
£ 0.288
(exc. VAT)
£ 0.346
(inc. VAT)
Units
Per unit
Per Pack*
50 +
£0.288
£14.40
*price indicative
