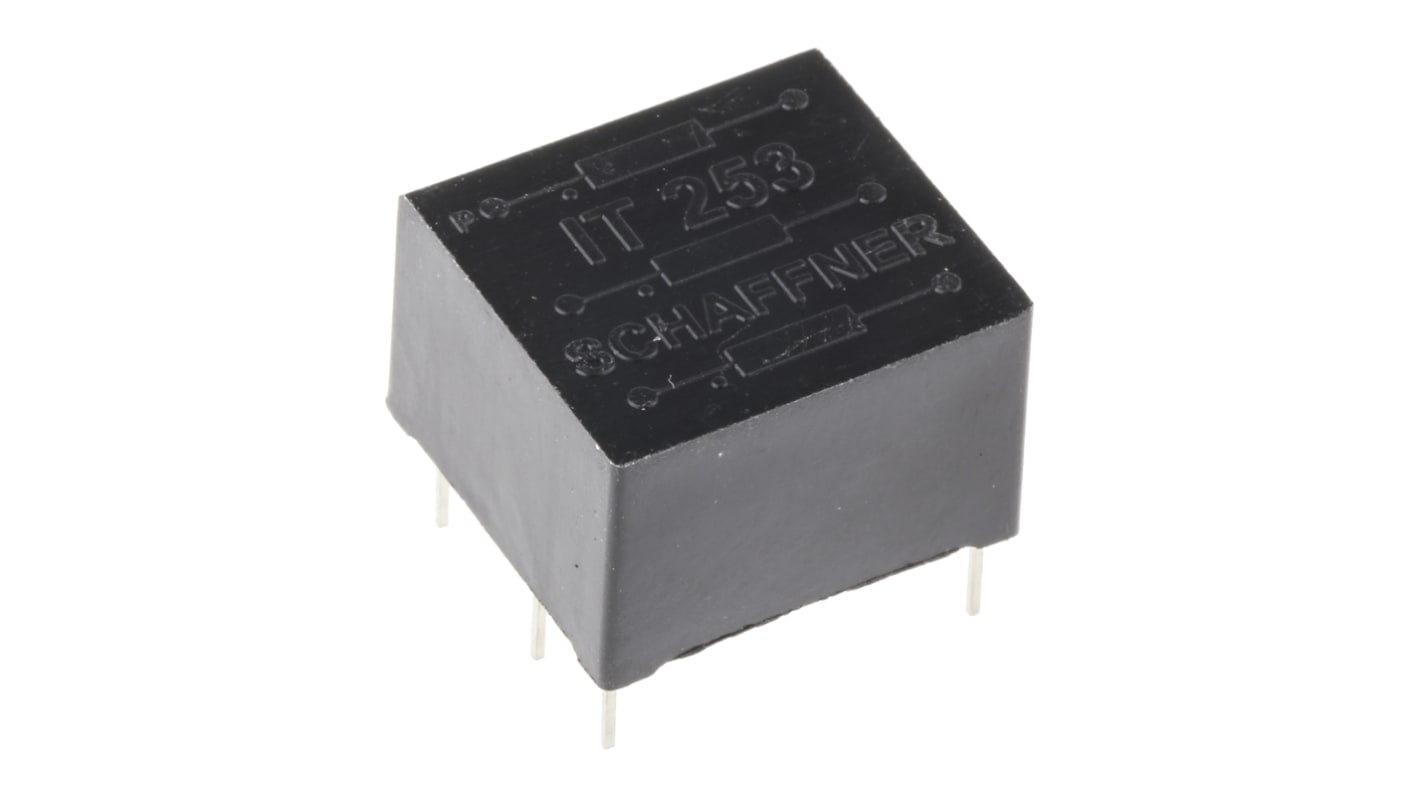

Schaffner Through Hole Pulse Transformer 1:1:1 Turns Ratio, 1.1mH Prim. Inductance
- RS Stock No.:
- 173-6390
- Mfr. Part No.:
- IT253
- Brand:
- Schaffner
Bulk discount available
Subtotal (1 unit)*
£5.80
(exc. VAT)
£6.96
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 25 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 49 | £5.80 |
| 50 - 99 | £3.94 |
| 100 - 199 | £3.69 |
| 200 - 499 | £3.51 |
| 500 + | £3.32 |
*price indicative
- RS Stock No.:
- 173-6390
- Mfr. Part No.:
- IT253
- Brand:
- Schaffner
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schaffner | |
| Primary Inductance | 1.1mH | |
| Turns Ratio | 1:1:1 | |
| Mounting Type | Through Hole | |
| Dimensions | 16.7 x 17.6 x 11.3mm | |
| Depth | 11.3mm | |
| Length | 16.7mm | |
| Width | 17.6mm | |
| Maximum Temperature | +70°C | |
| Primary Voltage Rating | 500V | |
| Minimum Temperature | -25°C | |
Select all | ||
|---|---|---|
Brand Schaffner | ||
Primary Inductance 1.1mH | ||
Turns Ratio 1:1:1 | ||
Mounting Type Through Hole | ||
Dimensions 16.7 x 17.6 x 11.3mm | ||
Depth 11.3mm | ||
Length 16.7mm | ||
Width 17.6mm | ||
Maximum Temperature +70°C | ||
Primary Voltage Rating 500V | ||
Minimum Temperature -25°C | ||
