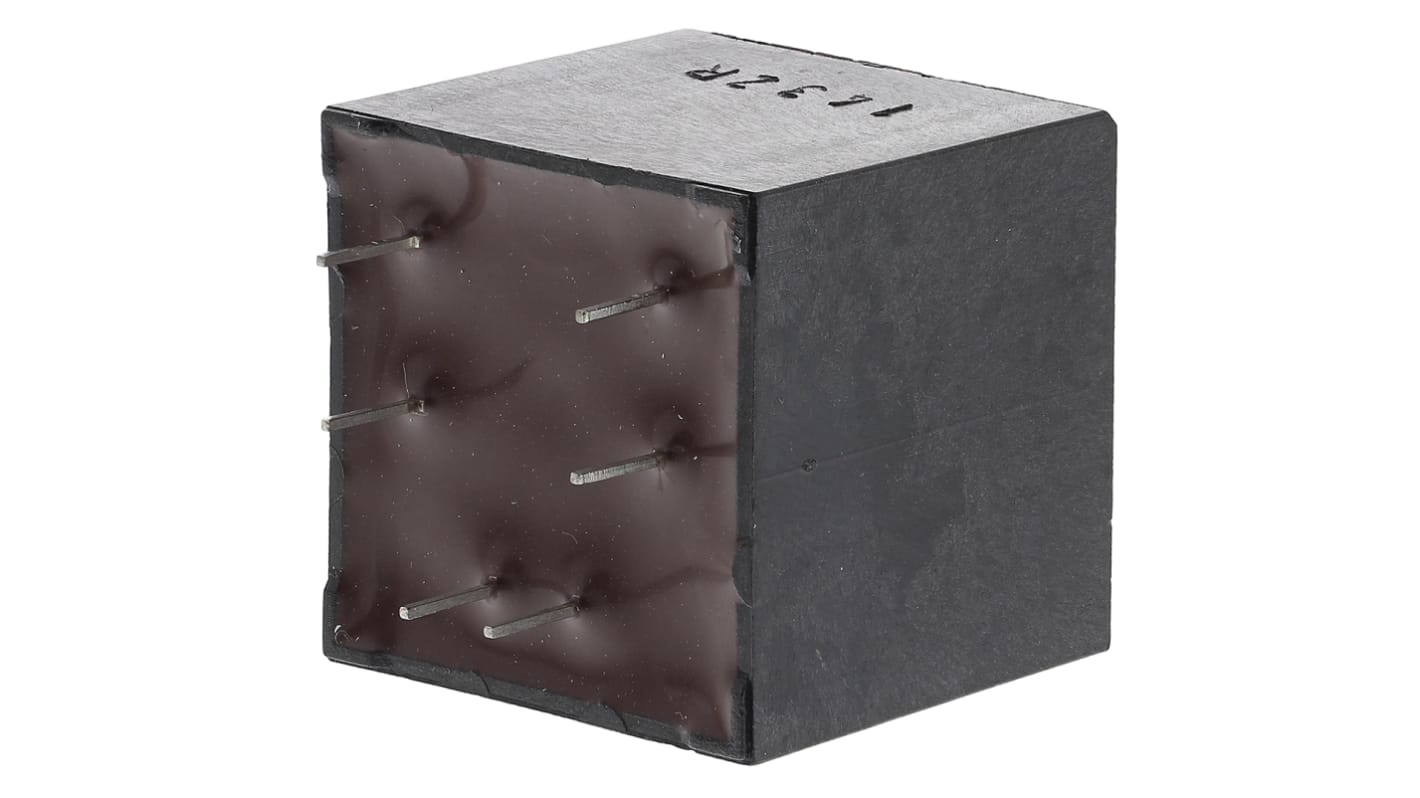

Schaffner Through Hole Pulse Transformer 1:1:1 Turns Ratio, 3mH Prim. Inductance
- RS Stock No.:
- 173-6435
- Mfr. Part No.:
- IT313
- Brand:
- Schaffner
Bulk discount available
Subtotal (1 unit)*
£12.12
(exc. VAT)
£14.54
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 15 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £12.12 |
| 10 - 24 | £8.95 |
| 25 - 49 | £8.27 |
| 50 - 99 | £8.04 |
| 100 + | £7.84 |
*price indicative
- RS Stock No.:
- 173-6435
- Mfr. Part No.:
- IT313
- Brand:
- Schaffner
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schaffner | |
| Primary Inductance | 3mH | |
| Turns Ratio | 1:1:1 | |
| Mounting Type | Through Hole | |
| Dimensions | 25.5 x 25.5 x 25mm | |
| Depth | 25mm | |
| Length | 25.5mm | |
| Width | 25.5mm | |
| Maximum Temperature | +70°C | |
| Primary Voltage Rating | 380V | |
| Minimum Temperature | -25°C | |
Select all | ||
|---|---|---|
Brand Schaffner | ||
Primary Inductance 3mH | ||
Turns Ratio 1:1:1 | ||
Mounting Type Through Hole | ||
Dimensions 25.5 x 25.5 x 25mm | ||
Depth 25mm | ||
Length 25.5mm | ||
Width 25.5mm | ||
Maximum Temperature +70°C | ||
Primary Voltage Rating 380V | ||
Minimum Temperature -25°C | ||
