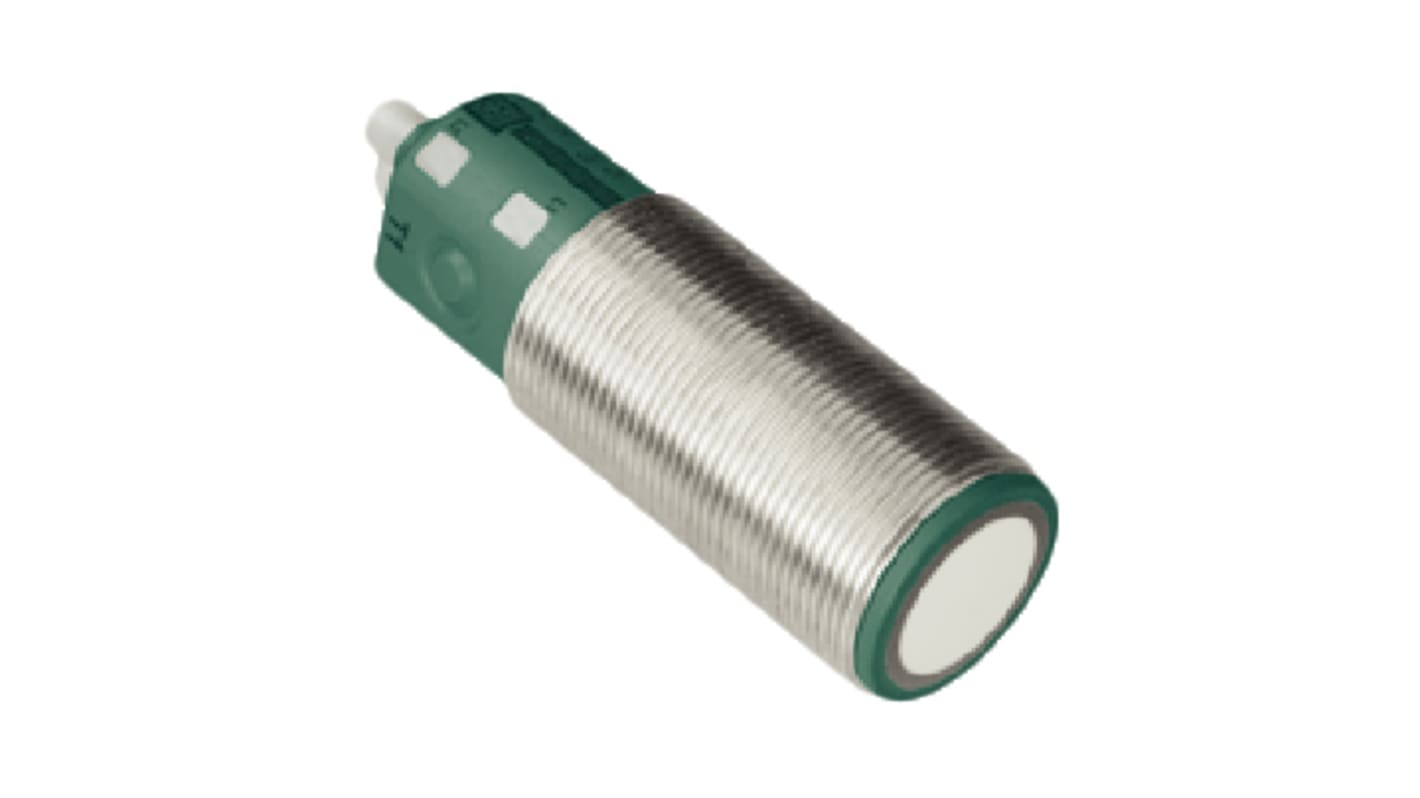

Pepperl + Fuchs Barrel-Style Proximity Sensor, M30 x 1.5, 90 → 2000 mm Detection, Push Pull Output, 10 →
- RS Stock No.:
- 891-9371
- Mfr. Part No.:
- UC2000-30GM-2EP-IO-V15
- Brand:
- Pepperl + Fuchs
Discontinued
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£330.81
(exc. VAT)
£396.97
(inc. VAT)
- RS Stock No.:
- 891-9371
- Mfr. Part No.:
- UC2000-30GM-2EP-IO-V15
- Brand:
- Pepperl + Fuchs
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Pepperl + Fuchs | |
| Body Style | Barrel | |
| Thread Size | M30 x 1.5 | |
| Output Type | Push Pull | |
| Detection Range | 90 → 2000 mm | |
| Terminal Type | 5-Pin M12 Connector | |
| IP Rating | IP67 | |
| Supply Voltage | 10 → 30 V dc | |
| Length | 81mm | |
| Switching Frequency | ≤4 Hz | |
| Maximum DC Voltage | 30V | |
| Housing Material | Polyamide, Stainless Steel, TPU | |
| Maximum Operating Temperature | +70°C | |
| Reverse Polarity Protection | Yes | |
| Short Circuit Overload Protection | Yes | |
| Standards Met | CCC, cCSAus Listed, CE, cULus Listed, EN, IEC, IO-Link | |
| Minimum Operating Temperature | -25°C | |
| Select all | ||
|---|---|---|
Brand Pepperl + Fuchs | ||
Body Style Barrel | ||
Thread Size M30 x 1.5 | ||
Output Type Push Pull | ||
Detection Range 90 → 2000 mm | ||
Terminal Type 5-Pin M12 Connector | ||
IP Rating IP67 | ||
Supply Voltage 10 → 30 V dc | ||
Length 81mm | ||
Switching Frequency ≤4 Hz | ||
Maximum DC Voltage 30V | ||
Housing Material Polyamide, Stainless Steel, TPU | ||
Maximum Operating Temperature +70°C | ||
Reverse Polarity Protection Yes | ||
Short Circuit Overload Protection Yes | ||
Standards Met CCC, cCSAus Listed, CE, cULus Listed, EN, IEC, IO-Link | ||
Minimum Operating Temperature -25°C | ||
- COO (Country of Origin):
- SG
M30 Single & Dual Switch
Pepperl and Fuchs M30 single and dual switches.
Stainless steel body
Adjustable switched outputs
Synchronisation feature
Hysteresis and window modes
Adjustable acoustic power and sensitivity
For detecting smooth substances solids, liquids or powders
Switching current of 200mA and no load current of 50mA
Compatible lead type M12 5-pin Plug-In
Adjustable switched outputs
Synchronisation feature
Hysteresis and window modes
Adjustable acoustic power and sensitivity
For detecting smooth substances solids, liquids or powders
Switching current of 200mA and no load current of 50mA
Compatible lead type M12 5-pin Plug-In
UB and UC Series Barrel Style Switched Output
IP65 protected
-25 to +70°C Operating temperature
Teach-In input
Temperature compensation
Short circuit/Overload protected
LED indicators
Supply voltage 10-30Vdc
N/O and N/C configurable output
-25 to +70°C Operating temperature
Teach-In input
Temperature compensation
Short circuit/Overload protected
LED indicators
Supply voltage 10-30Vdc
N/O and N/C configurable output
