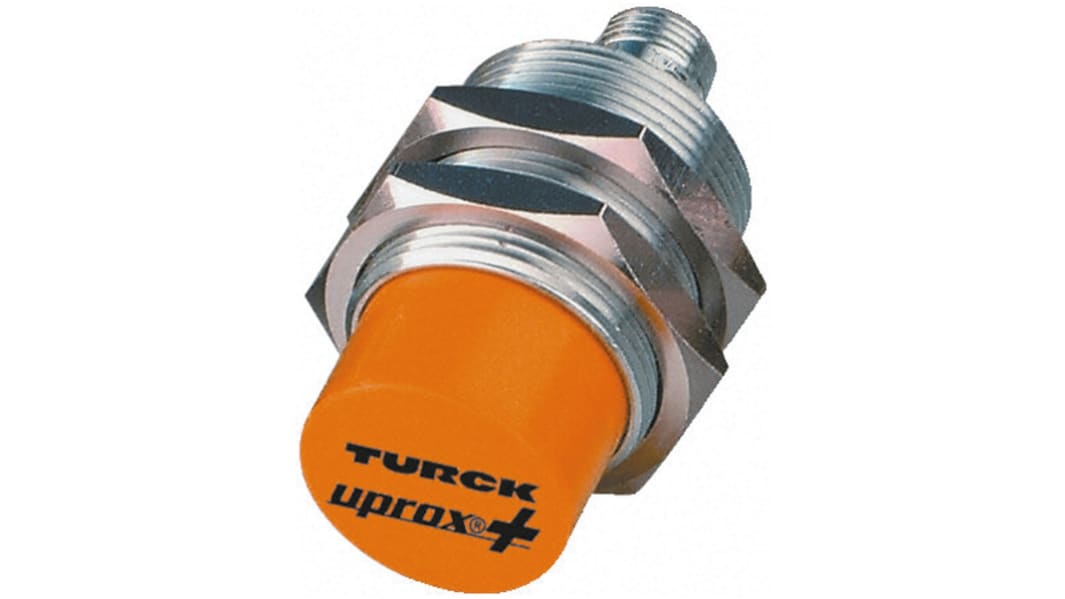

Turck Inductive Barrel-Style Proximity Sensor, M30 x 1.5, 30 mm Detection, NPN Output, 10 → 30 V dc, IP68
- RS Stock No.:
- 837-5967
- Mfr. Part No.:
- NI30U-M30-AN6X-H1141
- Brand:
- Turck
19 In stock - FREE next working day delivery available
2 available from Europe for delivery within 2 working day(s).
Price Each
£61.28
(exc. VAT)
£73.54
(inc. VAT)
Units | Per unit |
|---|---|
| 1 + | £61.28 |
- RS Stock No.:
- 837-5967
- Mfr. Part No.:
- NI30U-M30-AN6X-H1141
- Brand:
- Turck
Technical Reference
Legislation and Compliance
Product Details
NI 30U Series
The NI 30U Series of inductive proximity sensors from Turck Banner that features Uprox+.
Turck Banner Barrel Inductive Proximity Sensors
Inductive sensors are designed for contact-less and wear-free detection. They are the perfect solution for breweries, frozen food, dairies and packaging applications. Resistant to cleaning agents and disinfectants and exceed the protection classes IP68 & IP69K. These sensors are available as standard versions in chrome plated brass barrels or stainless steel housing with LCP front cap and double lip seal for heavy use or sudden changes in temperature. All inductive sensors of the new uprox+ generation operate with highest switching distances, feature an extended temperature range and are easily mounted.Turck inductive proximity sensors are manufactured with shielded coil, designated by “Bi” in the part number, and a non-shielded coil, designated by “Ni” in the part number.
Specifications
Attribute | Value |
|---|---|
| Sensor Technology | Inductive |
| Thread Size | M30 x 1.5 |
| Body Style | Barrel |
| Output Type | NPN |
| Detection Range | 30 mm |
| Terminal Type | 4-Pin M12 Connector |
| IP Rating | IP68 |
| Supply Voltage | 10 → 30 V dc |
| Length | 62mm |
| Maximum DC Voltage | 30V |
| Mounting Type | Non-Flush |
| Switching Current | 200 mA |
| Shielding | Partial |
| Maximum Switching Frequency | 500Hz |
| Maximum Operating Temperature | +85°C |
| Housing Material | Chrome Plated Brass |
| Reverse Polarity Protection | Yes |
| Short Circuit Overload Protection | Yes |
| Minimum Operating Temperature | -30°C |
