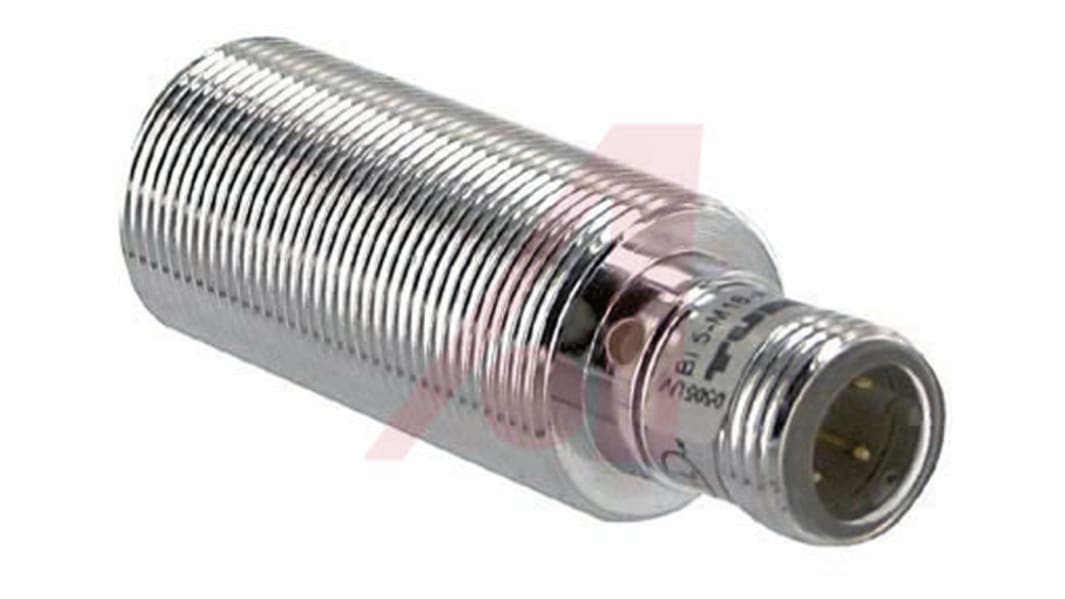

Turck Bi5-M18-AN6X-H1141 Threaded Barrel Inductive Proximity Sensor, M18 NPN BI 5 30V 5 mm 30 V dc 200mA
- RS Stock No.:
- 830-7889
- Mfr. Part No.:
- Bi5-M18-AN6X-H1141
- Brand:
- Turck
Subtotal (1 unit)*
£82.30
(exc. VAT)
£98.76
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 01 January 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £82.30 |
*price indicative
- RS Stock No.:
- 830-7889
- Mfr. Part No.:
- Bi5-M18-AN6X-H1141
- Brand:
- Turck
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Turck | |
| Product Type | Inductive Proximity Sensor | |
| Thread Size | M18 | |
| Body Style | Threaded Barrel | |
| Length | 52mm | |
| IP Rating | IP67 | |
| Mount Type | Flush | |
| Terminal Type | M12 | |
| Width | 52mm | |
| Housing Material | Brass | |
| Maximum Supply Voltage | 30V | |
| Maximum Detection | 5mm | |
| Minimum Operating Temperature | -25°C | |
| Maximum DC Voltage | 30V dc | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | EN, IEC, RoHS | |
| Shielding | Shielded | |
| Series | BI 5 | |
| Maximum Switching Frequency | 500Hz | |
| Switching Current | 200mA | |
| Output Type | NPN | |
| Select all | ||
|---|---|---|
Brand Turck | ||
Product Type Inductive Proximity Sensor | ||
Thread Size M18 | ||
Body Style Threaded Barrel | ||
Length 52mm | ||
IP Rating IP67 | ||
Mount Type Flush | ||
Terminal Type M12 | ||
Width 52mm | ||
Housing Material Brass | ||
Maximum Supply Voltage 30V | ||
Maximum Detection 5mm | ||
Minimum Operating Temperature -25°C | ||
Maximum DC Voltage 30V dc | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals EN, IEC, RoHS | ||
Shielding Shielded | ||
Series BI 5 | ||
Maximum Switching Frequency 500Hz | ||
Switching Current 200mA | ||
Output Type NPN | ||
- COO (Country of Origin):
- CN
BI 5 Series
A series of inductive proximity sensors, barrel type with flush mounting. These sensors are used in various applications such as the food industry, packaging & filling or frozen food. High protection classes for harsh environments. Various output types available.
Turck Banner Barrel Inductive Proximity Sensors
Inductive sensors are designed for contact-less and wear-free detection. They are the perfect solution for breweries, frozen food, dairies and packaging applications. Resistant to cleaning agents and disinfectants and exceed the protection classes IP68 & IP69K. These sensors are available as standard versions in chrome plated brass barrels or stainless steel housing with LCP front cap and double lip seal for heavy use or sudden changes in temperature. All inductive sensors of the new uprox+ generation operate with highest switching distances, feature an extended temperature range and are easily mounted.Turck inductive proximity sensors are manufactured with shielded coil, designated by “Bi” in the part number, and a non-shielded coil, designated by “Ni” in the part number.
