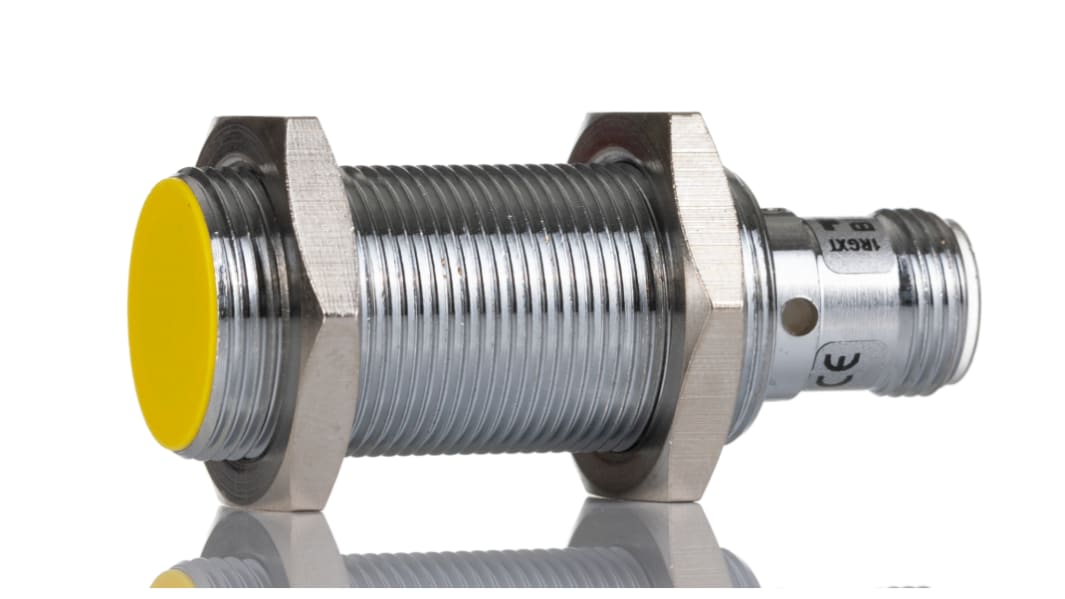

Turck Bi5-M18-AP6X-H1141 Threaded Barrel Inductive Proximity Sensor, M18 PNP BI 5 30V 5 mm 30 V dc 200mA
- RS Stock No.:
- 830-7898
- Mfr. Part No.:
- Bi5-M18-AP6X-H1141
- Brand:
- Turck
Subtotal (1 unit)*
£82.30
(exc. VAT)
£98.76
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £82.30 |
*price indicative
- RS Stock No.:
- 830-7898
- Mfr. Part No.:
- Bi5-M18-AP6X-H1141
- Brand:
- Turck
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Turck | |
| Thread Size | M18 | |
| Product Type | Inductive Proximity Sensor | |
| Body Style | Threaded Barrel | |
| IP Rating | IP67 | |
| Length | 52mm | |
| Terminal Type | M12 | |
| Mount Type | Flush | |
| Width | 52mm | |
| Maximum Supply Voltage | 30V | |
| Housing Material | Brass | |
| Maximum Detection | 5mm | |
| Maximum DC Voltage | 30V dc | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | EN, IEC, RoHS | |
| Switching Current | 200mA | |
| Series | BI 5 | |
| Shielding | Shielded | |
| Maximum Switching Frequency | 500Hz | |
| Output Type | PNP | |
| Select all | ||
|---|---|---|
Brand Turck | ||
Thread Size M18 | ||
Product Type Inductive Proximity Sensor | ||
Body Style Threaded Barrel | ||
IP Rating IP67 | ||
Length 52mm | ||
Terminal Type M12 | ||
Mount Type Flush | ||
Width 52mm | ||
Maximum Supply Voltage 30V | ||
Housing Material Brass | ||
Maximum Detection 5mm | ||
Maximum DC Voltage 30V dc | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals EN, IEC, RoHS | ||
Switching Current 200mA | ||
Series BI 5 | ||
Shielding Shielded | ||
Maximum Switching Frequency 500Hz | ||
Output Type PNP | ||
Turck Proximity Sensor, Short Circuit Protection, Chrome-Plated Brass Housing Material - BI 5 Series - Bi5-M18-AP6X-H1141
For pinpoint object detection in your industrial equipment, switch to this proximity sensor from Turck. It picks up eddy currents that bounce off conductive items, making it a practical pick for detecting metals. Thanks to its voltage rating of 30V DC, this piece of kit fits the bill for low-voltage applications. Integrated short circuit protection is on hand to keep electrical hazards at bay for enhanced safety. As it's designed for flush mounting, this unit stays out of your way during machine operation.
Features & Benefits
• Short time delay of less than 8ms for use in high-speed applications
• Withstands a wide operating temperature range between -25°C and +70°C, making it suitable for use in demanding conditions
• Integrated reverse polarity protection prevents electrical damage
• IP67 rating shows it's fully protected from dust and immersion in 1m of water for up to 30 minutes
Applications
• Transportation industry
• Water treatment plants
• Ship building
How do I mount this sensor?
To mount this sensor, simply screw the threaded end into place on your machine. There's no need for special tools, making installation a doddle.
