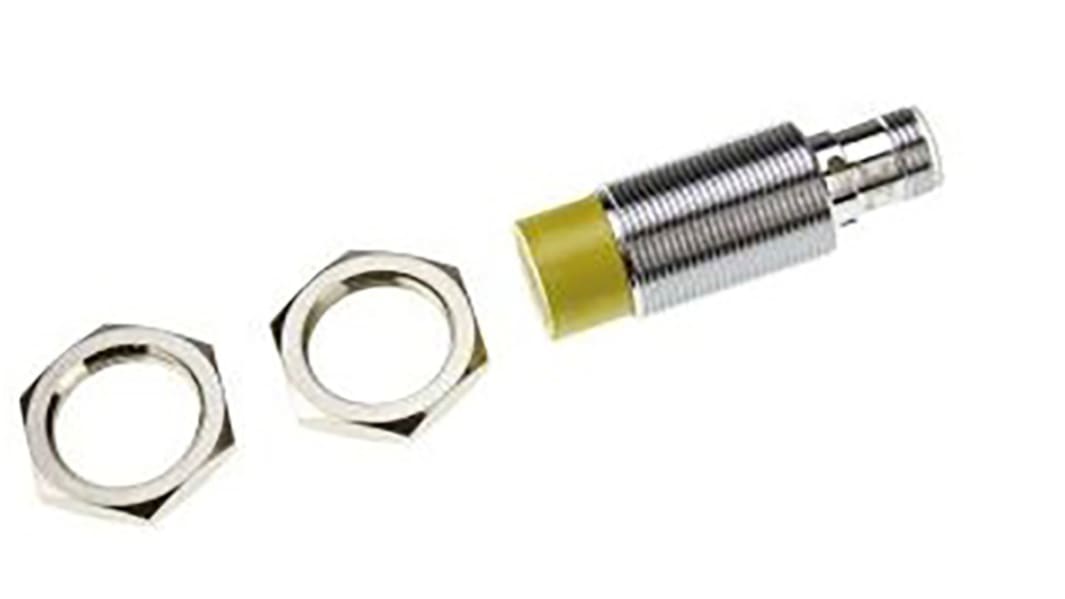

Turck NI15U-M18-AP6X-H1141 Threaded Barrel Inductive Proximity Sensor, M18 x 1 PNP NI 15U 30V 15 mm 30 V dc 200mA
- RS Stock No.:
- 227-220
- Mfr. Part No.:
- NI15U-M18-AP6X-H1141
- Brand:
- Turck
Subtotal (1 unit)*
£107.51
(exc. VAT)
£129.01
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 12 unit(s) ready to ship
- Plus 10 unit(s) shipping from 11 September 2026
- Plus 5 unit(s) shipping from 09 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £107.51 |
*price indicative
- RS Stock No.:
- 227-220
- Mfr. Part No.:
- NI15U-M18-AP6X-H1141
- Brand:
- Turck
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Turck | |
| Thread Size | M18 x 1 | |
| Product Type | Inductive Proximity Sensor | |
| Body Style | Threaded Barrel | |
| Length | 52mm | |
| IP Rating | IP68 | |
| Terminal Type | M12 | |
| Mount Type | Non-Flush | |
| Maximum Supply Voltage | 30V | |
| Housing Material | Chrome Plated Brass | |
| Materials Detected | Metal | |
| Maximum DC Voltage | 30V dc | |
| Minimum Operating Temperature | -30°C | |
| Maximum Detection | 15mm | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | cULus | |
| Shielding | Unshielded | |
| Maximum Switching Frequency | 1.5kHz | |
| Switching Current | 200mA | |
| Output Type | PNP | |
| Series | NI 15U | |
| Select all | ||
|---|---|---|
Brand Turck | ||
Thread Size M18 x 1 | ||
Product Type Inductive Proximity Sensor | ||
Body Style Threaded Barrel | ||
Length 52mm | ||
IP Rating IP68 | ||
Terminal Type M12 | ||
Mount Type Non-Flush | ||
Maximum Supply Voltage 30V | ||
Housing Material Chrome Plated Brass | ||
Materials Detected Metal | ||
Maximum DC Voltage 30V dc | ||
Minimum Operating Temperature -30°C | ||
Maximum Detection 15mm | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals cULus | ||
Shielding Unshielded | ||
Maximum Switching Frequency 1.5kHz | ||
Switching Current 200mA | ||
Output Type PNP | ||
Series NI 15U | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE
Turck Proximity Sensor, 1.5kHz Switching Frequency, Short Circuit Protection - Uprox Series - NI15U-M18-AP6X-H1141
Pick up on rogue elements in your industrial conveyor setup with this proximity sensor from Turck. It uses an electromagnetic field to identify any metal objects and alert you to their presence. A yellow LED lets you know its switching status in a flash for ease of monitoring. As this device works without making contact with an object, there's less chance of wear and machine damage. Its durable chrome-plated brass housing stands up to corrosion and impact. The unit holds its own in challenging environments, thanks to its wide operating temperature range between -30°C and +85°C.
Features & Benefits
• IP68 rating means it's dust-tight and protected against immersion in 1.5m of water for up to 30 minutes
• MTTF of 874 years for an extended service life
• Insulated for protection against electric shock
Applications
• Automated assembly lines
• Food and beverage production
• Medical and pharmaceutical industries
• Electronics manufacturing
Is this proximity sensor protected against short circuits?
Yes, the component features short circuit protection to minimise the risk of electrical damage to your machinery.
