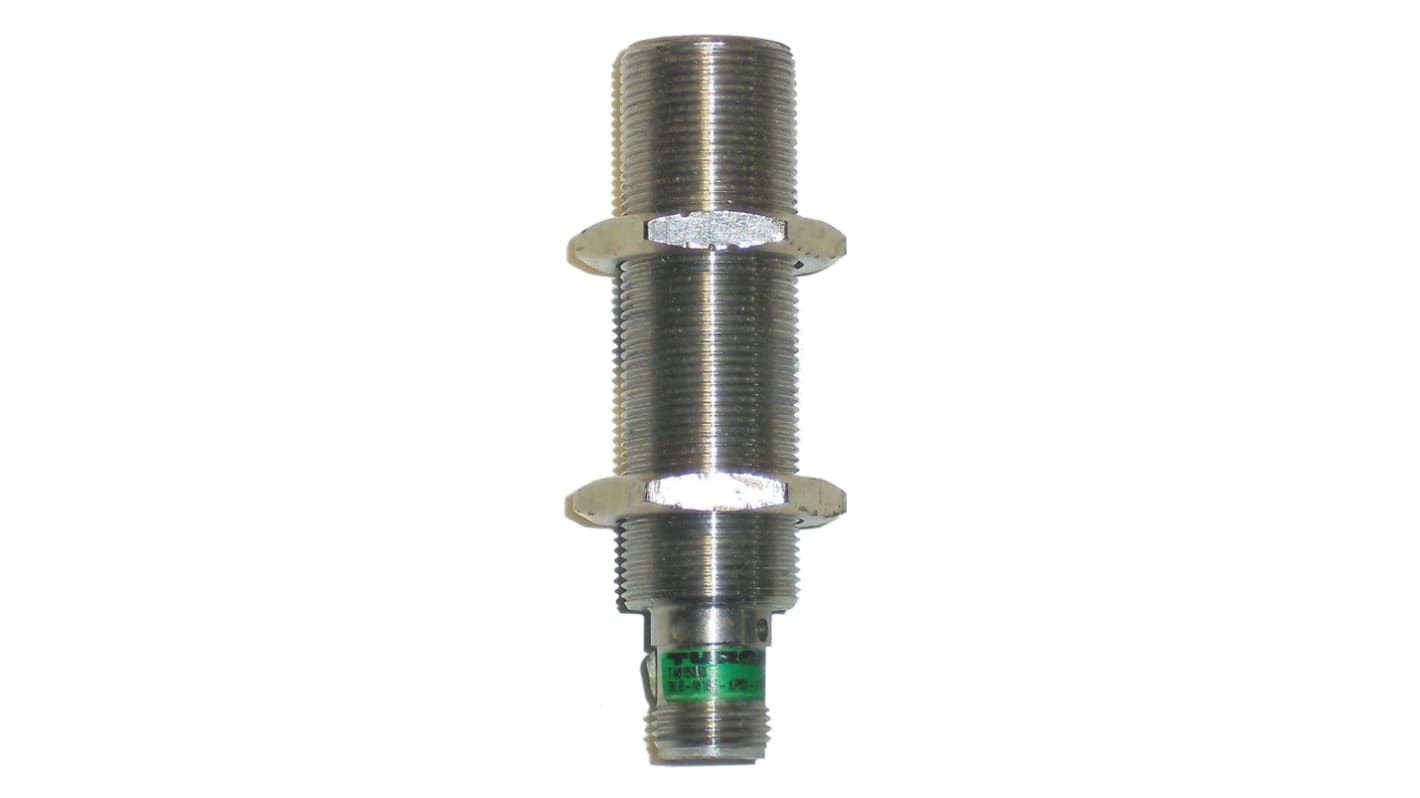

Turck Bi8-M18E-AP6X-H1141 Threaded Barrel Inductive Proximity Sensor, M12 x 1 PNP BI 8 30V 8 mm 30 V dc 200mA
- RS Stock No.:
- 830-8141
- Mfr. Part No.:
- Bi8-M18E-AP6X-H1141
- Brand:
- Turck
Subtotal (1 unit)*
£189.87
(exc. VAT)
£227.84
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 02 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £189.87 |
*price indicative
- RS Stock No.:
- 830-8141
- Mfr. Part No.:
- Bi8-M18E-AP6X-H1141
- Brand:
- Turck
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Turck | |
| Product Type | Inductive Proximity Sensor | |
| Thread Size | M12 x 1 | |
| Body Style | Threaded Barrel | |
| IP Rating | IP67 | |
| Length | 72mm | |
| Terminal Type | 4-Pin | |
| Mount Type | Flush | |
| Housing Material | Chrome Plated Brass | |
| Maximum Supply Voltage | 30V | |
| Materials Detected | Plastic | |
| Maximum Detection | 8mm | |
| Minimum Operating Temperature | -25°C | |
| Maximum DC Voltage | 30V dc | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | RoHS | |
| Shielding | Shielded | |
| Maximum Switching Frequency | 500Hz | |
| Output Type | PNP | |
| Series | BI 8 | |
| Switching Current | 200mA | |
| Select all | ||
|---|---|---|
Brand Turck | ||
Product Type Inductive Proximity Sensor | ||
Thread Size M12 x 1 | ||
Body Style Threaded Barrel | ||
IP Rating IP67 | ||
Length 72mm | ||
Terminal Type 4-Pin | ||
Mount Type Flush | ||
Housing Material Chrome Plated Brass | ||
Maximum Supply Voltage 30V | ||
Materials Detected Plastic | ||
Maximum Detection 8mm | ||
Minimum Operating Temperature -25°C | ||
Maximum DC Voltage 30V dc | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals RoHS | ||
Shielding Shielded | ||
Maximum Switching Frequency 500Hz | ||
Output Type PNP | ||
Series BI 8 | ||
Switching Current 200mA | ||
- COO (Country of Origin):
- US
BI 8 Series
The Professional Turck Banner BI 8 series of barrel style inductive proximity sensors.
Turck Banner Barrel Inductive Proximity Sensors
Inductive sensors are designed for contact-less and wear-free detection. They are the perfect solution for breweries, frozen food, dairies and packaging applications. Resistant to cleaning agents and disinfectants and exceed the protection classes IP68 & IP69K. These sensors are available as standard versions in chrome plated brass barrels or stainless steel housing with LCP front cap and double lip seal for heavy use or sudden changes in temperature. All inductive sensors of the new uprox+ generation operate with highest switching distances, feature an extended temperature range and are easily mounted.Turck inductive proximity sensors are manufactured with shielded coil, designated by “Bi” in the part number, and a non-shielded coil, designated by “Ni” in the part number.
