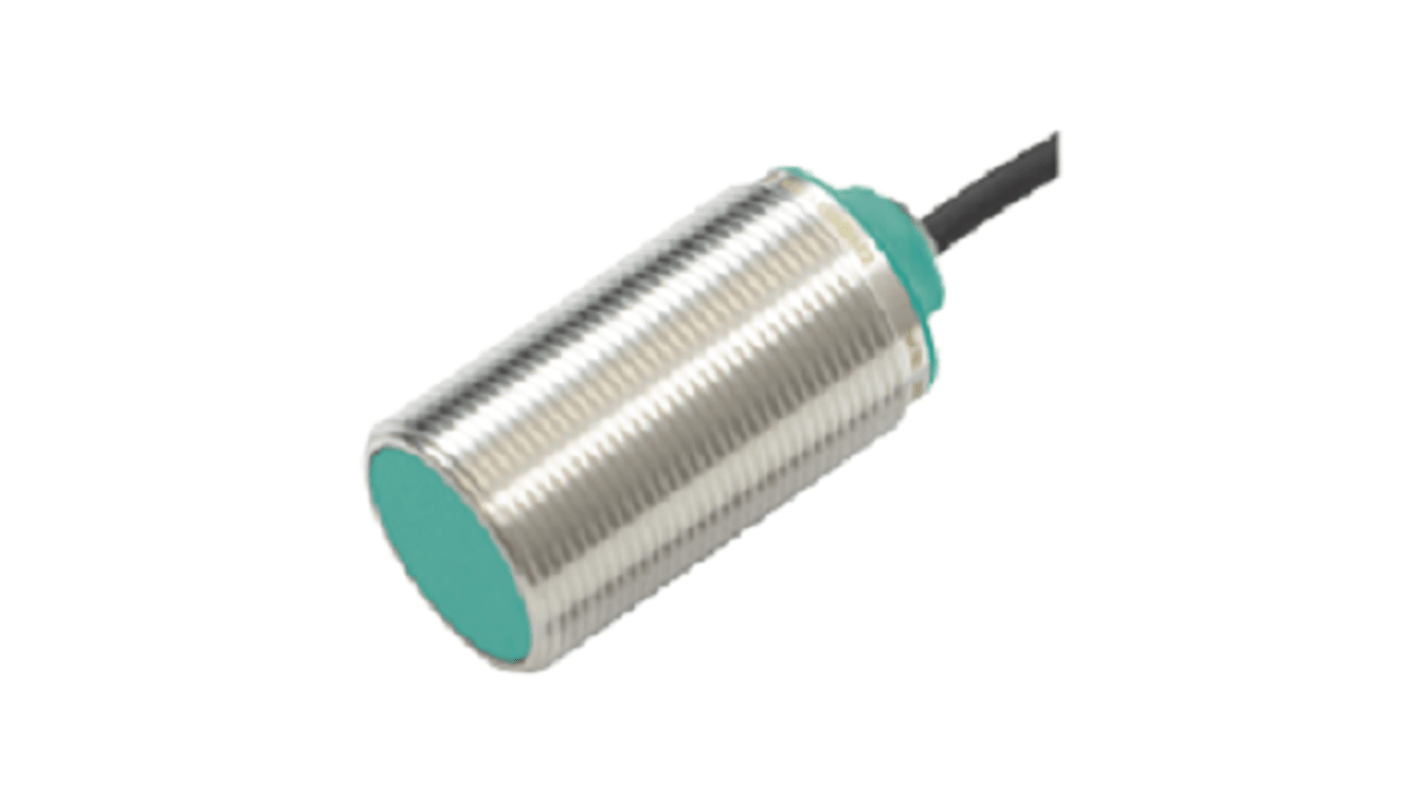

Pepperl + Fuchs Inductive Threaded Barrel Proximity Sensor, M30, 10 mm Detection, NPN NO+NC, 5 → 36 V dc
- RS Stock No.:
- 239-7437
- Mfr. Part No.:
- NBB10-30GM50-A0
- Brand:
- Pepperl + Fuchs
Subtotal (1 unit)*
£73.12
(exc. VAT)
£87.74
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 10 unit(s) ready to ship
- Plus 10 unit(s) shipping from 24 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £73.12 |
*price indicative
- RS Stock No.:
- 239-7437
- Mfr. Part No.:
- NBB10-30GM50-A0
- Brand:
- Pepperl + Fuchs
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Pepperl + Fuchs | |
| Thread Size | M30 | |
| Sensor Technology | Inductive | |
| Body Style | Threaded Barrel | |
| Detection Range | 10 mm | |
| Output Function | NO+NC | |
| Digital Switching Output Type | NPN | |
| Connection Type | M12 | |
| Supply Voltage | 5 → 36 V dc | |
| IP Rating | IP68 | |
| Length | 60.3mm | |
| Mounting Type | Flush | |
| Housing Material | Brass, White Bronze Coated | |
| Maximum DC Voltage | 36V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Switching Frequency | 1.1kHz | |
| Series | NBB | |
| Switching Frequency | 1.1 kHz | |
| Maximum Operating Temperature | +85°C | |
| Switching Current | 200 mA | |
| Shielding | Shielded | |
Select all | ||
|---|---|---|
Brand Pepperl + Fuchs | ||
Thread Size M30 | ||
Sensor Technology Inductive | ||
Body Style Threaded Barrel | ||
Detection Range 10 mm | ||
Output Function NO+NC | ||
Digital Switching Output Type NPN | ||
Connection Type M12 | ||
Supply Voltage 5 → 36 V dc | ||
IP Rating IP68 | ||
Length 60.3mm | ||
Mounting Type Flush | ||
Housing Material Brass, White Bronze Coated | ||
Maximum DC Voltage 36V | ||
Minimum Operating Temperature -40°C | ||
Maximum Switching Frequency 1.1kHz | ||
Series NBB | ||
Switching Frequency 1.1 kHz | ||
Maximum Operating Temperature +85°C | ||
Switching Current 200 mA | ||
Shielding Shielded | ||
