SICK Inductive Threaded Barrel Proximity Sensor, M8, 4 mm Detection, PNP NO, 10 → 30 V dc

RS Stock No.:: 209-3397
Distrelec Article No.:: 137-58-141
Mfr. Part No.:: IME08-04NPSZT0S
Brand:: SICK

SICK Inductive Threaded Barrel Proximity Sensor, M8, 4 mm Detection, PNP NO, 10 → 30 V dc

Subtotal (1 unit)*

£28.19

(exc. VAT)

£33.83

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

Plus 36 unit(s) shipping from 27 October 2025
Plus 67 unit(s) shipping from 27 October 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£28.19

*price indicative

Enhance Your Sensor Setup

Proximity sensors perform best when paired with the right accessories. From mounting brackets to protective covers and connectors, our sensor accessories help you install, secure, and optimise your sensing solution. If you're browsing proximity sensors, don’t forget to explore our accessories range to complete your setup and ensure reliable, long-term performance.

Shop Now

RS Stock No.:: 209-3397
Distrelec Article No.:: 137-58-141
Mfr. Part No.:: IME08-04NPSZT0S
Brand:: SICK

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	SICK
	Thread Size	M8
	Sensor Technology	Inductive
	Body Style	Threaded Barrel
	Detection Range	4 mm
	Digital Switching Output Type	PNP
	Output Function	NO
	Connection Type	M8
	Supply Voltage	10 → 30 V dc
	Length	50mm
	IP Rating	IP67
	Mounting Type	Non-Flush
	Width	8mm
	Housing Material	Brass, Nickel-Plated
	Maximum DC Voltage	30V
	Diameter	8 mm
	Minimum Operating Temperature	-25°C
	Maximum Switching Frequency	4kHz
	Shielding	Unshielded
	Maximum Operating Temperature	+75°C
	Short Circuit Overload Protection	Yes
	Standards Met	CE
	Series	IME
	Switching Frequency	4 kHz
	Switching Current	200 mA
	Reverse Polarity Protection	Yes

	Select all
	Brand SICK
	Thread Size M8
	Sensor Technology Inductive
	Body Style Threaded Barrel
	Detection Range 4 mm
	Digital Switching Output Type PNP
	Output Function NO
	Connection Type M8
	Supply Voltage 10 → 30 V dc
	Length 50mm
	IP Rating IP67
	Mounting Type Non-Flush
	Width 8mm
	Housing Material Brass, Nickel-Plated
	Maximum DC Voltage 30V
	Diameter 8 mm
	Minimum Operating Temperature -25°C
	Maximum Switching Frequency 4kHz
	Shielding Unshielded
	Maximum Operating Temperature +75°C
	Short Circuit Overload Protection Yes
	Standards Met CE
	Series IME
	Switching Frequency 4 kHz
	Switching Current 200 mA
	Reverse Polarity Protection Yes

Datasheet - IME08-04NPSZT0S

COO (Country of Origin):: HU

SICK IME Series Proximity Sensor, 4mm Detection Range, 10 to 30V DC Supply Voltage - IME08-04NPSZT0S

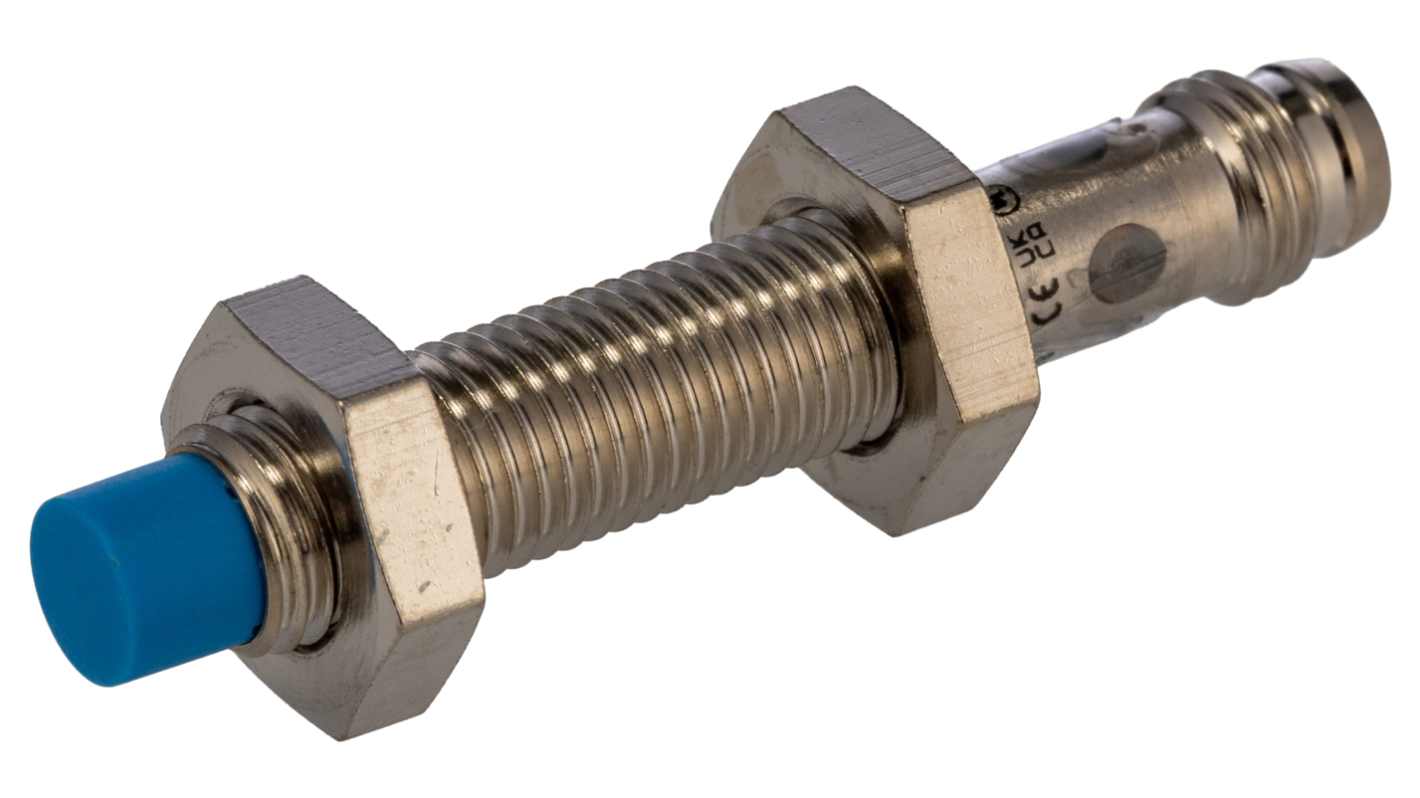

This proximity sensor is an inductive sensor designed for precise detection within a 4mm detection range. Featuring a threaded barrel design, this M8 sensor measures 50mm in length and 8mm in diameter, making it suitable for various applications in automation and electronics. The unit operates on a supply voltage of 10 to 30V DC, ensuring compatibility with a wide range of systems. With an IP67 rating, it is well-suited for challenging environments.

Features & Benefits

• Inductive technology provides reliable non-contact detection
• Threaded barrel design enables simple installation in tight spaces
• PNP output function allows for straightforward integration with control systems
• Robust IP67 rating protects against dust and moisture ingress
• Wide operating temperature range ensures functionality in diverse conditions
• Reverse polarity protection enhances durability and prevents damage

Applications

• Used with automation equipment for precise position detection
• Applied in manufacturing processes requiring non-contact sensing
• Utilised in robotic systems for accurate object detection
• Ideal for monitoring the presence of metallic objects in machinery

What type of connection does this sensor use?

The proximity sensor features an M8 connection type, ensuring a secure and efficient link to your control systems.

How does this sensor perform in extreme temperatures?

It operates effectively within a temperature range from -25 °C to +75 °C, making it suitable for various industrial environments.

What makes it suitable for harsh environments?

The robust brass, nickel-plated housing and IP67 rating provide excellent protection against dust, moisture, and mechanical stress.

Can this sensor handle short-circuit conditions?

Yes, it includes short circuit overload protection, enhancing its reliability and lifespan in demanding applications.

Note

Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.
