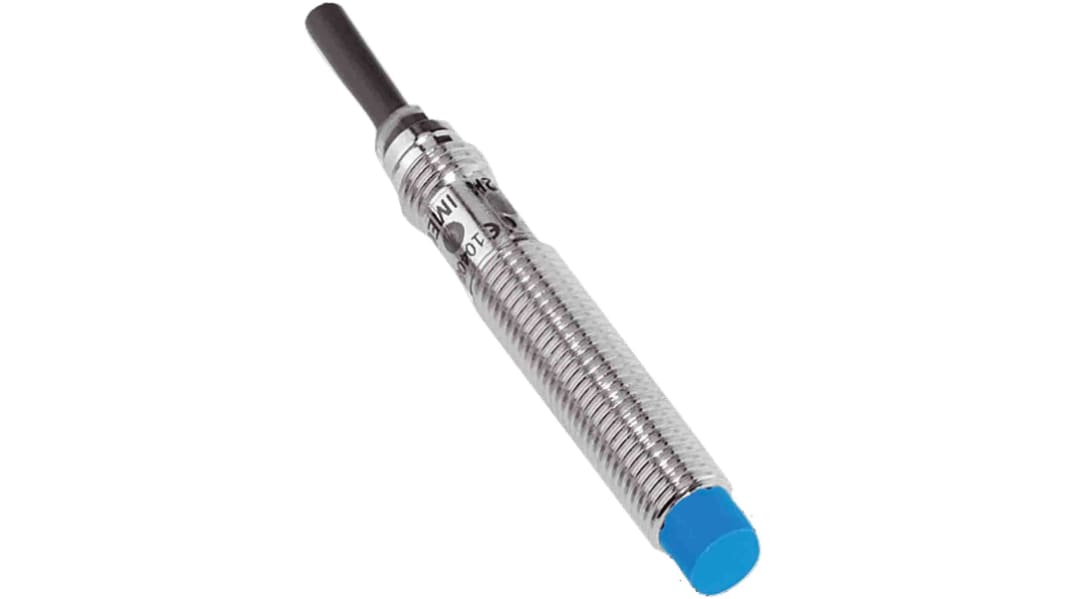

SICK Inductive Threaded Barrel Proximity Sensor, M8, 4 mm Detection, NPN NC, 10 → 30 V dc

RS Stock No.:: 209-3384
Mfr. Part No.:: IME08-04NNOZW2S
Brand:: SICK

SICK Inductive Threaded Barrel Proximity Sensor, M8, 4 mm Detection, NPN NC, 10 → 30 V dc

Subtotal (1 unit)*

£28.19

(exc. VAT)

£33.83

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

5 unit(s) ready to ship
Plus 2 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£28.19

*price indicative

Enhance Your Sensor Setup

Proximity sensors perform best when paired with the right accessories. From mounting brackets to protective covers and connectors, our sensor accessories help you install, secure, and optimise your sensing solution. If you're browsing proximity sensors, don’t forget to explore our accessories range to complete your setup and ensure reliable, long-term performance.

Shop Now

RS Stock No.:: 209-3384
Mfr. Part No.:: IME08-04NNOZW2S
Brand:: SICK

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	SICK
	Thread Size	M8
	Sensor Technology	Inductive
	Detection Range	4 mm
	Body Style	Threaded Barrel
	Digital Switching Output Type	NPN
	Output Function	NC
	Cable Length	2m
	Connection Type	Pre-Cabled
	Supply Voltage	10 → 30 V dc
	IP Rating	IP67
	Length	52mm
	Mounting Type	Non-Flush
	Housing Material	Brass, Nickel-Plated
	Width	8mm
	Maximum DC Voltage	30V
	Diameter	8 mm
	Minimum Operating Temperature	-25°C
	Reverse Polarity Protection	Yes
	Shielding	Unshielded
	Short Circuit Overload Protection	Yes
	Maximum Operating Temperature	+75°C
	Maximum Switching Frequency	4kHz
	Standards Met	CE
	Series	IME
	Switching Current	200 mA
	Switching Frequency	4 kHz

	Select all
	Brand SICK
	Thread Size M8
	Sensor Technology Inductive
	Detection Range 4 mm
	Body Style Threaded Barrel
	Digital Switching Output Type NPN
	Output Function NC
	Cable Length 2m
	Connection Type Pre-Cabled
	Supply Voltage 10 → 30 V dc
	IP Rating IP67
	Length 52mm
	Mounting Type Non-Flush
	Housing Material Brass, Nickel-Plated
	Width 8mm
	Maximum DC Voltage 30V
	Diameter 8 mm
	Minimum Operating Temperature -25°C
	Reverse Polarity Protection Yes
	Shielding Unshielded
	Short Circuit Overload Protection Yes
	Maximum Operating Temperature +75°C
	Maximum Switching Frequency 4kHz
	Standards Met CE
	Series IME
	Switching Current 200 mA
	Switching Frequency 4 kHz

Datasheet - IME08-04NNOZW2S

COO (Country of Origin):: HU

SICK IME Series Proximity Sensor, 4mm Detection Range, 2m Cable Length - IME08-04NNOZW2S

This inductive proximity sensor is designed for reliable detection in various industrial environments. With an M8 threaded barrel, it features a robust brass housing that is nickel-plated for enhanced durability. This sensor can detect objects at a range of 4mm, making it suitable for applications requiring precision in automation. It operates within a voltage range of 10 to 30V DC and boasts an IP67 rating, ensuring protection against dust and water ingress.

Features & Benefits

• Designed for use in demanding industrial environments
• Non-flush mounting allows for versatile installation options
• NPN output type supports easy integration into automation systems
• 4 kHz maximum switching frequency for high-performance applications
• Reverse polarity and short-circuit overload protection enhance safety
• Wide operating temperature range from -25 °C to +75 °C

Applications

• Used for precise object detection in machinery
• Ideal for automation tasks in manufacturing lines
• Suitable for assembly systems requiring reliable feedback
• Effective in packaging equipment to enhance efficiency
• Utilised in quality control for accurate monitoring

What is the significance of the IP67 rating?

The IP67 rating indicates that the sensor is dust-tight and can withstand immersion in water up to 1metre for a duration of 30minutes, making it ideal for both indoor and outdoor use in harsh conditions.

What benefits does the NPN output type provide for automation systems?

The NPN output type allows the sensor to provide a sinking output, meaning it can easily interface with PLCs and other control systems, improving the overall responsiveness and reliability of automation processes.

How do the reverse polarity and short circuit overload protection features enhance safety?

These protective features prevent damage to the sensor in the event of incorrect wiring or sudden short circuits, ensuring the longevity of the device and safeguarding any connected equipment from potential faults.

What role does the detection range play in this sensor's functionality?

A detection range of 4mm allows the sensor to accurately identify objects without requiring significant physical space, making it ideal for applications where every millimetre counts in tight assembly operations.

Note

Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.
