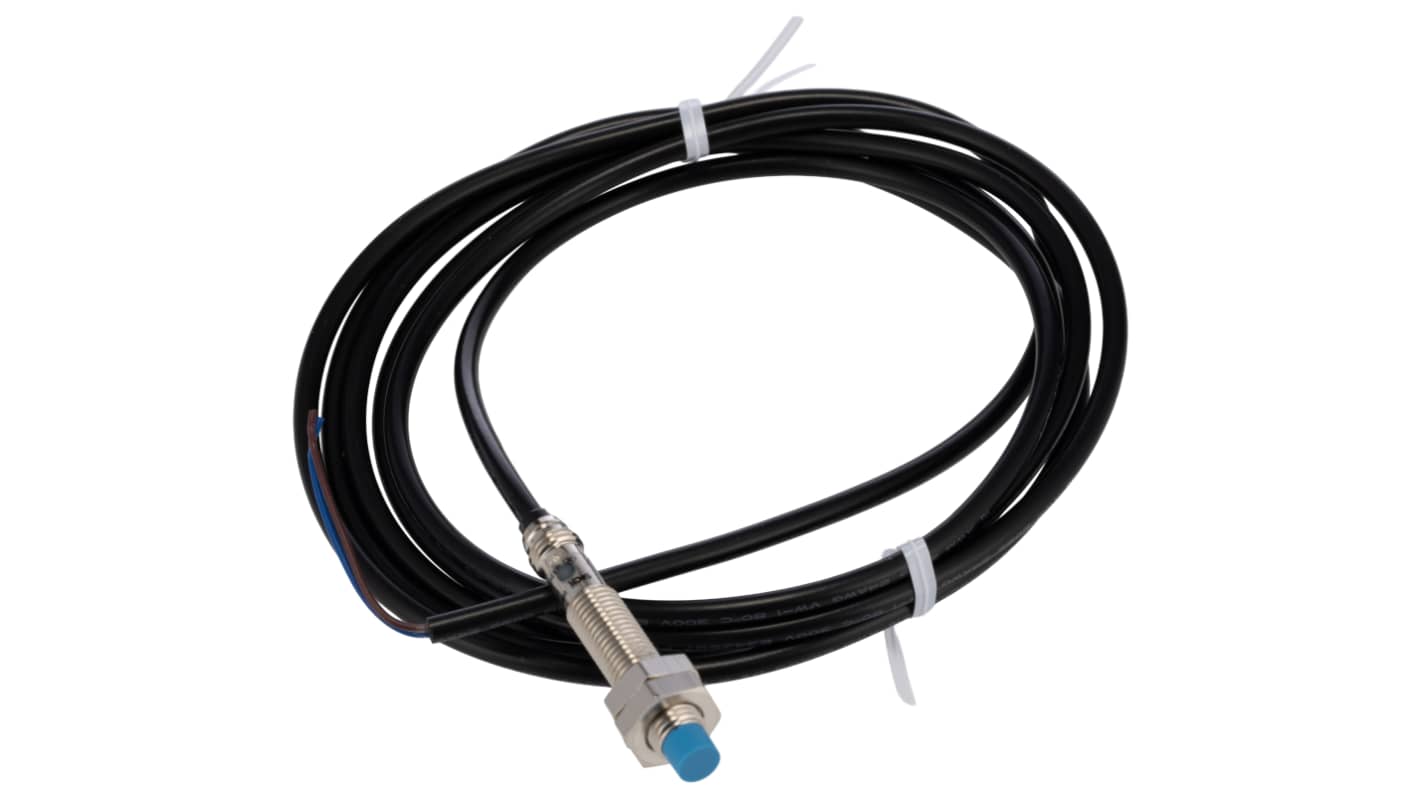

SICK Inductive Threaded Barrel Proximity Sensor, M8, 4 mm Detection, 2-Wire NO, 10 → 30 V dc

RS Stock No.:: 209-3381
Mfr. Part No.:: IME08-04NDSZY2S
Brand:: SICK

SICK Inductive Threaded Barrel Proximity Sensor, M8, 4 mm Detection, 2-Wire NO, 10 → 30 V dc

Subtotal (1 unit)*

£33.73

(exc. VAT)

£40.48

(inc. VAT)

FREE delivery for orders over £50.00

Temporarily out of stock

15 unit(s) shipping from 29 October 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£33.73

*price indicative

Enhance Your Sensor Setup

Proximity sensors perform best when paired with the right accessories. From mounting brackets to protective covers and connectors, our sensor accessories help you install, secure, and optimise your sensing solution. If you're browsing proximity sensors, don’t forget to explore our accessories range to complete your setup and ensure reliable, long-term performance.

Shop Now

RS Stock No.:: 209-3381
Mfr. Part No.:: IME08-04NDSZY2S
Brand:: SICK

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	SICK
	Thread Size	M8
	Sensor Technology	Inductive
	Detection Range	4 mm
	Body Style	Threaded Barrel
	Output Function	NO
	Digital Switching Output Type	2-Wire
	Connection Type	Pre-Cabled
	Cable Length	2m
	Supply Voltage	10 → 30 V dc
	IP Rating	IP67
	Length	52mm
	Mounting Type	Non-Flush
	Housing Material	Brass, Nickel-Plated
	Width	8mm
	Maximum DC Voltage	30V
	Diameter	8 mm
	Minimum Operating Temperature	-25°C
	Series	IME
	Switching Current	100 mA
	Switching Frequency	4 kHz
	Reverse Polarity Protection	Yes
	Standards Met	CE
	Maximum Operating Temperature	+75°C
	Short Circuit Overload Protection	Yes
	Shielding	Unshielded
	Maximum Switching Frequency	4kHz

	Select all
	Brand SICK
	Thread Size M8
	Sensor Technology Inductive
	Detection Range 4 mm
	Body Style Threaded Barrel
	Output Function NO
	Digital Switching Output Type 2-Wire
	Connection Type Pre-Cabled
	Cable Length 2m
	Supply Voltage 10 → 30 V dc
	IP Rating IP67
	Length 52mm
	Mounting Type Non-Flush
	Housing Material Brass, Nickel-Plated
	Width 8mm
	Maximum DC Voltage 30V
	Diameter 8 mm
	Minimum Operating Temperature -25°C
	Series IME
	Switching Current 100 mA
	Switching Frequency 4 kHz
	Reverse Polarity Protection Yes
	Standards Met CE
	Maximum Operating Temperature +75°C
	Short Circuit Overload Protection Yes
	Shielding Unshielded
	Maximum Switching Frequency 4kHz

Datasheet - IME08-04NDSZY2S

COO (Country of Origin):: MY

SICK IME Series Proximity Sensor, 4mm Detection Range, M8 Thread size - IME08-04NDSZY2S

This inductive proximity sensor is designed for a range of industrial applications, featuring a robust M8 threaded barrel construction. With a detection range of up to 4mm, the brass nickel-plated sensor operates efficiently between supply voltages of 10 to 30V DC. It is compact, measuring 52mm in length and 8mm in diameter, and offers reliable performance under diverse environmental conditions, boasting an IP67 rating for water and dust resistance.

Features & Benefits

• Inductive detection technology for reliable performance
• 2-wire connection ensures simplicity and efficiency
• IP67 rating guarantees protection against moisture and dust
• Reverse polarity protection enhances durability and functionality
• Non-flush mount design allows for easy integration into various applications
• Maximum switching frequency of 4 kHz supports dynamic operations

Applications

• Implemented in automated machinery for precise position sensing
• Utilised in assembly lines to monitor object presence
• Integrated into conveyor systems for efficient item tracking
• Suitable for detecting metallic objects in manufacturing processes

What operating temperature range can this sensor withstand?

The sensor operates efficiently in temperatures ranging from -25 °C to +75 °C, making it suitable for various environments.

How does the reverse polarity protection feature benefit users?

This feature protects the sensor from damage due to incorrect wiring, ensuring longevity and reducing maintenance costs.

What type of load can be connected to this sensor?

It can handle a maximum switching current of 100mA, making it suitable for a variety of load types in industrial applications.

Is this sensor suitable for outdoor use?

Yes, with an IP67 rating, it is designed to withstand outdoor conditions by preventing ingress of dust and water.

Note

Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.
