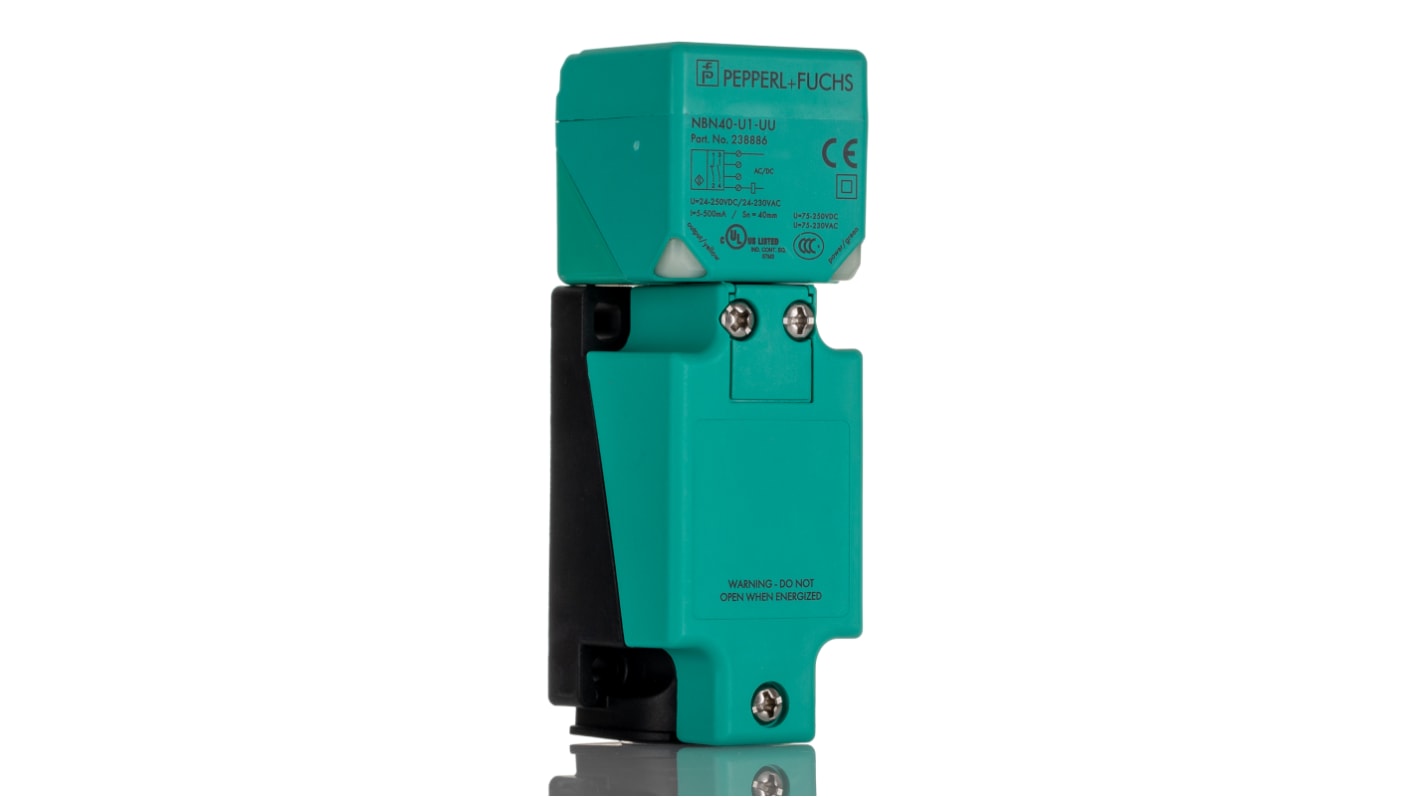

Pepperl + Fuchs Inductive Block Proximity Sensor, 40 mm Detection, 2-Wire NO/NC, 20 → 253 V ac, 20 → 300
- RS Stock No.:
- 124-0307
- Distrelec Article No.:
- 303-96-893
- Mfr. Part No.:
- NBN40-U1-UU
- Brand:
- Pepperl + Fuchs
Subtotal (1 unit)*
£181.19
(exc. VAT)
£217.43
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 38 unit(s) shipping from 01 December 2025
- Plus 4 unit(s) shipping from 01 December 2025
- Plus 13 unit(s) shipping from 02 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £181.19 |
*price indicative
- RS Stock No.:
- 124-0307
- Distrelec Article No.:
- 303-96-893
- Mfr. Part No.:
- NBN40-U1-UU
- Brand:
- Pepperl + Fuchs
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Pepperl + Fuchs | |
| Sensor Technology | Inductive | |
| Body Style | Block | |
| Detection Range | 40 mm | |
| Output Function | NO/NC | |
| Digital Switching Output Type | 2-Wire | |
| Connection Type | Screw Terminal | |
| Supply Voltage | 20 → 253 V ac, 20 → 300 V dc | |
| Length | 118mm | |
| IP Rating | IP67 | |
| Mounting Type | Non-Flush | |
| Housing Material | Metal, Nylon 66 | |
| Width | 40mm | |
| Maximum DC Voltage | 300V | |
| Minimum Operating Temperature | -25°C | |
| Depth | 40mm | |
| Reverse Polarity Protection | Yes | |
| Short Circuit Overload Protection | Yes | |
| Maximum Operating Temperature | +85°C | |
| Switching Current | 500 mA | |
| Shielding | Unshielded | |
| Switching Frequency | 100 Hz | |
| Maximum Switching Frequency | 100Hz | |
| Maximum AC Voltage | 253V | |
| Standards Met | CCC, CE, cULus, EN 60947-5-2, IEC 60947-5-2 | |
| Select all | ||
|---|---|---|
Brand Pepperl + Fuchs | ||
Sensor Technology Inductive | ||
Body Style Block | ||
Detection Range 40 mm | ||
Output Function NO/NC | ||
Digital Switching Output Type 2-Wire | ||
Connection Type Screw Terminal | ||
Supply Voltage 20 → 253 V ac, 20 → 300 V dc | ||
Length 118mm | ||
IP Rating IP67 | ||
Mounting Type Non-Flush | ||
Housing Material Metal, Nylon 66 | ||
Width 40mm | ||
Maximum DC Voltage 300V | ||
Minimum Operating Temperature -25°C | ||
Depth 40mm | ||
Reverse Polarity Protection Yes | ||
Short Circuit Overload Protection Yes | ||
Maximum Operating Temperature +85°C | ||
Switching Current 500 mA | ||
Shielding Unshielded | ||
Switching Frequency 100 Hz | ||
Maximum Switching Frequency 100Hz | ||
Maximum AC Voltage 253V | ||
Standards Met CCC, CE, cULus, EN 60947-5-2, IEC 60947-5-2 | ||
- COO (Country of Origin):
- CZ
’Varikont’ Switches
The Varikont series of inductive proximity sensors are highly versatile due to their compact dimensions, easy installation via standard terminal base and ease of maintenance due to the 4 LEDs visible from all angles, making the possible applications endless.
Features and benefits
DIN 'limit switch' style PBT housing and sensing face
Connections via terminal compartment
Keyway to ensure correct replacement
Sensor head multi-positional relative to base
LED status display
Operating temperature range –25 → +70°C
Connections via terminal compartment
Keyway to ensure correct replacement
Sensor head multi-positional relative to base
LED status display
Operating temperature range –25 → +70°C
Block and Limit Switch Style
All dc switches in this range have reverse polarity and short circuit protection. Embeddable versions can be flush mounted in metal.
