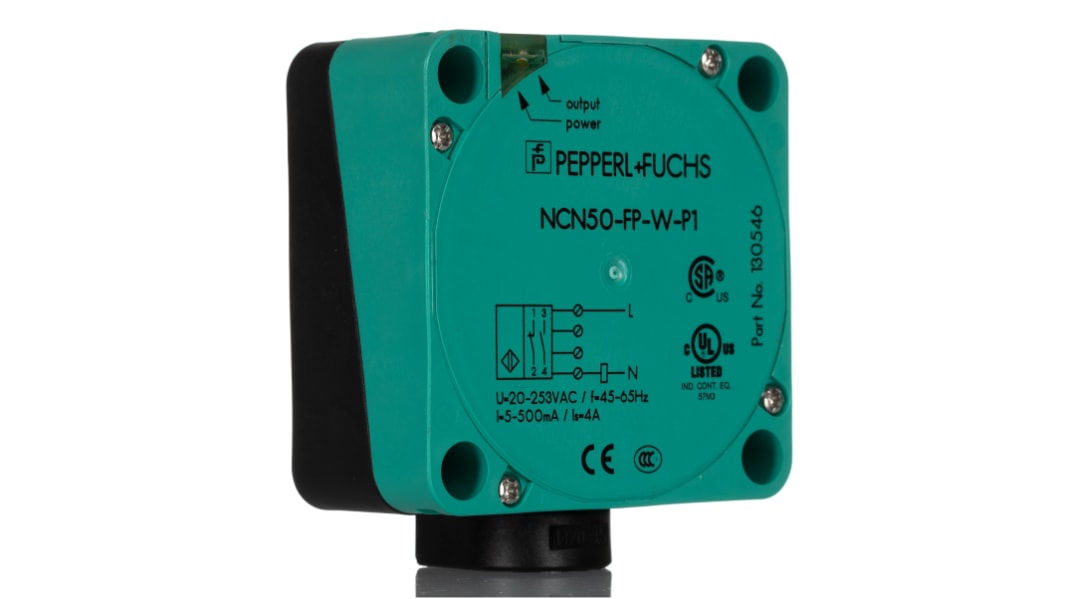

Pepperl + Fuchs NCN50-FP-W-P1 Block Inductive Proximity Sensor, M20 x 1.5 2-Wire Comfort 253V 50 mm 253 V ac 5mA, 500 mA
- RS Stock No.:
- 257-2541
- Mfr. Part No.:
- NCN50-FP-W-P1
- Brand:
- Pepperl + Fuchs
Subtotal (1 unit)*
£345.72
(exc. VAT)
£414.86
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 9 unit(s) ready to ship
- Plus 9 unit(s) shipping from 24 July 2026
- Plus 9 unit(s) shipping from 11 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £345.72 |
*price indicative
- RS Stock No.:
- 257-2541
- Mfr. Part No.:
- NCN50-FP-W-P1
- Brand:
- Pepperl + Fuchs
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Pepperl + Fuchs | |
| Thread Size | M20 x 1.5 | |
| Product Type | Inductive Proximity Sensor | |
| Body Style | Block | |
| Length | 80mm | |
| IP Rating | IP68 | |
| Mount Type | Flush | |
| Terminal Type | Terminal | |
| Housing Material | Polybutylene Terephthalate | |
| Width | 80mm | |
| Maximum Supply Voltage | 253V | |
| Maximum Detection | 50mm | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | EN 60947-5-2:2007, IEC 60947-5-2:2007 | |
| Series | Comfort | |
| Shielding | Shielded | |
| Switching Current | 5, 500mA | |
| Output Type | 2-Wire | |
| Maximum Switching Frequency | 20Hz | |
| Maximum AC Voltage | 253V ac | |
| Depth | 40mm | |
| Select all | ||
|---|---|---|
Brand Pepperl + Fuchs | ||
Thread Size M20 x 1.5 | ||
Product Type Inductive Proximity Sensor | ||
Body Style Block | ||
Length 80mm | ||
IP Rating IP68 | ||
Mount Type Flush | ||
Terminal Type Terminal | ||
Housing Material Polybutylene Terephthalate | ||
Width 80mm | ||
Maximum Supply Voltage 253V | ||
Maximum Detection 50mm | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals EN 60947-5-2:2007, IEC 60947-5-2:2007 | ||
Series Comfort | ||
Shielding Shielded | ||
Switching Current 5, 500mA | ||
Output Type 2-Wire | ||
Maximum Switching Frequency 20Hz | ||
Maximum AC Voltage 253V ac | ||
Depth 40mm | ||
RoHS Status: Exempt
Block Style Switches
PBT housing and sensing face
3 or 4 wire versions available
50 mm embeddable
Operating temperature range –25 → +70°C
Connections via terminal compartment
LED status display
Block and Limit Switch Style
All dc switches in this range have reverse polarity and short circuit protection. Embeddable versions can be flush mounted in metal.
